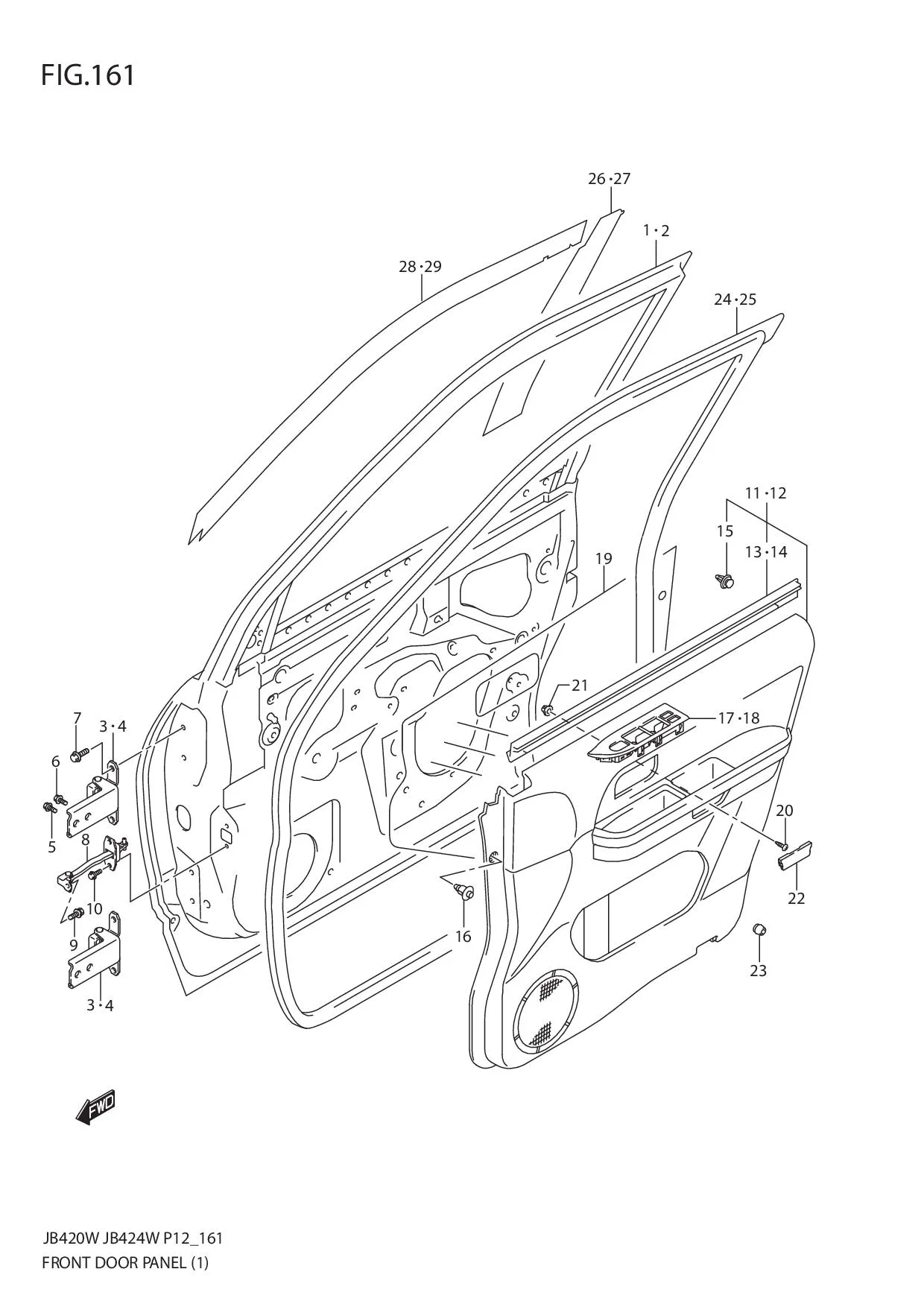

FIG.161 FRONT DOOR PANEL (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-65844-000 SUB: 68001-65843-000	PANEL ASSY, FRONT DOOR RH	1	Rp9.636.000
2	68002-65844-000 SUB: 68002-65843-000	PANEL ASSY, FRONT DOOR LH	1	Rp9.636.000
3	69310-65J00-000	HINGE, FRONT DOOR NO.1	2	Rp473.500	UPPER RH,LOWER LH
4	DISCONTINUE SUB: 69320-65J00-000	HINGE, FRONT DOOR NO.2	2	-	UPPER LH,LOWER RH
5	09113-08001-000	BOLT (8X20)	4	Rp18.500
6	01551-0820A-000	BOLT	4	Rp17.500
7	09103M08557-000 SUB: 09103-08389-000	BOLT (8X24)	8	Rp8.500
8	81810-65J02-000	STOP, FRONT DOOR OPEN	2	Rp376.000
9	09112-08004-000	BOLT (8X25)	2	Rp26.000
10	02162-0620A-000 SUB: 02162-0620C-000	BOLT	4	Rp5.500
11-1	DISCONTINUE SUB: 83710-65J00-FWH	TRIM, DOOR RH (BLACK/GRAY)	1	-	STD
11-2	DISCONTINUE SUB: 83710-65J00-CBY	TRIM, DOOR RH (BLACK/GRAY/WOOD/BEIGE)	1	-	DX
12-1	DISCONTINUE SUB: 83720-65J00-FWH	TRIM, DOOR LH (BLACK/GRAY)	1	-	STD
12-2	DISCONTINUE SUB: 83720-65J00-CBY	TRIM, DOOR LH (BLACK/GRAY/WOOD/BEIGE)	1	-	DX
13	83719-65J00-000	•WEATHERSTRIP, DOOR INNER RH	1	Rp550.500
14	83729-65J00-000	•WEATHERSTRIP, DOOR INNER LH	1	Rp550.500
15	09409-10327-000 SUB: 09409B10312N000	•CLIP	14	Rp5.000
16-1	09409-06314-5PK SUB: 09409B06314N5PK	CLIP (BLACK)	2	Rp3.500	STD
16-2	09409-06314-R8H	CLIP (BEIGE)	2	Rp18.500	DX
17-1	DISCONTINUE SUB: 83717-65J00-5PK	BEZEL, P/W SWITCH MAIN RH (BLACK)	1	-	STD
17-2	DISCONTINUE SUB: 83717-65J00-R9S	BEZEL, P/W SWITCH MAIN RH (WOOD)	1	-	DX
18-1	DISCONTINUE SUB: 83727-65J10-5PK	BEZEL, P/W SWITCH SUB LH (BLACK)	1	-	STD
18-2	DISCONTINUE SUB: 83727-65J10-R9S	BEZEL, P/W SWITCH SUB LH (WOOD)	1	-	DX
19	DISCONTINUE SUB: 83911-65J00-000	COVER, DOOR SEALING	2	-
20	03241-0616A-000	SCREW	2	Rp11.500
21	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
22-1	DISCONTINUE SUB: 83715-65J00-5PK	CAP, DOOR TRIM (BLACK)	2	-	STD
22-2	83715-65J00-R8H	CAP, DOOR TRIM (BEIGE)	2	Rp56.000	DX
23	82711-65J00-000	STOPPER, DOOR	4	Rp34.000
24	84641-65J00-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp1.037.500
25	84651-65J00-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp1.037.500
26	DISCONTINUE SUB: 83923B65J01N0CB	TAPE, SASH PILLAR RH (BLACK)	1	-
27	DISCONTINUE SUB: 83924B65J01N0CB	TAPE, SASH PILLAR LH (BLACK)	1	-
28	83921-65J01-0CB SUB: 83921B65J01N0CB	TAPE, SASH ROOF RH (BLACK)	1	Rp706.000
29	DISCONTINUE SUB: 83922B65J01N0CB	TAPE, SASH ROOF LH (BLACK)	1	-
