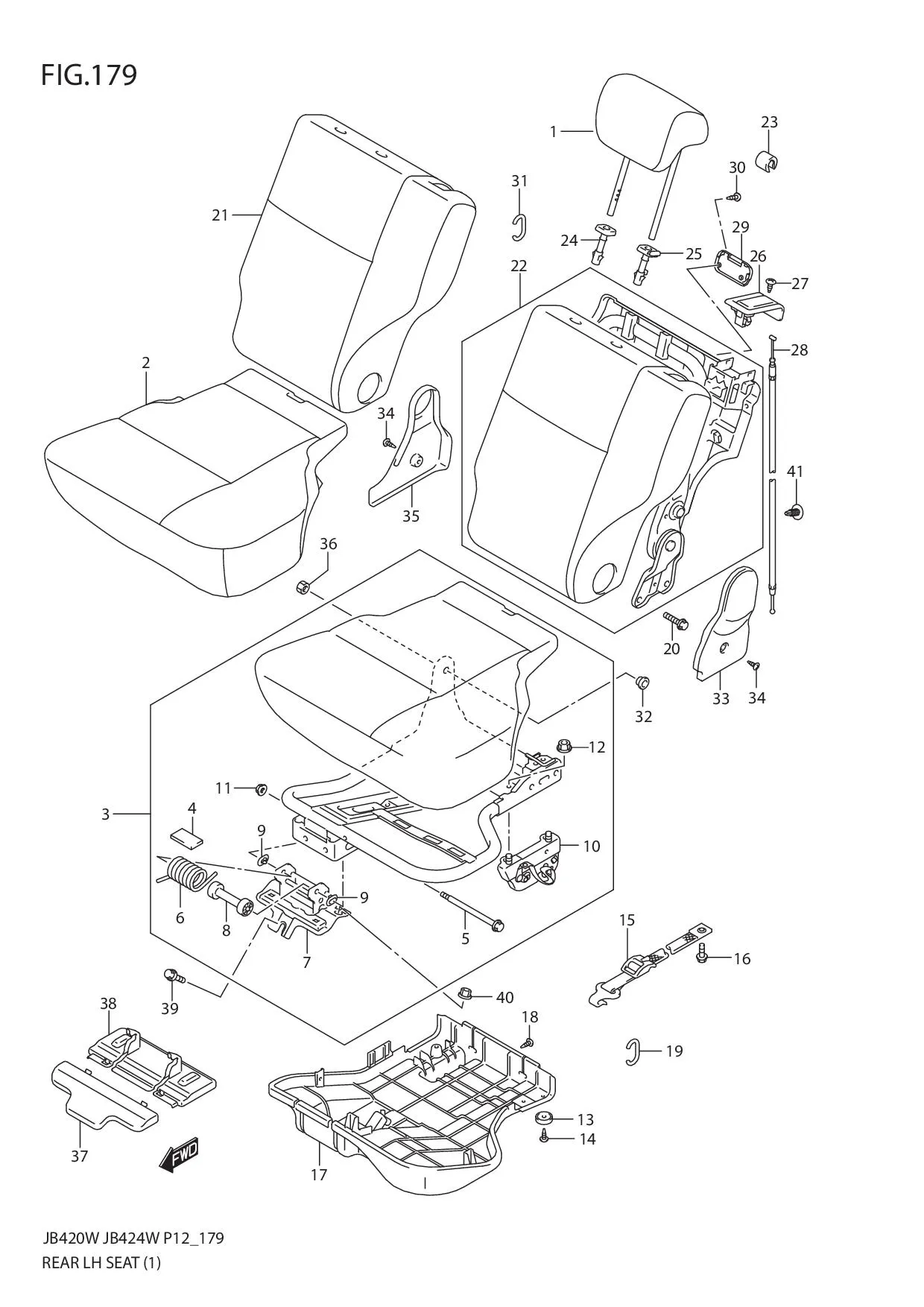

FIG.179 REAR LH SEAT (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 86401-66J20-S1K	HEADRESTRAINT ASSY (BEIGE)	1	-	DX
1-1	DISCONTINUE SUB: 86401-66J20-NL5	HEADRESTRAINT ASSY (BLACK)	1	-	STD
2-2	DISCONTINUE SUB: 87680B66J01NBFP	TRIM, CUSHION LH (BEIGE)	1	-	DX
2-1	DISCONTINUE SUB: 87680-66J01-DBT	TRIM, CUSHION LH (BLACK)	1	-	STD
3	DISCONTINUE SUB: 87106-66J01-000	CUSHION SUB ASSY, LH	1	-
4	DISCONTINUE SUB: 87144-66J00-000	•SILENCER	1	-
5	DISCONTINUE SUB: 87153-63J01-000	•BOLT	1	-
6	DISCONTINUE SUB: 87148-66J00-000	•SPRING, CUSHION LEG	1	-
7	DISCONTINUE SUB: 87150-66J10-000	•LEG, CUSHION	1	-
8	DISCONTINUE SUB: 87149-66J00-000	•COLLAR, SPRING	1	-
9	DISCONTINUE SUB: 87157-66J00-000	•BUSH, CUSHION LEG	2	-
10	DISCONTINUE SUB: 87960-66J00-000	•LOCK ASSY, CUSHION	1	-
11	08316-1008A-000 SUB: 08316B1008AN000	•NUT	1	Rp3.500
12	08316-1010A-000 SUB: 08316B1010AN000	•NUT	2	Rp3.500
13	DISCONTINUE SUB: 87159-65DA0-000	CUSHION	1	-
14	03241-0516A-000	SCREW	1	Rp17.000
15	DISCONTINUE SUB: 87270-66J00-000	BAND, SEAT	1	-
16	03141-0616A-000	SCREW	1	Rp19.500
17-1	DISCONTINUE SUB: 87675-66J00-5PK	COVER, BOTTOM LH (BLACK)	1	-	STD
17-2	DISCONTINUE SUB: 87675-66J00-R8H	COVER, BOTTOM LH (BEIGE)	1	-	DX
18	03241-0510A-000	SCREW	4	Rp8.000
19	09387-19001-000 SUB: 09387B19001N000	RING	0	Rp9.000
20	DISCONTINUE SUB: 01551-1225A-000	BOLT	2	-
21-1	DISCONTINUE SUB: 87880-66J00-DBT	TRIM, BACK LH (BLACK)	1	-	STD
21-2	DISCONTINUE SUB: 87880B66J00NBFP	TRIM, BACK LH (BEIGE)	1	-	DX
22	DISCONTINUE SUB: 87306-66J00-000	BACK SUB ASSY, LH	1	-
23	DISCONTINUE SUB: 87359-66J00-000	CAP, BACK FRAME	1	-
24-1	DISCONTINUE SUB: 85341-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-	STD
24-2	DISCONTINUE SUB: 85341-63J10-R8H	GUIDE, HEADRESTRAINT (BEIGE)	1	-	DX
25-1	DISCONTINUE SUB: 85840-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-	STD
25-2	DISCONTINUE SUB: 85840-63J10-R8H	GUIDE, HEADRESTRAINT (BEIGE)	1	-	DX
26-1	DISCONTINUE SUB: 87290-65J00-5PK	HANDLE, RECLINING (BLACK)	1	-	STD
26-2	DISCONTINUE SUB: 87290-65J00-R8H	HANDLE, RECLINING (BEIGE)	1	-	DX
27	03241-0510A-000	SCREW	1	Rp8.000
28	DISCONTINUE SUB: 87294-66J00-000	CABLE, RECLINING RELEASE	1	-
29-1	87428-65DA0-5PK	STRIKER, TONNEAU COVER (BLACK)	1	Rp78.000	STD
29-2	DISCONTINUE SUB: 87428-65DA0-R8H	STRIKER, TONNEAU COVER (BEIGE)	1	-	DX
30	03241-0510A-000	SCREW	2	Rp8.000
31	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
32	DISCONTINUE SUB: 87649-66J00-000	BUSH, HINGE	1	-
33-2	DISCONTINUE SUB: 87721-66J00-R8H	COVER, RECLINING OUTSIDE (BEIGE)	1	-	DX
33-1	DISCONTINUE SUB: 87721-66J00-5PK	COVER, RECLINING OUTSIDE (BLACK)	1	-	STD
34	03241-0510A-000	SCREW	2	Rp8.000
35-1	DISCONTINUE SUB: 87741-66J00-5PK	COVER, HINGE INSIDE (BLACK)	1	-	STD
35-2	DISCONTINUE SUB: 87741-66J00-R8H	COVER, HINGE INSIDE (BEIGE)	1	-	DX
36	09159-08119-000	NUT	1	Rp20.000
37-1	87491-66J00-5PK	COVER, CUSHION HINGE (BLACK)	1	Rp150.500	STD
37-2	87491-66J00-R8H	COVER, CUSHION HINGE (BEIGE)	1	Rp179.000	DX
38-1	DISCONTINUE SUB: 87492-66J00-5PK	COVER, CUSHION HINGE (BLACK)	1	-	STD
38-2	DISCONTINUE SUB: 87492-66J00-R8H	COVER, CUSHION HINGE (BEIGE)	1	-	DX
39	01551-1020A-000	BOLT	1	Rp18.000
40	08316-1010A-000 SUB: 08316B1010AN000	NUT	2	Rp3.500
41-1	09409-10302-5PK	CLIP (BLACK)	1	Rp18.500	STD
41-2	DISCONTINUE SUB: 09409-10302-R8H	CLIP (BEIGE)	1	-	DX
