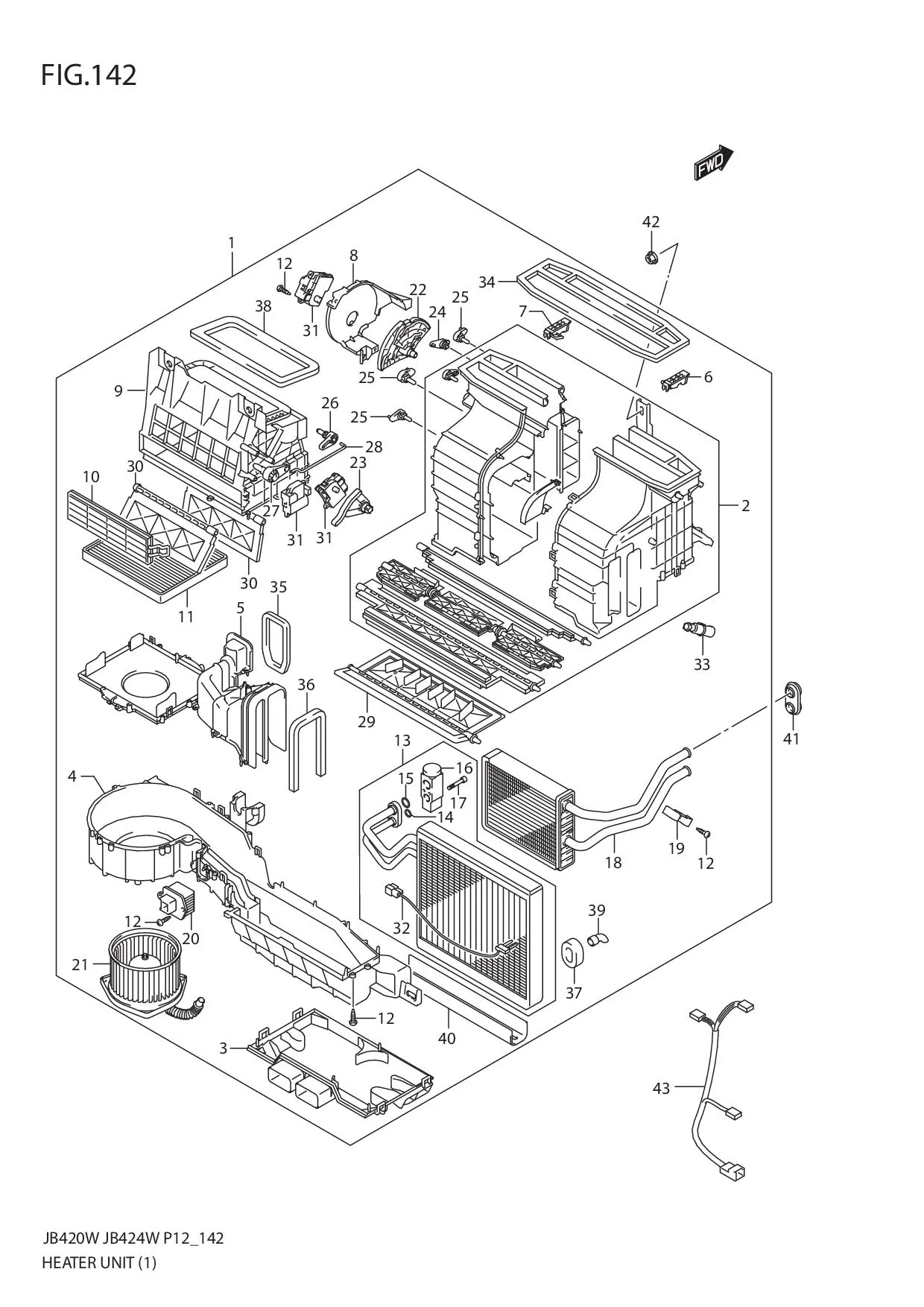

FIG.142 HEATER UNIT (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 74100B64J87N000	HEATER UNIT	1	-
2	DISCONTINUE SUB: 74111-64823-000	•CASE SET, HEATER RH & LH	1	-
3	DISCONTINUE SUB: 74114B64J80N000	•CASE, FOOT	1	-
4	DISCONTINUE SUB: 74115B64J81N000	•CASING, LOWER	1	-
5	DISCONTINUE SUB: 74113B64J81N000	•CASING, UPPER	1	-
6	DISCONTINUE SUB: 74192B64J00N000	•PLATE, RH	1	-
7	DISCONTINUE SUB: 74191B64J00N000	•PLATE, LH	1	-
8	DISCONTINUE SUB: 74196B64J00N000	•BRACKET	1	-
9	DISCONTINUE SUB: 74211B64J80N000	•BOX, INTAKE	1	-
10	74214-64J00-000 SUB: 74214B64J00N000	•COVER, FILTER	1	Rp186.000
11	95861-64J10-000 SUB: 95861B64J00N000	•FILTER, AIR	1	Rp392.500
12	03112-0416A-000 SUB: 03111-0416A-000	•SCREW	41	Rp23.500
13-1	95410-64J22-000 SUB: 95410B64J21N000	•EVAPORATOR	1	Rp5.683.000	->95410-64J22 USED WITH 95461-76K00
13-2	95410-64J22-000 SUB: 95410B64J22N000	•EVAPORATOR	1	Rp5.683.000	FROM 2008-8
14	95895-64J00-000 SUB: 95895B64J00N000	••O RING	1	Rp42.000
15	95896-64J00-000 SUB: 95896B64J00N000	••O RING	1	Rp48.000
16	95431-64J80-000 SUB: 95431B64J80N000	••VALVE, EXPANSION	1	Rp1.097.500
17	DISCONTINUE SUB: 07130-05407-000	••BOLT	2	-
18	74120-64J80-000 SUB: 74120B64J80N000	•HEATER ASSY	1	Rp3.818.000
19	DISCONTINUE SUB: 74121B64J00N000	•CLAMP, HEATER	1	-
20	95626-64J00-000 SUB: 95626B64J00N000	•TRANSISTOR, FAN CONTROL	1	Rp896.000
21	74250-76K02-000 SUB: 74250B64J02N000	•FAN	1	Rp4.545.000
22	DISCONTINUE SUB: 74181B64J02N000	•LEVER, MODE	1	-
23	DISCONTINUE SUB: 74184B64J00N000	•LEVER, AIR MIXTURE	1	-
24	DISCONTINUE SUB: 74182B64J01N000	•LEVER, FACE	1	-
25	DISCONTINUE SUB: 74183B64J02N000	•LEVER	3	-
26	DISCONTINUE SUB: 74282B64J01N000	•LEVER, FRESH AIR FRONT	1	-
27	DISCONTINUE SUB: 74281B64J01N000	•LEVER, FRESH AIR REAR	1	-
28	DISCONTINUE SUB: 74283B64J00N000	•ROD	1	-
29	DISCONTINUE SUB: 74174B64J00N000	•DAMPER, AIR MIXTURE	1	-
30	74271-64J00-000 SUB: 74271B64J00N000	•DAMPER, FRESH AIR	2	Rp163.500
31	95651-64J01-000 SUB: 95651B64J01N000	•MOTOR, DC	3	Rp667.500
32	95541-64J00-000 SUB: 95541B64J00N000	•THERMISTOR	1	Rp149.500
33	DISCONTINUE SUB: 95656B64J00N000	•ASPIRATOR	1	-
34	DISCONTINUE SUB: 74116B64J00N000	•PACKING	1	-
35	DISCONTINUE SUB: 74117B64J00N000	•PACKING	1	-
36	DISCONTINUE SUB: 74119B64J00N000	•PACKING, UPPER CASING	1	-
37	DISCONTINUE SUB: 74118B64J00N000	•PACKING, DRAIN	1	-
38	74221-64J00-000 SUB: 74221B64J00N000	•PACKING, INTAKE BOX	1	Rp113.500
39	95481-64J01-000 SUB: 95481B64J01N000	•HOSE, DRAIN	1	Rp66.500
40	DISCONTINUE SUB: 95461-76K00-000	•INSULATOR, DRAIN PAN	1	-	FROM 2008-8
41	DISCONTINUE SUB: 74812-64J01-000	GROMMET, HEATER	1	-
42	09159-06081-000	NUT	6	Rp14.500
43	DISCONTINUE SUB: 74156B64J20N000	WIRE, AIR CON PANEL	1	-
