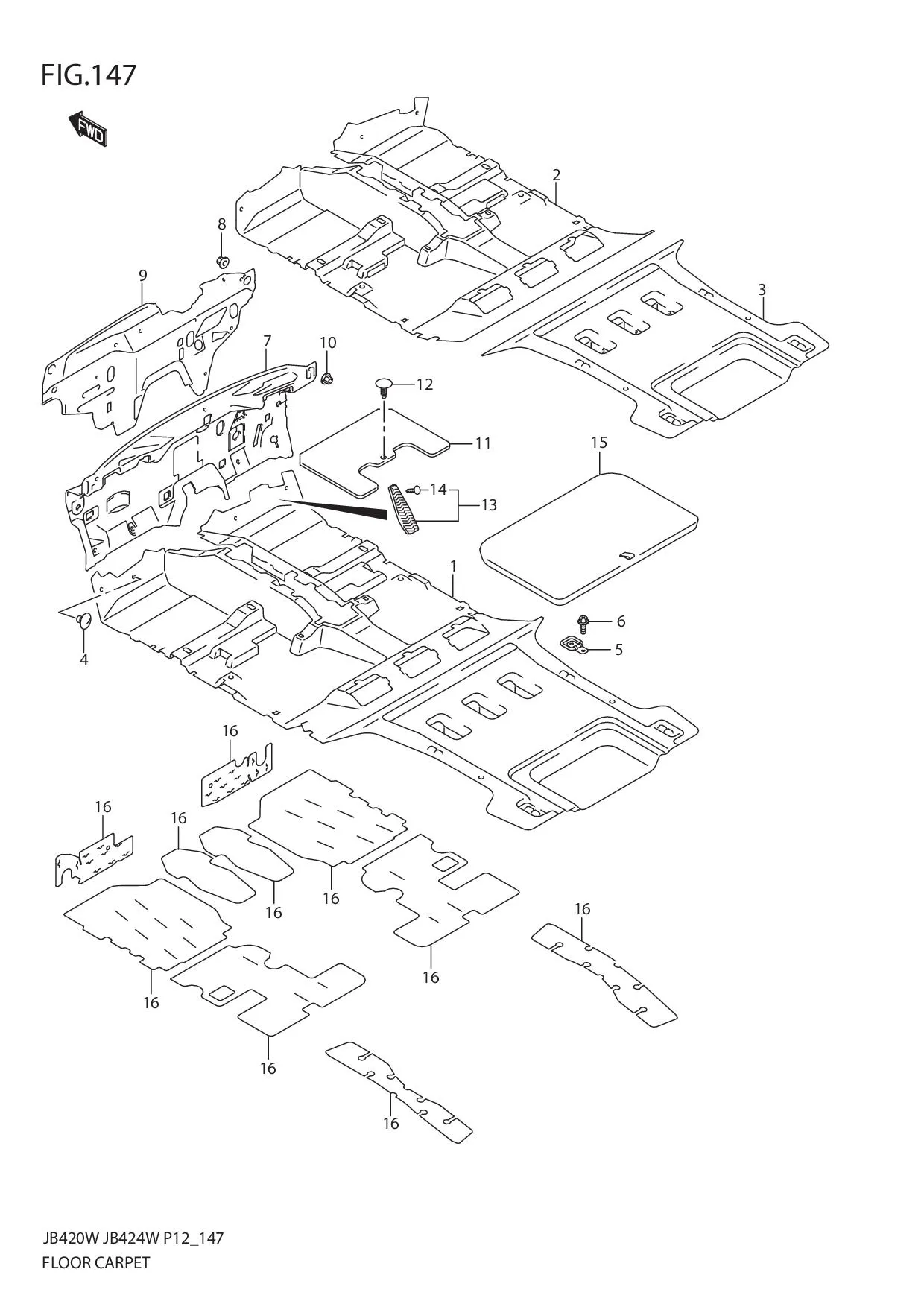

FIG.147 FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 75160-65J41-R9U	CARPET, FR FLOOR (BEIGE)	1	-	DX TO 2007-5
1-1	DISCONTINUE SUB: 75160-65J41-R3F	CARPET, FR FLOOR (BLACK)	1	-	STD TO 2007-5
2-1	DISCONTINUE SUB: 75160B65J51NR3F	CARPET, FR FLOOR (BLACK)	1	-	STD FROM 2007-6
2-2	DISCONTINUE SUB: 75160B65J51NR9U	CARPET, FR FLOOR (BEIGE)	1	-	DX FROM 2007-6
3-1	DISCONTINUE SUB: 75180B65J01NR3F	CARPET, RR FLOOR (BLACK)	1	-	STD FROM 2007-6
3-2	DISCONTINUE SUB: 75180B65J01NR9U	CARPET, RR FLOOR (BEIGE)	1	-	DX FROM 2007-6
4	09148-05042-000	NUT	4	Rp17.500
5	DISCONTINUE SUB: 75510-54F10-000	HOOK, LUGGAGE FLOOR	4	-
6	02162-0612A-000	SCREW	8	Rp11.000
7	DISCONTINUE SUB: 75210-65J10-000	SILENCER, DASH PANEL	1	-
8	09148-05048-000	CLIP	4	Rp19.500
9	75280-65J11-000	SILENCER, DASH OUTER	1	Rp2.487.000
10	09148-05048-000	CLIP	4	Rp19.500
11	DISCONTINUE SUB: 75221-65J00-000	SILENCER, FLOOR TUNNEL UPPER	1	-
12	09409M06L02-6GS SUB: 09409-06326-6GS	CLIP (GRAY)	1	Rp5.500
13	DISCONTINUE SUB: 75451-65J10-000	PEDAL, FOOTREST	1	-
14	09409-08321-5ES	•CLAMP (BLACK)	1	Rp18.500
15-1	DISCONTINUE SUB: 75440-65J01-R3F	LID, LUGGAGE BOX (BLACK)	1	-
15-2	DISCONTINUE SUB: 75440-65J01-R9U	LID, LUGGAGE BOX (BEIGE)	1	-
16	99611-60A01-000	SHEET, SILENCER (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
