GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.130 FRONT HOOD PANELFIG.131 FRONT FENDERFIG.132 FRONT BODY PANELFIG.133 FLOOR PANELFIG.134 SIDE BODY PANELFIG.135 ROOF PANELFIG.136 FRONT BUMPER (JB420W)FIG.137 FRONT BUMPER (JB424W)FIG.138 REAR BUMPERFIG.139 INSTRUMENT PANEL (JB420W)FIG.140 INSTRUMENT PANEL (JB424W)FIG.141 VENTILATORFIG.142 HEATER UNIT (JB420W)FIG.143 HEATER UNIT (JB424W)FIG.144 HEATER CONTROLFIG.145 CONSOLE BOX (JB420W)FIG.146 CONSOLE BOX (JB424W)FIG.147 FLOOR CARPETFIG.148 INTERIOR TRIM (JB420W)FIG.149 INTERIOR TRIM (JB424W)FIG.150 COVER/CAPFIG.151 FUEL LID OPENERFIG.152 ROOF LININGFIG.153 EMBLEMFIG.154 GARNISH (JB420W)FIG.155 GARNISH (JB424W)FIG.156 SPLASH GUARD (JB420W)FIG.157 SPLASH GUARD (JB424W)FIG.158 WINDSHIELD GLASSFIG.159 TIRE CARRIER (JB420W)FIG.160 TIRE CARRIER (JB424W)FIG.161 FRONT DOOR PANEL (JB420W)FIG.162 FRONT DOOR PANEL (JB424W)FIG.163 FRONT DOOR REGULATORFIG.164 FRONT DOOR LOCKFIG.165 REAR DOOR PANEL (JB420W)FIG.166 REAR DOOR PANEL (JB424W)FIG.167 REAR DOOR REGULATORFIG.168 REAR DOOR LOCKFIG.169 BACK DOOR PANELFIG.170 BACK DOOR LOCKFIG.171 MIRROR/SUNVISOR (JB420W)FIG.172 MIRROR/SUNVISOR (JB424W)FIG.173 SEAT BELT (JB420W)FIG.174 SEAT BELT (JB424W)FIG.175 FRONT SEAT (JB420W)FIG.176 FRONT SEAT (JB424W)FIG.177 REAR RH SEAT (JB420W)FIG.178 REAR RH SEAT (JB424W)FIG.179 REAR LH SEAT (JB420W)FIG.180 REAR LH SEAT (JB424W)FIG.181 FUEL TANK (JB420W)FIG.182 FUEL TANK (JB424W)FIG.183 TOOLFIG.184 AIR CON PIPING (JB420W)FIG.185 AIR CON PIPING (JB424W)FIG.186 COMPRESSOR (JB420W)FIG.187 COMPRESSOR (JB424W)

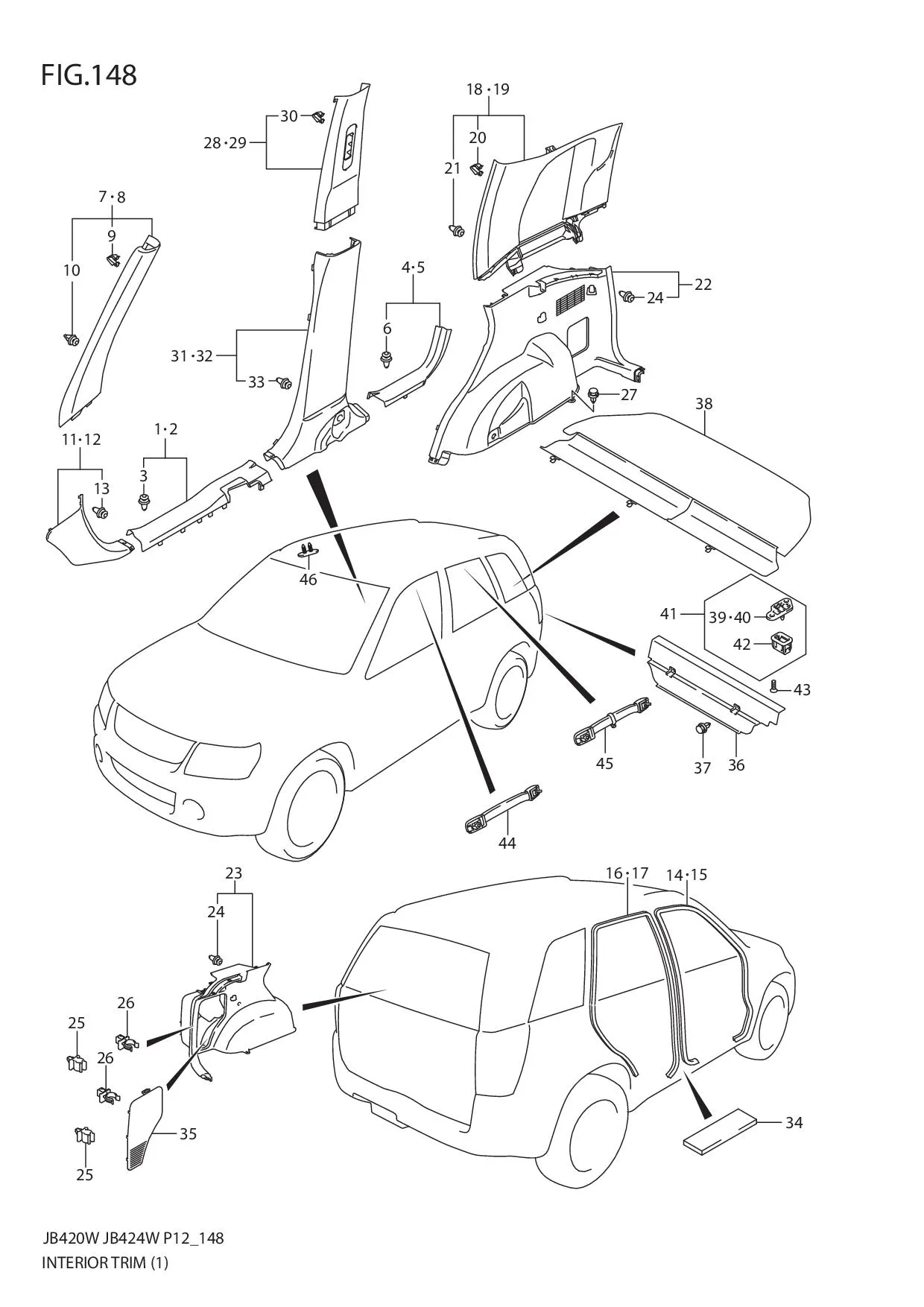

FIG.148 INTERIOR TRIM (JB420W)

FIG.148 INTERIOR TRIM (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 76130-65J00-R8H		 SCUFF, SIDE SILL FR RH (BEIGE) 1 - DX
1-1 DISCONTINUE
SUB: 76130-65J00-5PK		 SCUFF, SIDE SILL FR RH (BLACK) 1 - STD
2-2 76140-65J00-R8H SCUFF, SIDE SILL FR LH (BEIGE) 1 Rp482.000 DX
2-1 DISCONTINUE
SUB: 76140-65J00-5PK		 SCUFF, SIDE SILL FR LH (BLACK) 1 - STD
3 09409-10327-000
SUB: 09409B10312N000		 •CLIP 6 Rp5.000
4-1 DISCONTINUE
SUB: 76170-65J00-5PK		 SCUFF, SIDE SILL RR RH (BLACK) 1 - STD
4-2 DISCONTINUE
SUB: 76170-65J00-R8H		 SCUFF, SIDE SILL RR RH (BEIGE) 1 - DX
5-1 76180-65J00-5PK SCUFF, SIDE SILL RR LH (BLACK) 1 Rp478.500 STD
5-2 76180-65J00-R8H SCUFF, SIDE SILL RR LH (BEIGE) 1 Rp639.000 DX
6 09409-10327-000
SUB: 09409B10312N000		 •CLIP 4 Rp5.000
7 76240-65J01-6GS TRIM, FR PILLAR UPPER RH (GRAY) 1 Rp896.000
8 76250-65J01-6GS TRIM, FR PILLAR UPPER LH (GRAY) 1 Rp896.000
9 09409-07335-000 •CLIP 2 Rp17.500
10 09409-11306-000 •CLIP 2 Rp19.000
11-1 DISCONTINUE
SUB: 76110-65J00-5PK		 TRIM, FR PILLAR LOWER RH (BLACK) 1 - STD
11-2 DISCONTINUE
SUB: 76110-65J00-R8H		 TRIM, FR PILLAR LOWER RH (BEIGE) 1 - DX
12-2 76120-65J10-R8H TRIM, FR PILLAR LOWER LH (BEIGE) 1 Rp211.000 DX
12-1 DISCONTINUE
SUB: 76120-65J10-5PK		 TRIM, FR PILLAR LOWER LH (BLACK) 1 - STD
13 09409-10327-000
SUB: 09409B10312N000		 •CLIP 2 Rp5.000
14 76311-65J02-5PK
SUB: 76311-65J01-5PK		 TRIM, FR DOOR OPENING RH (BLACK) 1 Rp851.500
15 76312-65J02-5PK
SUB: 76312-65J01-5PK		 TRIM, FR DOOR OPENING LH (BLACK) 1 Rp827.000
16 76321-65J00-5PK TRIM, RR DOOR OPENING RH (BLACK) 1 Rp955.000
17 76322-65J00-5PK TRIM, RR DOOR OPENING RH (BLACK) 1 Rp955.000
18 DISCONTINUE
SUB: 76280-65J00-6GS		 TRIM, QTR INNER UPPER RH (GRAY) 1 -
19 DISCONTINUE
SUB: 76290-65J00-6GS		 TRIM, QTR INNER UPPER LH (GRAY) 1 -
20 09409-07335-000 •CLIP 6 Rp17.500
21 09409-10327-000
SUB: 09409B10312N000		 •CLIP 12 Rp5.000
22-1 DISCONTINUE
SUB: 76210-65J02-5PK		 TRIM, RR QTR LOWER RH (BLACK) 1 - STD
22-2 76210-65J13-JY4
SUB: 76210-65J02-JY4		 TRIM, RR QTR LOWER RH (BEIGE/BLACK) 1 Rp5.636.500 DX
23-1 76220-65J14-5PK
SUB: 76220-65J02-5PK		 TRIM, RR QTR LOWER LH (BLACK) 1 Rp7.073.500 STD
23-2 76220-65J14-R8H
SUB: 76220-65J02-R8H		 TRIM, RR QTR LOWER LH (BEIGE) 1 Rp9.583.500 DX
24 09409-10327-000
SUB: 09409B10312N000		 •CLIP 12 Rp5.000
25 09403-08326-000 •CLAMP 2 Rp19.500
26 09403-13307-000 •CLIP 2 Rp29.000
27-1 09409M07L01-000
SUB: 09409-07332-000		 CLIP (BLACK) 4 Rp5.000 STD
27-2 09409-07332-R8H CLIP (BEIGE) 4 Rp32.000 DX
28 DISCONTINUE
SUB: 76260-65J00-6GS		 TRIM, CTR PILLAR UPPER RH (GRAY) 1 -
29 DISCONTINUE
SUB: 76270-65J00-6GS		 TRIM, CTR PILLAR UPPER LH (GRAY) 1 -
30 09409-07335-000 •CLIP 2 Rp17.500
31-1 DISCONTINUE
SUB: 76150-65J00-5PK		 TRIM, CTR PILLAR LOWER RH (BLACK) 1 - STD
31-2 DISCONTINUE
SUB: 76150-65J00-R8H		 TRIM, CTR PILLAR LOWER RH (BEIGE) 1 - DX
32-1 DISCONTINUE
SUB: 76160-65J00-5PK		 TRIM, CTR PILLAR LOWER LH (BLACK) 1 - STD
32-2 DISCONTINUE
SUB: 76160-65J00-R8H		 TRIM, CTR PILLAR LOWER LH (BEIGE) 1 - DX
33 09409-10327-000
SUB: 09409B10312N000		 •CLIP 4 Rp5.000
34 DISCONTINUE
SUB: 76351-65J00-000		 PAD, CENTER PILLAR LOWER 2 -
35-1 76231-65J00-5PK LID, RR QTR TRIM (BLACK) 1 Rp448.000 STD
35-2 76231-65J00-R8H LID, RR QTR TRIM (BEIGE) 1 Rp496.500 DX
36-1 76331-65J00-5PK TRIM, BACK PANEL (BLACK) 1 Rp481.500 STD
36-2 76331-65J00-R8H TRIM, BACK PANEL (BEIGE) 1 Rp523.000 DX
37-1 09409M07L01-000
SUB: 09409-07332-000		 CLIP (BLACK) 2 Rp5.000 STD
37-2 09409-07332-R8H CLIP (BEIGE) 2 Rp32.000 DX
38-1 76340-65J01-5PK
SUB: 76340-65J00-5PK		 COVER, TONNEAU (BLACK) 1 Rp4.688.500 STD:TO 2007-10 ->76340-65J01-5PK USED WITH 76344-65811-5PK
38-2 76340-65J01-5PK COVER, TONNEAU (BLACK) 1 Rp4.688.500 STD FROM 2007-11
38-3 76340-65J01-R8H
SUB: 76340-65J00-R8H		 COVER, TONNEAU (BEIGE) 1 Rp4.545.500 DX:TO 2007-10 ->76340-65J01-R8H USED WITH 76344-65811-R8H
38-4 76340-65J01-R8H COVER, TONNEAU (BEIGE) 1 Rp4.545.500 DX FROM 2007-11
39 76340-65J01-5PK STRIKER, TONNEAU COVER RH 2 Rp4.688.500 TO 2007-10 ->76344-65811-5PK/R8H
40 76340-65J01-5PK STRIKER, TONNEAU COVER LH 2 Rp4.688.500 TO 2007-10 ->76344-65811-5PK/R8H
41-1 DISCONTINUE
SUB: 76344-65811-5PK		 LATCH/STRIKER SET (BLACK) 1 - STD FROM 2007-11
41-2 DISCONTINUE
SUB: 76344-65811-R8H		 LATCH/STRIKER SET (BEIGE) 1 - DX FROM 2007-11
42-1 DISCONTINUE
SUB: 76214-65J00-5PK		 •LATCH (BLACK) 4 - FROM 2007-11
42-2 DISCONTINUE
SUB: 76214-65J00-R8H		 •LATCH (BEIGE) 4 - FROM 2007-11
43 DISCONTINUE
SUB: 76346-65J00-000		 SCREW, TONNEAU STRIKER 8 -
44 76410-65J00-6GS GRIP, ASSISTANT FRONT (GRAY) 1 Rp409.000
45 76410-65J10-6GS GRIP, ASSISTANT REAR (GRAY) 2 Rp448.000
46 76411-65J00-6GS CAP, ROOF LINING (GRAY) 2 Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
