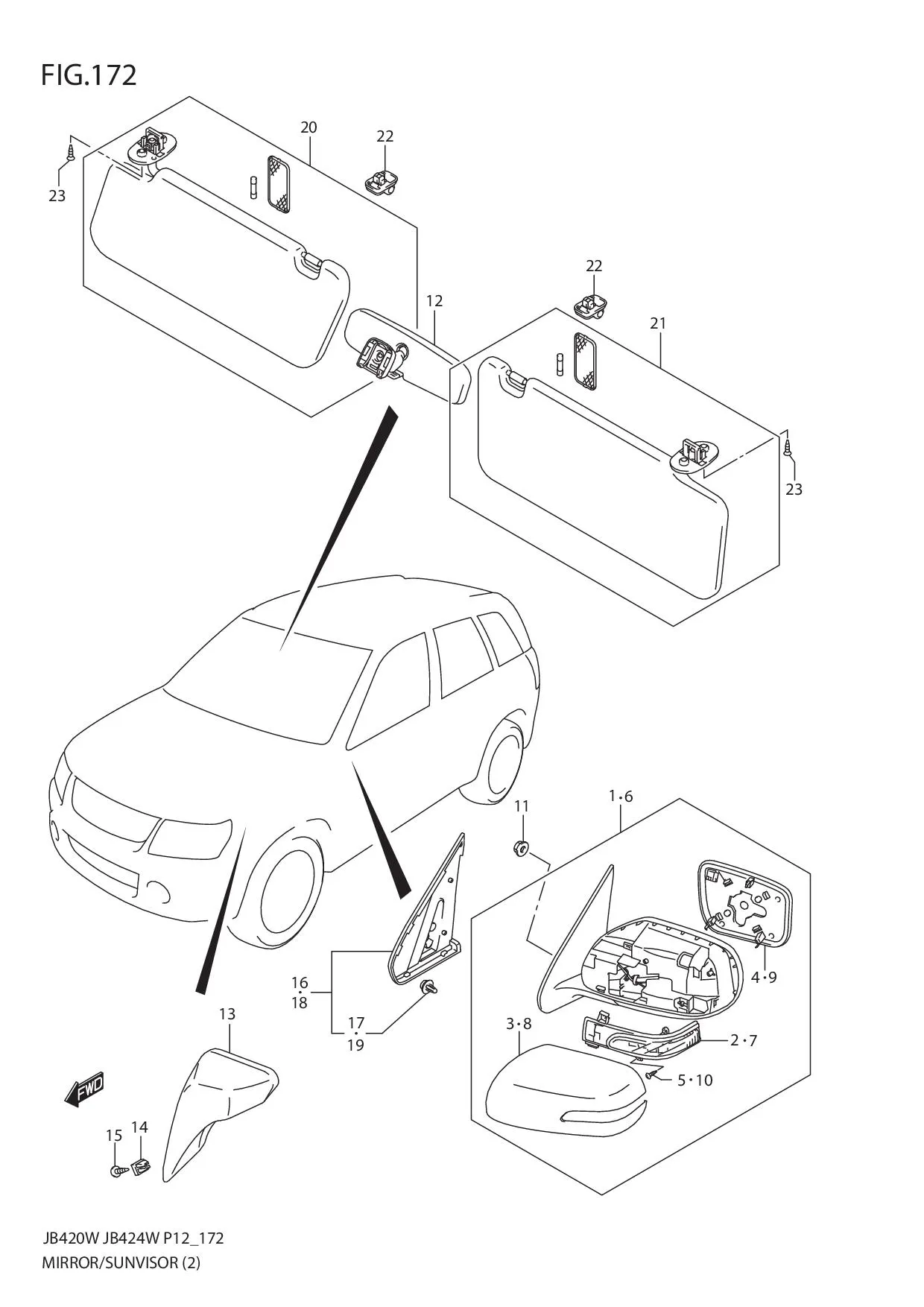

FIG.172 MIRROR/SUNVISOR (JB424W)

No	No. Part	Description	Qty	Price Per Pcs
1-2	DISCONTINUE SUB: 84701-78K80-Z2S	MIRROR ASSY, OUT REAR VIEW RH (SILVER)	1	-
1-1	84701-78K81-ZDL SUB: 84701-78K80-ZDL	MIRROR ASSY, OUT REAR VIEW RH (GRAY)	1	Rp4.281.000
2	36410-78K00-000	•LAMP ASIDE TURN SIG, RH	1	Rp693.000
3-1	84718-78K00-ZDL	•COVER, MIRROR VISOR RH (GRAY)	1	Rp614.500
3-2	DISCONTINUE SUB: 84718-78K00-ZFN	•COVER, MIRROR VISOR RH (BLUE)	1	-
3-3	84718-78K00-Z2S	•COVER, MIRROR VISOR RH (SILVER)	1	Rp387.500
3-4	84718-78K00-26U	•COVER, MIRROR VISOR RH (WHITE)	1	Rp464.000
4	84730-78K00-000	•GLASS, OUT REAR VIEW RH	1	Rp396.000
5	DISCONTINUE SUB: 03212-0412A-000	•SCREW	3	-
6-1	84702-78K81-ZDL SUB: 84702-78K80-ZDL	MIRROR ASSY, OUT REAR VIEW LH (GRAY)	1	Rp4.281.000
6-2	84702-78K81-Z2S SUB: 84702-78K80-Z2S	MIRROR ASSY, OUT REAR VIEW LH (SILVER)	1	Rp5.562.000
7	36430-78K00-000	•LAMP, SIDE TURN SIG, LH	1	Rp693.000
8-1	84728-78K00-ZDL	•COVER, MIRROR VISOR LH (GRAY)	1	Rp614.500
8-2	DISCONTINUE SUB: 84728-78K00-ZFN	•COVER, MIRROR VISOR LH (BLUE)	1	-
8-3	84728-78K00-Z2S	•COVER, MIRROR VISOR LH (SILVER)	1	Rp387.500
8-4	84728-78K00-26U	•COVER, MIRROR VISOR LH (WHITE)	1	Rp464.000
9	84740-78K00-000	•GLASS, OUT RR VIEW LH	1	Rp396.000
10	DISCONTINUE SUB: 03212-0412A-000	•SCREW	3	-
11	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
12	84703-65D10-5PK	MIRROR ASSY, INSIDE RR VIEW (BLACK)	1	Rp974.000
13-1	84704-65J10-ZDL	MIRROR ASSY, SIDE UNDER VIEW (GRAY)	1	Rp1.566.500
13-2	DISCONTINUE SUB: 84704-65J10-ZFN	MIRROR ASSY, SIDE UNDER VIEW (BLUE)	1	-
13-3	84704-65J10-Z2S	MIRROR ASSY, SIDE UNDER VIEW (SILVER)	1	Rp1.257.000
14	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
15	03211-0635A-000	SCREW	2	Rp17.000
16	84750-65J00-5PK	GARNISH, SASH BRACKET (BLACK)	1	Rp871.000
17	09409-10327-000 SUB: 09409B10312N000	•CLIP	1	Rp5.000
18	84790-65J00-5PK	GARNISH, SASH BRACKET (BLACK)	1	Rp993.000
19	09409-10327-000 SUB: 09409B10312N000	•CLIP	1	Rp5.000
20	84801-77K32-J0T SUB: 84801B77K30NJ0T	SUNVISOR ASSY, RH (GRAY)	1	Rp1.317.500
21	DISCONTINUE SUB: 84802B77K30NJ0T	SUNVISOR ASSY, LH (GRAY)	1	-
22	84851-77K00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp47.500
23	DISCONTINUE SUB: 09139-05088-000	SCREW (5X16)	4	-
