GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.130 FRONT HOOD PANEL FIG.131 FRONT FENDER FIG.132 FRONT BODY PANEL FIG.133 FLOOR PANEL FIG.134 SIDE BODY PANEL FIG.135 ROOF PANEL FIG.136 FRONT BUMPER (JB420W)FIG.137 FRONT BUMPER (JB424W)FIG.138 REAR BUMPER FIG.139 INSTRUMENT PANEL (JB420W)FIG.140 INSTRUMENT PANEL (JB424W)FIG.141 VENTILATOR FIG.142 HEATER UNIT (JB420W)FIG.143 HEATER UNIT (JB424W)FIG.144 HEATER CONTROL FIG.145 CONSOLE BOX (JB420W)FIG.146 CONSOLE BOX (JB424W)FIG.147 FLOOR CARPET FIG.148 INTERIOR TRIM (JB420W)FIG.149 INTERIOR TRIM (JB424W)FIG.150 COVER/CAP FIG.151 FUEL LID OPENER FIG.152 ROOF LINING FIG.153 EMBLEM FIG.154 GARNISH (JB420W)FIG.155 GARNISH (JB424W)FIG.156 SPLASH GUARD (JB420W)FIG.157 SPLASH GUARD (JB424W)FIG.158 WINDSHIELD GLASS FIG.159 TIRE CARRIER (JB420W)FIG.160 TIRE CARRIER (JB424W)FIG.161 FRONT DOOR PANEL (JB420W)FIG.162 FRONT DOOR PANEL (JB424W)FIG.163 FRONT DOOR REGULATOR FIG.164 FRONT DOOR LOCK FIG.165 REAR DOOR PANEL (JB420W)FIG.166 REAR DOOR PANEL (JB424W)FIG.167 REAR DOOR REGULATOR FIG.168 REAR DOOR LOCK FIG.169 BACK DOOR PANEL FIG.170 BACK DOOR LOCK FIG.171 MIRROR/SUNVISOR (JB420W)FIG.172 MIRROR/SUNVISOR (JB424W)FIG.173 SEAT BELT (JB420W)FIG.174 SEAT BELT (JB424W)FIG.175 FRONT SEAT (JB420W)FIG.176 FRONT SEAT (JB424W)FIG.177 REAR RH SEAT (JB420W)FIG.178 REAR RH SEAT (JB424W)FIG.179 REAR LH SEAT (JB420W)FIG.180 REAR LH SEAT (JB424W)FIG.181 FUEL TANK (JB420W)FIG.182 FUEL TANK (JB424W)FIG.183 TOOL FIG.184 AIR CON PIPING (JB420W)FIG.185 AIR CON PIPING (JB424W)FIG.186 COMPRESSOR (JB420W)FIG.187 COMPRESSOR (JB424W)

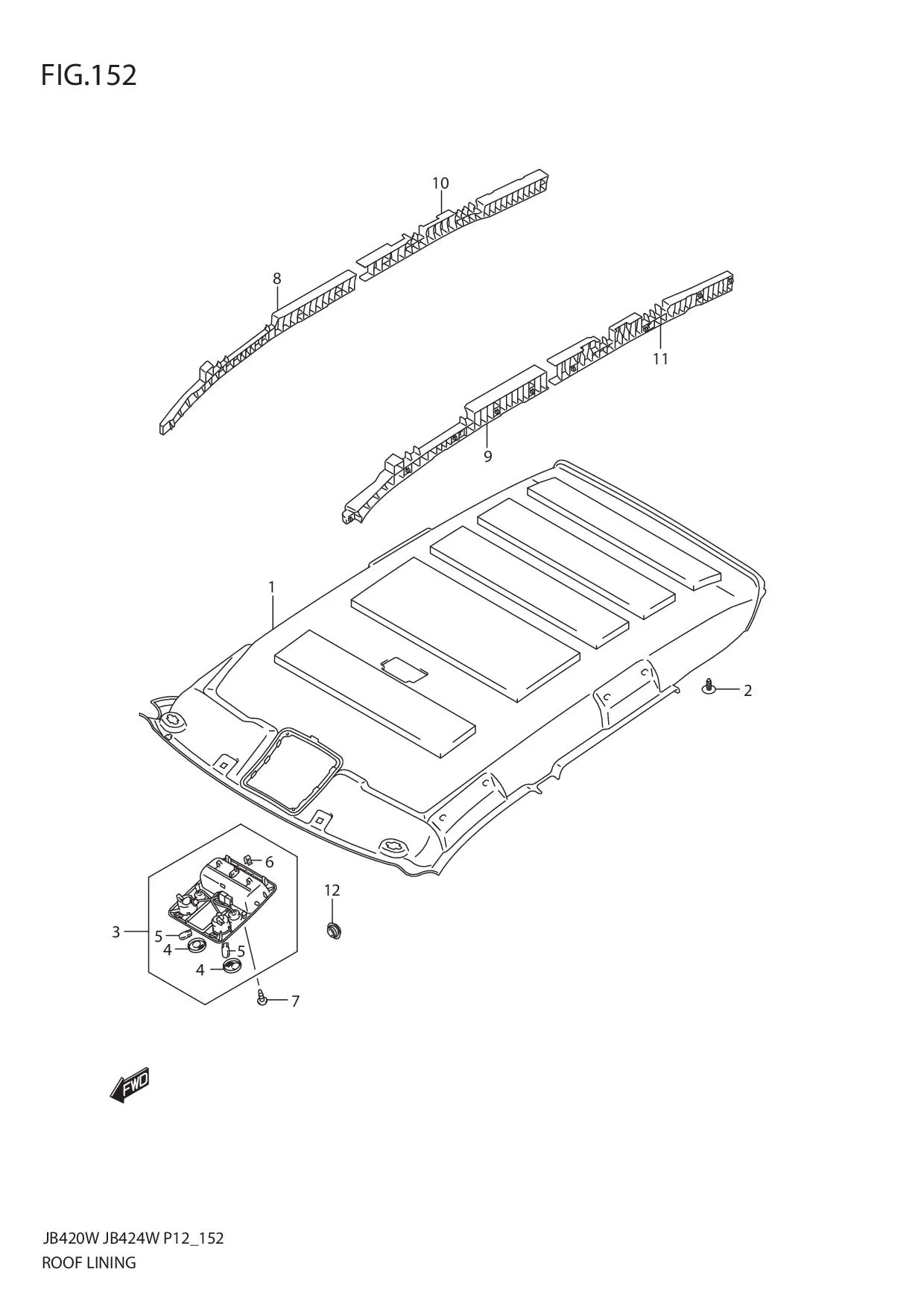

FIG.152 ROOF LINING

FIG.152 ROOF LINING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 78110B65JA1N6GS	HEADLINING ASSY, ROOF (GRAY)	1	-
2	09409M06L02-6GS SUB: 09409-06326-6GS	CLIP (GRAY)	4	Rp5.500
3	DISCONTINUE SUB: 78170-65J10-6GS	BOX, OVER HEAD CONDOLE (GRAY)	1	-
4	DISCONTINUE SUB: 36232-65J01-000	•LENS	2	-
5	09471-12113-000	•BULB	2	Rp21.500
6	09409-08326-000 SUB: 09409-08325-000	•CLIP	2	Rp8.000
7	DISCONTINUE SUB: 03141-0512B-000	SCREW	1	-
8	DISCONTINUE SUB: 78153-65J00-000	ABSORBER, ROOF SIDE FR RH	1	-
9	DISCONTINUE SUB: 78163-65J00-000	ABSORBER, ROOF SIDE FR LH	1	-
10	DISCONTINUE SUB: 78154-65J00-000	ABSORBER, ROOF SIDE RR RH	1	-
11	DISCONTINUE SUB: 78164-65J00-000	ABSORBER, ROOF SIDE RR LH	1	-
12	09250M20031-000 SUB: 09250-20015-000	CAP (OD:28.5)	2	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
