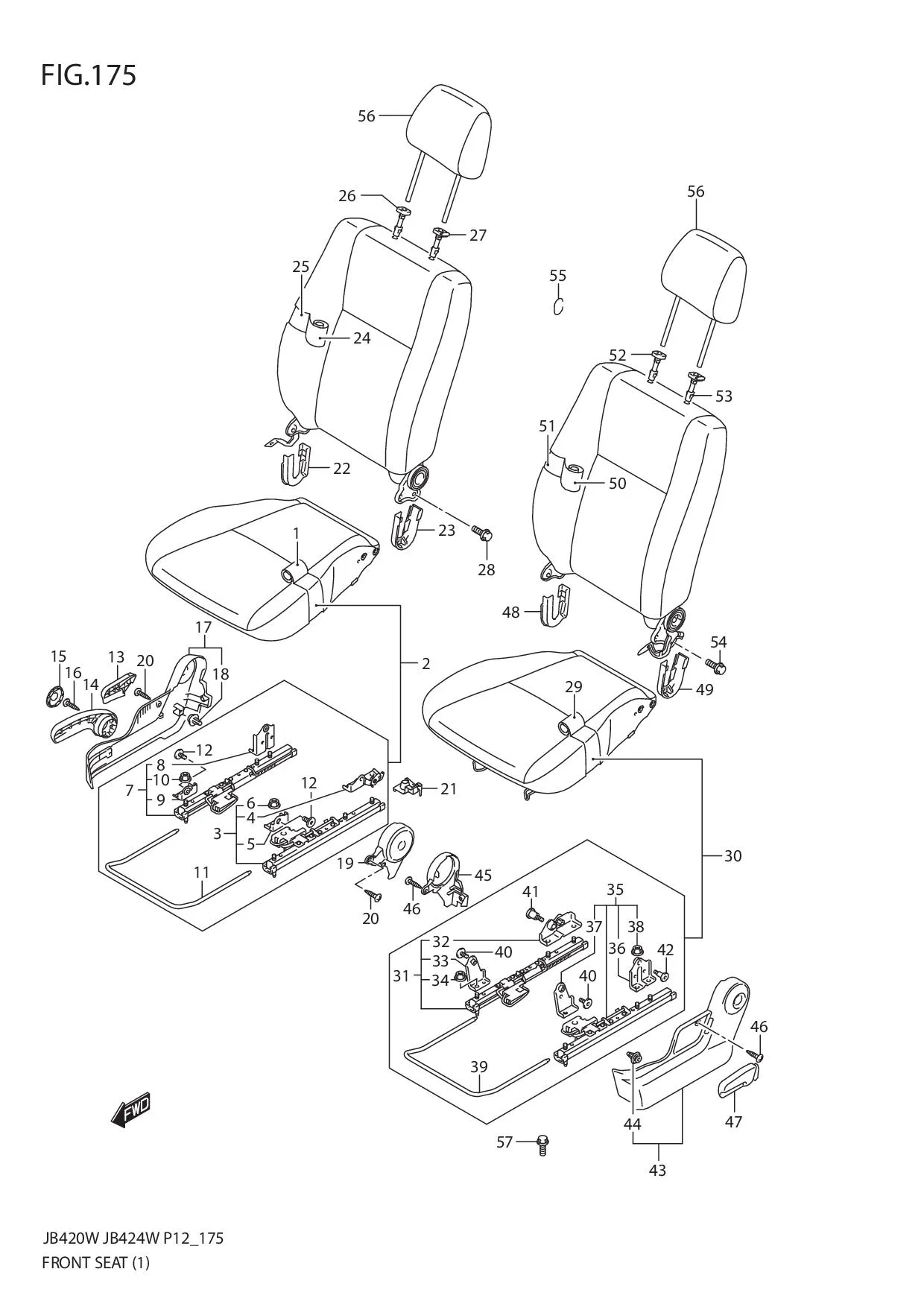

FIG.175 FRONT SEAT (JB420W)

FIG.175 FRONT SEAT (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 85180B63J20NBFN		 TRIM, CUSHION RH (BEIGE) 1 - DX
1-1 DISCONTINUE
SUB: 85180-63J20-DBS		 TRIM, CUSHION RH (BLACK) 1 - STD
2 DISCONTINUE
SUB: 85105B65J10N000		 CUSHION SUB ASSY, RH 1 -
3 DISCONTINUE
SUB: 86601-63J20-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
4 DISCONTINUE
SUB: 86712-63J20-000		 ••RISER, LIFTER REAR 1 -
5 DISCONTINUE
SUB: 86721-63J20-000		 ••RISER, LIFTER FRONT 1 -
6 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
7 DISCONTINUE
SUB: 86603-65J10-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
8 DISCONTINUE
SUB: 86641-65J10-000		 ••RISER, REAR 1 -
9 DISCONTINUE
SUB: 86710-65J10-000		 ••RISER, FRONT 1 -
10 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
11 DISCONTINUE
SUB: 86691-65J00-000		 •HANDLE, ADJUSTER 1 -
12 DISCONTINUE
SUB: 86717-63J30-000		 •BOLT 4 -
13-1 DISCONTINUE
SUB: 85211-63J00-5PK		 KNOB, RECLINING RH (BLACK) 1 - STD
13-2 85211-63J00-R8H KNOB, RECLINING RH (BEIGE) 1 Rp104.000 DX
14-1 DISCONTINUE
SUB: 85213-65J00-5PK		 LEVER, SEAT LIFTER (BLACK) 1 - STD
14-2 DISCONTINUE
SUB: 85213-65J00-R8H		 LEVER, SEAT LIFTER (BEIGE) 1 - DX
15-1 85214-63J20-5PK CAP, LIFTER LEVER (BLACK) 1 Rp50.000 STD
15-2 DISCONTINUE
SUB: 85214-63J20-R8H		 CAP, LIFTER LEVER (BEIGE) 1 - DX
16 09132-05043-000
SUB: 09132B05043N000		 SCREW (5X10) 2 Rp17.500
17-2 DISCONTINUE
SUB: 85220-65J00-R8H		 COVER, RECLINING OUTSIDE (BEIGE) 1 - DX
17-1 DISCONTINUE
SUB: 85220-65J00-5PK		 COVER, RECLINING OUTSIDE (BLACK) 1 - STD
18 85225-74G00-P4Z •CLIP, RECLINING COVER (GRAY) 2 Rp45.500
19-1 DISCONTINUE
SUB: 85241-63J00-5PK		 COVER, RECLINING INSIDE (BLACK) 1 - STD
19-2 DISCONTINUE
SUB: 85241-63J00-R8H		 COVER, RECLINING INSIDE (BEIGE) 1 - DX
20 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
21 DISCONTINUE
SUB: 85243-63J20-000		 COVER, RISER INSIDE 1 -
22-1 DISCONTINUE
SUB: 85222-63J00-5PK		 COVER, BACK FRAME RH (BLACK) 1 - STD
22-2 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, BACK FRAME RH (BEIGE) 1 - DX
23-2 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, BACK FRAME LH (BEIGE) 1 - DX
23-1 DISCONTINUE
SUB: 85242-63J00-5PK		 COVER, BACK FRAME LH (BLACK) 1 - STD
24-1 DISCONTINUE
SUB: 85380-63J60-DBS		 TRIM, BACK RH (BLACK) 1 - STD
24-2 DISCONTINUE
SUB: 85380B63J60NBFN		 TRIM, BACK RH (BEIGE) 1 - DX
25 DISCONTINUE
SUB: 85305B63JG0N000		 BACK SUB ASSY, RH 1 - 2AB
26-1 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - STD
26-2 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - DX
27-1 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - STD
27-2 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - DX
28 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
29-1 DISCONTINUE
SUB: 85680-63J00-DBS		 TRIM, CUSHION LH (BLACK) 1 - STD
29-2 DISCONTINUE
SUB: 85680B63J00NBFN		 TRIM, CUSHION LH (BEIGE) 1 - DX
30 DISCONTINUE
SUB: 85106-65J40-000		 CUSHION SUB ASSY, FRONT LH 1 -
31 DISCONTINUE
SUB: 86602-63J00-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
32 DISCONTINUE
SUB: 86762-63J00-000		 ••RISER, REAR 1 -
33 DISCONTINUE
SUB: 86770-63J00-000		 ••RISER, FRONT 1 -
34 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
35 DISCONTINUE
SUB: 86604-65J00-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
36 DISCONTINUE
SUB: 86641-65J00-000		 ••RISER, REAR 1 -
37 DISCONTINUE
SUB: 86760-65J00-000		 ••RISER, FRONT 1 -
38 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
39 DISCONTINUE
SUB: 86692-65J00-000		 •HANDLE, ADJUSTER 1 -
40 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 2 Rp6.000
41 DISCONTINUE
SUB: 86717-63J10-000		 •BOLT, RISER 1 -
42 DISCONTINUE
SUB: 86719-63J10-000		 •BOLT, RISER 1 -
43-1 DISCONTINUE
SUB: 85720-65J00-5PK		 COVER, RECLINING OUTSIDE (BLACK) 1 - STD
43-2 DISCONTINUE
SUB: 85720-65J00-R8H		 COVER, RECLINING OUTSIDE (BEIGE) 1 - DX
44 85225-74G00-P4Z •CLIP (GRAY) 2 Rp45.500
45-1 DISCONTINUE
SUB: 85741-63J00-5PK		 COVER, RECLINING INSIDE (BLACK) 1 - STD
45-2 DISCONTINUE
SUB: 85741-63J00-R8H		 COVER, RECLINING INSIDE (BEIGE) 1 - DX
46 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
47-2 DISCONTINUE
SUB: 85711-63J00-R8H		 KNOB, RECLINING LH (BEIGE) 1 - DX
47-1 DISCONTINUE
SUB: 85711-63J00-5PK		 KNOB, RECLINING LH (BLACK) 1 - STD
48-1 DISCONTINUE
SUB: 85222-63J00-5PK		 COVER, BACK FRAME RH (BLACK) 1 - STD
48-2 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, BACK FRAME RH (BEIGE) 1 - DX
49-1 DISCONTINUE
SUB: 85242-63J00-5PK		 COVER, BACK FRAME LH (BLACK) 1 - STD
49-2 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, BACK FRAME LH (BEIGE) 1 - DX
50-1 DISCONTINUE
SUB: 85380-63J60-DBS		 TRIM, BACK LH (BLACK) 1 - STD
50-2 DISCONTINUE
SUB: 85380B63J60NBFN		 TRIM, BACK LH (BEIGE) 1 - DX
51 DISCONTINUE
SUB: 85306B63JG0N000		 BACK SUB ASSY, FRONT LH 1 -
52-1 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (BLACK) 1 - STD
52-2 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - DX
53-1 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (BLACK) 1 - STD
53-2 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - DX
54 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
55 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 0 Rp9.000
56-1 DISCONTINUE
SUB: 86401-65J00-NL5		 HEADRESTRAINT ASSY (BLACK) 2 - STD
56-2 DISCONTINUE
SUB: 86401-65J00-S1K		 HEADRESTRAINT ASSY (BEIGE) 2 - DX
57 09119-08097-000 BOLT 8 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
