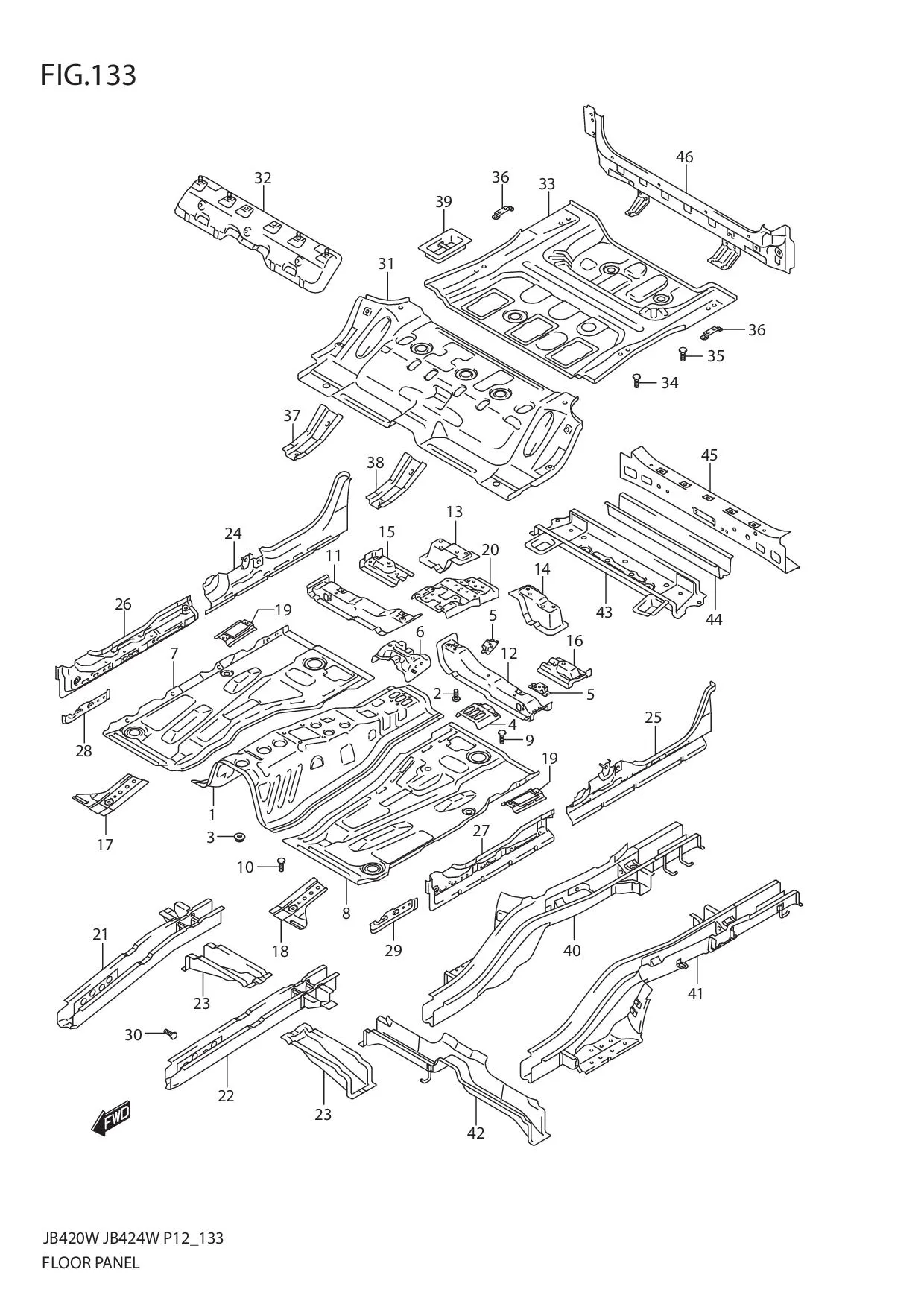

FIG.133 FLOOR PANEL

FIG.133 FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 61111-77K00-000		 PANEL MAIN FLOOR TUNNEL 1 - FROM 2008-6
1-1 DISCONTINUE
SUB: 61111-65J00-000		 PANEL MAIN FLOOR TUNNEL 1 -
2 09119-05018-000 BOLT, STUD 2 Rp13.000
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 4 Rp3.500
4 DISCONTINUE
SUB: 61112-65J00-000		 PATCH, MAIN FLOOR TUNNEL 1 -
5 DISCONTINUE
SUB: 61114-65J00-000		 BRACKET, SUB WOOFER 1 -
6 DISCONTINUE
SUB: 61115-65J00-000		 BRACKET, CONSOLE 1 -
7 DISCONTINUE
SUB: 61121-65J03-000		 PANEL, MAIN FLOOR SIDE RH 1 -
8-1 DISCONTINUE
SUB: 61131-65J13-000		 PANEL, MAIN FLOOR SIDE LH 1 - JB420W
8-2 DISCONTINUE
SUB: 61131-77K00-000		 PANEL, MAIN FLOOR SIDE LH 1 - JB424W
9 09119-05018-000 STUD BOLT (5X15) 1 Rp13.000
10-1 09119-06085-000 STUD BOLT (5X20) 2 Rp18.000 JB420W
10-2 09119-06085-000 STUD BOLT (5X20) 3 Rp18.000 JB424W
11 DISCONTINUE
SUB: 61141-65J01-000		 MEMBER, FR SEAT FR RH 1 -
12 DISCONTINUE
SUB: 61151-65J01-000		 MEMBER, FR SEAT FR LH 1 -
13-1 DISCONTINUE
SUB: 61160-65J00-000		 BRACKET, FR SEAT CTR RH 1 -
13-2 DISCONTINUE
SUB: 61160-77K00-000		 BRACKET, FR SEAT CTR RH 1 - FROM 2008-6
14-1 DISCONTINUE
SUB: 61170-65J00-000		 BRACKET, FR SEAT CTR LH 1 -
14-2 DISCONTINUE
SUB: 61170-77K00-000		 BRACKET, FR SEAT CTR LH 1 - FROM 2008-6
15 DISCONTINUE
SUB: 61171-65J00-000		 BRACKET, FR SEAT RR OUTSIDE RH 1 -
16 DISCONTINUE
SUB: 61172-65J00-000		 BRACKET, FR SEAT RR OUTSIDE LH 1 -
17 DISCONTINUE
SUB: 61181-65J01-000		 REINF, FLR SIDE MEMBER RH 1 -
18 DISCONTINUE
SUB: 61182-65J01-000		 REINF, FLR SIDE MEMBER LH 1 -
19 DISCONTINUE
SUB: 61183-65J00-000		 PATCH, MAIN FLOOR 2 -
20-1 DISCONTINUE
SUB: 61190-65J00-000		 BRACKET, PARKING BRAKE 1 -
20-2 DISCONTINUE
SUB: 61190-77K00-000		 BRACKET, PARKING BRAKE 1 - FROM 2008-6
21-1 DISCONTINUE
SUB: 61210-65J02-000		 MEMBER, SIDE FRAME RH 1 - TYPE 3
21-2 DISCONTINUE
SUB: 61210-77K00-000		 MEMBER, SIDE FRAME RH 1 - TYPE 4
22-1 DISCONTINUE
SUB: 61710-65J02-000		 MEMBER, SIDE FRAME LH 1 - TYPE 3
22-2 DISCONTINUE
SUB: 61710-77K00-000		 MEMBER, SIDE FRAME LH 1 - TYPE 4
23 DISCONTINUE
SUB: 61221-65J00-000		 MEMBER, FR SEAT RR SIDE 2 -
24 DISCONTINUE
SUB: 61310-65J10-000		 PANEL, SIDE SILL INR RR RH 1 -
25 DISCONTINUE
SUB: 61320-65J10-000		 PANEL, SIDE SILL INR RR LH 1 -
26 DISCONTINUE
SUB: 61311-65J01-000		 PANEL, SIDE SILL INR RH 1 -
27 DISCONTINUE
SUB: 61321-65J01-000		 PANEL, SIDE SILL INR LH 1 -
28 DISCONTINUE
SUB: 61313-65J01-000		 REINF, SIDE SILL INR FR RH 1 -
29 DISCONTINUE
SUB: 61323-65J01-000		 REINF, SIDE SILL INR FR LH 1 -
30 09119-05018-000 STUD BOLT (5X15) 4 Rp13.000
31 DISCONTINUE
SUB: 61511-65J01-000		 PANEL, RR FLOOR FR 1 -
32 DISCONTINUE
SUB: 61512-65J00-000		 CROSSMEMBER, RR FLOOR FR 1 -
33 DISCONTINUE
SUB: 61521-65J00-000		 PANEL, RR FLOOR RR 1 -
34 09119-05018-000 STUD BOLT (5X15) 3 Rp13.000
35 09119-06085-000 STUD BOLT (5X20) 2 Rp18.000
36 DISCONTINUE
SUB: 61522-65J00-000		 REINF, LUGGAGE HOOK 4 -
37 DISCONTINUE
SUB: 61531-65J00-000		 REINF, RR FLR SIDE MBR RH 1 -
38 DISCONTINUE
SUB: 61532-65J00-000		 REINF, RR FLR SIDE MBR LH 1 -
39 DISCONTINUE
SUB: 61540-65J00-000		 STRIKER, RR SEAT LOCK 3 -
40-1 DISCONTINUE
SUB: 62100-65J10-000		 MEMBER, RR FLOOR SIDE RH 1 - TYPE 3
40-2 DISCONTINUE
SUB: 62100-77K00-000		 MEMBER, RR FLOOR SIDE RH 1 - TYPE 4
41-1 DISCONTINUE
SUB: 62300-65JV0-000		 MEMBER, RR FLOOR SIDE LH 1 - TYPE 3
41-2 DISCONTINUE
SUB: 62300-77K00-000		 MEMBER, RR FLOOR SIDE LH 1 - TYPE 4
42 DISCONTINUE
SUB: 62610-77K00-000		 CROSSMEMBER, RR FLOOR NO.1 1 -
43 DISCONTINUE
SUB: 62710-65J01-000		 CROSSMEMBER, RR FLOOR NO.2 1 -
44 DISCONTINUE
SUB: 62811-65J00-000		 CROSSMEMBER, RR FLOOR NO.3 1 -
45 DISCONTINUE
SUB: 62911-65J00-000		 CROSSMEMBER, RR FLOOR NO.4 1 -
46 DISCONTINUE
SUB: 65510-65J00-000		 PANEL, BACK 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
