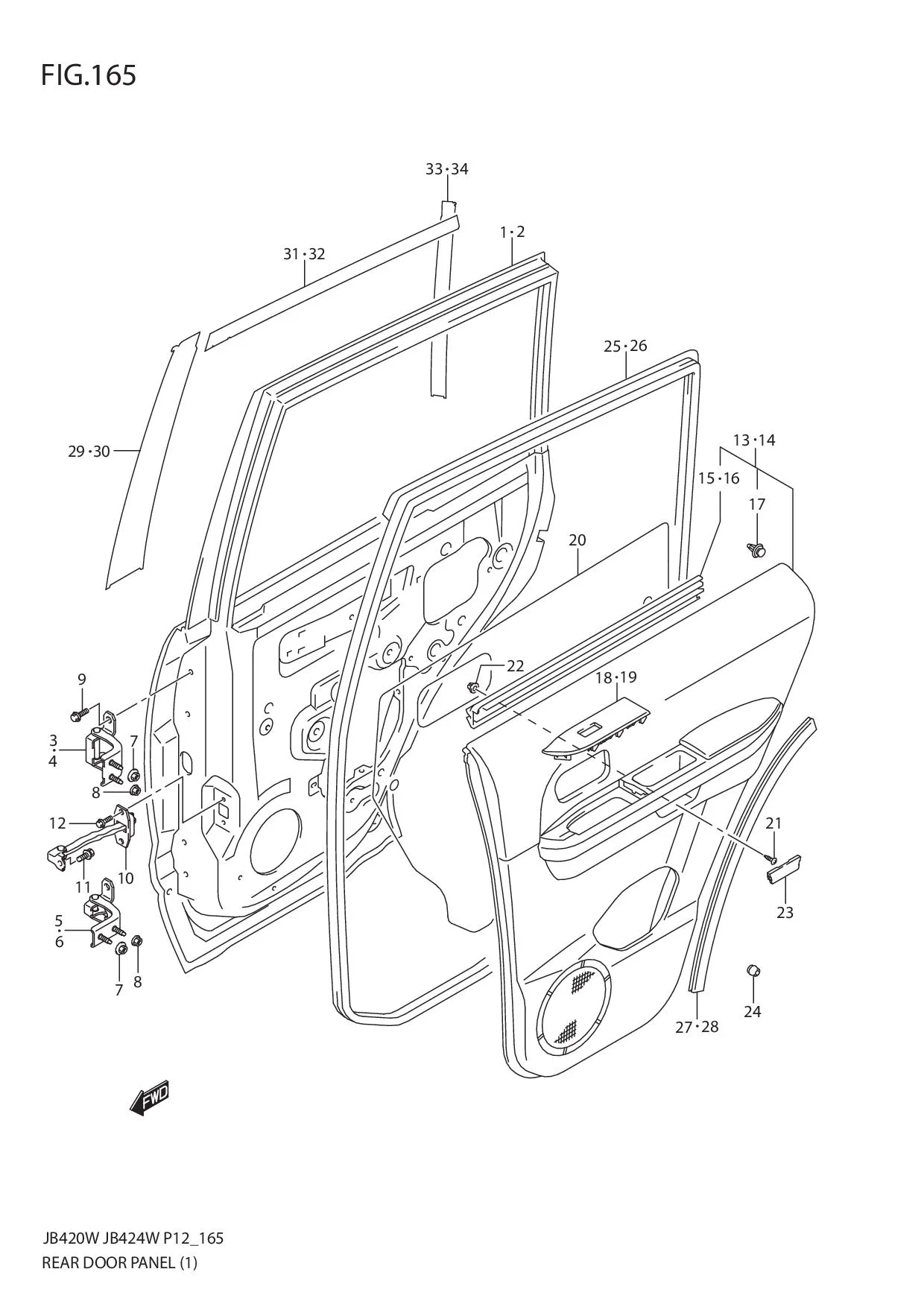

FIG.165 REAR DOOR PANEL (JB420W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003-65833-000 SUB: 68003-65832-000	PANEL ASSY, REAR DOOR RH	1	Rp9.149.000
2	68004-65833-000 SUB: 68004-65832-000	PANEL ASSY, REAR DOOR LH	1	Rp9.149.000
3	69410-63J00-000	HINGE, RR DOOR UPPER RH	1	Rp528.000
4	69420-63J00-000	HINGE, RR DOOR UPPER LH	1	Rp528.000
5	69430-63J00-000	HINGE, RR DOOR LOWER RH	1	Rp528.000
6	69440-63J00-000	HINGE, RR DOOR LOWER LH	1	Rp528.000
7	09159-08132-000	NUT	4	Rp19.500
8	DISCONTINUE SUB: 08316-2008A-000	NUT	4	-
9	09103M08557-000 SUB: 09103-08389-000	BOLT (8X24)	8	Rp8.500
10	81830-65J02-000	STOP, REAR DOOR OPEN	2	Rp376.000
11	09112-08004-000	BOLT (8X25)	2	Rp26.000
12	02162-0620A-000 SUB: 02162-0620C-000	BOLT	4	Rp5.500
13-1	DISCONTINUE SUB: 83730-65J00-FWH	TRIM, DOOR RH (BLACK/GRAY)	1	-	STD
13-2	DISCONTINUE SUB: 83730-65J00-CBY	TRIM, DOOR RH (BLACK/GRAY/WOOD/BEIGE)	1	-	DX
14-1	DISCONTINUE SUB: 83740-65J00-FWH	TRIM, DOOR LH (BLACK/GRAY)	1	-	STD
14-2	DISCONTINUE SUB: 83740-65J00-CBY	TRIM, DOOR LH (BLACK/GRAY/WOOD/BEIGE)	1	-	DX
15	83739-65J00-000	•WEATHERSTRIP, DOOR INNER RH	1	Rp473.500
16	83749-65J00-000	•WEATHERSTRIP, DOOR INNER LH	1	Rp473.500
17	09409-10327-000 SUB: 09409B10312N000	•CLIP	14	Rp5.000
18-1	DISCONTINUE SUB: 83737-65J00-5PK	BEZEL, P/W SWITCH REAR RH (BLACK)	1	-	STD
18-2	DISCONTINUE SUB: 83737-65J00-R9S	BEZEL, P/W SWITCH REAR RH (WOOD)	1	-	DX
19-1	DISCONTINUE SUB: 83747-65J00-5PK	BEZEL, P/W SWITCH REAR LH (BLACK)	1	-	STD
19-2	DISCONTINUE SUB: 83747-65J00-R9S	BEZEL, P/W SWITCH REAR LH (WOOD)	1	-	DX
20	DISCONTINUE SUB: 83913-65J00-000	COVER, DOOR SEALING	2	-
21	03241-0616A-000	SCREW	2	Rp11.500
22	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
23-1	DISCONTINUE SUB: 83715-65J00-5PK	CAP, DOOR TRIM (BLACK)	2	-	STD
23-2	83715-65J00-R8H	CAP, DOOR TRIM (BEIGE)	2	Rp56.000	DX
24	82711-65J00-000	STOPPER, DOOR	2	Rp34.000
25	84661-65J00-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp1.135.000
26	84671-65J00-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp1.135.000
27	84662-65J04-000	WEATHERSTRIP, DOOR DUST RH	1	Rp808.000
28	84672-65J04-000	WEATHERSTRIP, DOOR DUST LH	1	Rp839.000
29	DISCONTINUE SUB: 83927B65J01N0CB	TAPE, SASH PILLAR RH (BLACK)	1	-
30	DISCONTINUE SUB: 83928B65J01N0CB	TAPE, SASH PILLAR LH (BLACK)	1	-
31	DISCONTINUE SUB: 83915B65J01N0CB	TAPE, SASH ROOF RH (BLACK)	1	-
32	DISCONTINUE SUB: 83916B65J01N0CB	TAPE, SASH ROOF LH (BLACK)	1	-
33	DISCONTINUE SUB: 83917B65J01N0CB	TAPE, SASH C-PILLAR RH (BLACK)	1	-
34	DISCONTINUE SUB: 83918B65J01N0CB	TAPE, SASH C-PILLAR LH (BLACK)	1	-
