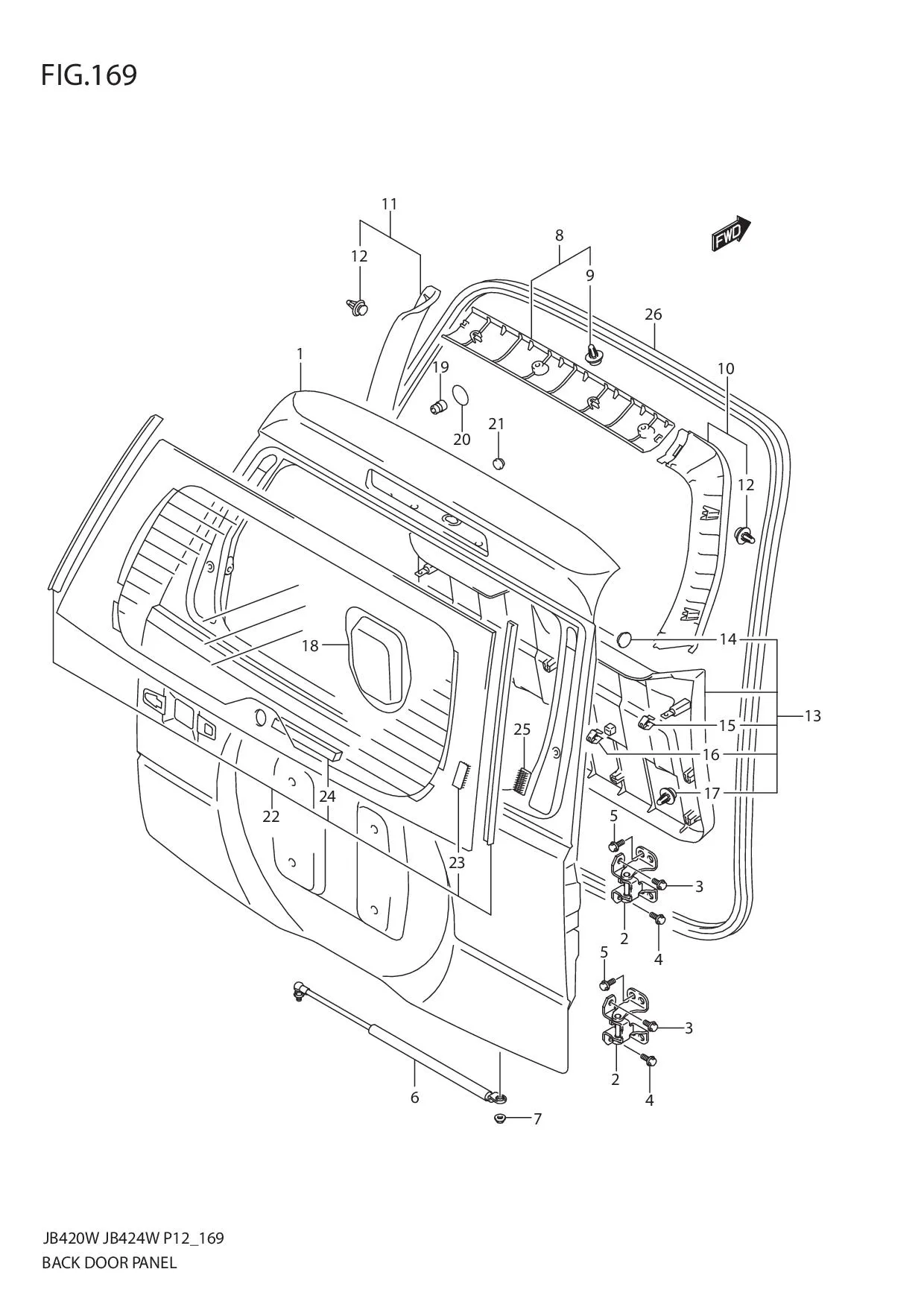

FIG.169 BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100-65850-000	PANEL ASSY, BACK DOOR	1	Rp9.218.500
2	69510-65J01-000 SUB: 69510-65J00-000	HINGE, BACK DOOR	2	Rp416.500
3	09113-08001-000	BOLT (8X20)	2	Rp18.500
4	01551-0825A-000	BOLT	2	Rp16.000
5	01551-0825A-000	BOLT	8	Rp16.000
6-1	81800-65820-000	BALANCER, BACK DOOR	1	Rp1.277.500
6-2	81800-65830-000	BALANCER, BACK DOOR	1	Rp1.360.000	FROM 2006-6
7	09159-06076-000	NUT	1	Rp19.500
8	DISCONTINUE SUB: 83760-65J00-6GS	TRIM, BACK DOOR UPPER (GRAY)	1	-
9	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
10	DISCONTINUE SUB: 83780-65J00-6GS	TRIM, BACK DOOR UPPER RH (GRAY)	1	-
11	83790-65J00-6GS	TRIM, BACK DOOR UPPER LH (GRAY)	1	Rp460.000
12	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
13-1	83770-65J00-5PK	TRIM, BACK DOOR LOWER (BLACK)	1	Rp2.311.000	TYPE 3:STD TYPE 4
13-2	83770-65J00-R8H	TRIM, BACK DOOR LOWER (BEIGE)	1	Rp3.017.000	TYPE 3:DX TYPE 4
14-1	DISCONTINUE SUB: 83772-75H00-5PK	•CAP, BACK DOOR TRIM (BLACK)	1	-	TYPE 3:STD TYPE 4
14-2	DISCONTINUE SUB: 83772-75H00-R8H	•CAP, BACK DOOR TRIM (BEIGE)	1	-	TYPE 3:DX TYPE 4
15	09409-06324-000 SUB: 09409B06324N000	•CLIP	2	Rp13.500
16	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
17	09409-10327-000 SUB: 09409B10312N000	•CLIP	10	Rp5.000
18	DISCONTINUE SUB: 83951-65J00-000	COVER, BACK DOOR SEALING	1	-
19	82683-60B10-000	CUSHION, BACK DOOR SIDE	1	Rp33.500
20	DISCONTINUE SUB: 77191-76F00-000	FILM, BACK DOOR	1	-
21	82711-65J00-000	STOPPER, BACK DOOR	1	Rp34.000
22	DISCONTINUE SUB: 84580B65J01N000	GLASS, BACK DOOR WINDOW (GREEN)	1	-
23	84513-65D00-000	•MALE	2	Rp44.500
24	84582-65J00-000	•SPACER, WINDOW GLASS	2	Rp41.000
25	84515-65D00-000	FEMALE	2	Rp45.500
26-1	84681-65J00-000	WEATHERSTRIP, OPENING	1	Rp1.067.500	TYPE 3
26-2	84681-65J10-000	WEATHERSTRIP, OPENING	1	Rp1.197.500	TYPE 4
