GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.130 FRONT HOOD PANEL FIG.131 FRONT FENDER FIG.132 FRONT BODY PANEL FIG.133 FLOOR PANEL FIG.134 SIDE BODY PANEL FIG.135 ROOF PANEL FIG.136 FRONT BUMPER (JB420W)FIG.137 FRONT BUMPER (JB424W)FIG.138 REAR BUMPER FIG.139 INSTRUMENT PANEL (JB420W)FIG.140 INSTRUMENT PANEL (JB424W)FIG.141 VENTILATOR FIG.142 HEATER UNIT (JB420W)FIG.143 HEATER UNIT (JB424W)FIG.144 HEATER CONTROL FIG.145 CONSOLE BOX (JB420W)FIG.146 CONSOLE BOX (JB424W)FIG.147 FLOOR CARPET FIG.148 INTERIOR TRIM (JB420W)FIG.149 INTERIOR TRIM (JB424W)FIG.150 COVER/CAP FIG.151 FUEL LID OPENER FIG.152 ROOF LINING FIG.153 EMBLEM FIG.154 GARNISH (JB420W)FIG.155 GARNISH (JB424W)FIG.156 SPLASH GUARD (JB420W)FIG.157 SPLASH GUARD (JB424W)FIG.158 WINDSHIELD GLASS FIG.159 TIRE CARRIER (JB420W)FIG.160 TIRE CARRIER (JB424W)FIG.161 FRONT DOOR PANEL (JB420W)FIG.162 FRONT DOOR PANEL (JB424W)FIG.163 FRONT DOOR REGULATOR FIG.164 FRONT DOOR LOCK FIG.165 REAR DOOR PANEL (JB420W)FIG.166 REAR DOOR PANEL (JB424W)FIG.167 REAR DOOR REGULATOR FIG.168 REAR DOOR LOCK FIG.169 BACK DOOR PANEL FIG.170 BACK DOOR LOCK FIG.171 MIRROR/SUNVISOR (JB420W)FIG.172 MIRROR/SUNVISOR (JB424W)FIG.173 SEAT BELT (JB420W)FIG.174 SEAT BELT (JB424W)FIG.175 FRONT SEAT (JB420W)FIG.176 FRONT SEAT (JB424W)FIG.177 REAR RH SEAT (JB420W)FIG.178 REAR RH SEAT (JB424W)FIG.179 REAR LH SEAT (JB420W)FIG.180 REAR LH SEAT (JB424W)FIG.181 FUEL TANK (JB420W)FIG.182 FUEL TANK (JB424W)FIG.183 TOOL FIG.184 AIR CON PIPING (JB420W)FIG.185 AIR CON PIPING (JB424W)FIG.186 COMPRESSOR (JB420W)FIG.187 COMPRESSOR (JB424W)

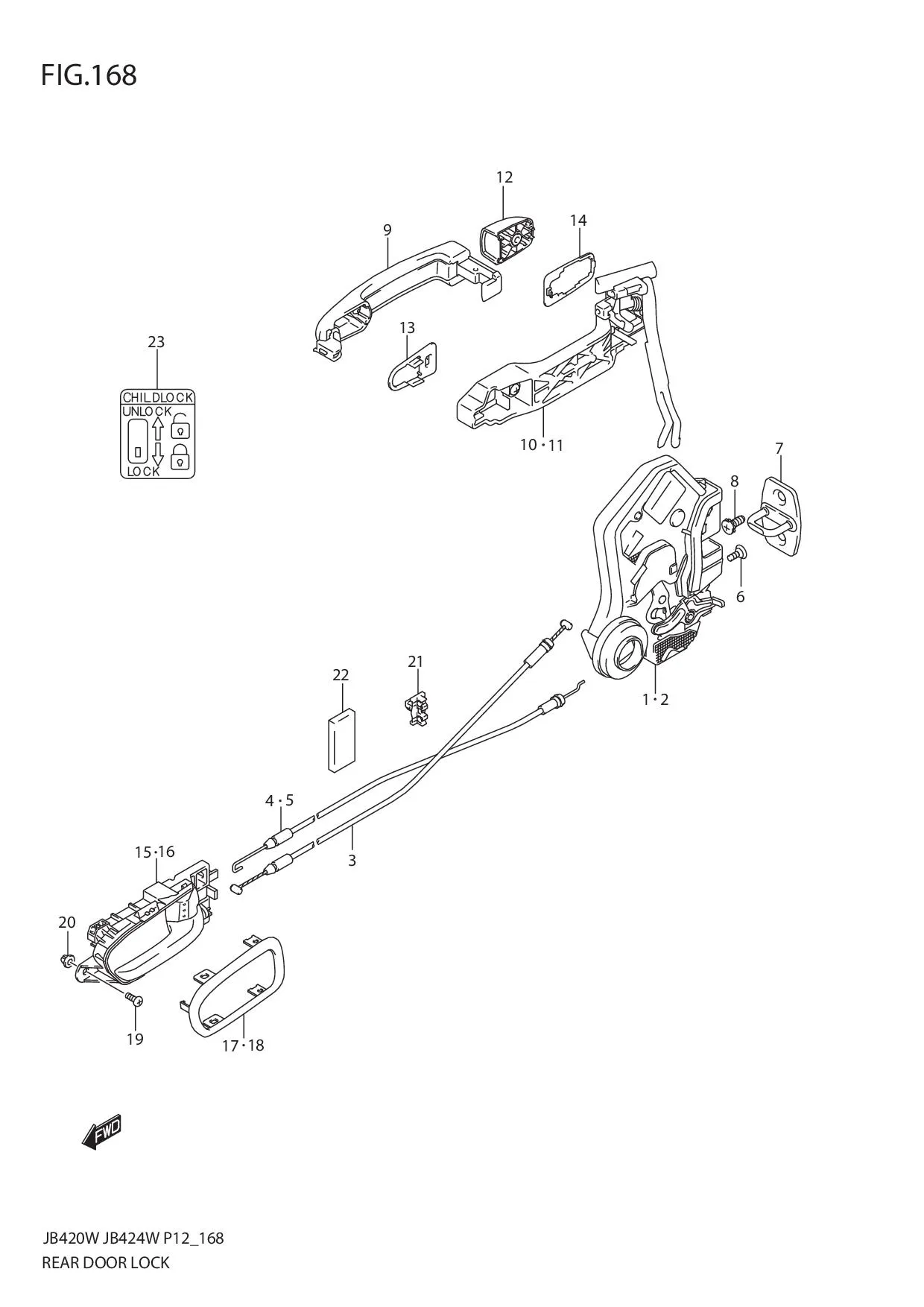

FIG.168 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82310-65J16-000 SUB: 82310-65J11-000	LATCH ASSY, REAR DOOR RH	1	Rp2.332.500
2	82350-65J17-000 SUB: 82350-65J11-000	LATCH ASSY, REAR DOOR LH	1	Rp2.279.000
3	82323-65J00-000	CABLE, INSIDE HANDLE	2	Rp133.500
4	82324-65J00-000	CABLE, INSIDE LOCK RH	1	Rp85.500
5	82364-65J00-000	CABLE, INSIDE LOCK LH	1	Rp126.500
6	09137-06028-000	SCREW (6X17)	6	Rp18.500
7	82610-65J00-000	STRIKER, DOOR LATCH	2	Rp146.500
8	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
9-1	82812-63J00-ZDL	HANDLE, DOOR OUT (GRAY)	2	Rp529.000
9-2	82812-63J00-ZFN	HANDLE, DOOR OUT (BLUE)	2	Rp715.500
9-3	82812-63J00-Z2S	HANDLE, DOOR OUT (SILVER)	2	Rp476.000
9-4	DISCONTINUE SUB: 82812-63J00-26U	HANDLE, DOOR OUT (WHITE)	2	-
10	82831-63J10-000	FRAME, DOOR OUT RH	1	Rp518.500
11	82841-63J10-000	FRAME, DOOR OUT LH	1	Rp469.000
12-3	82833-63J00-Z2S	CAP, DOOR OUT (SILVER)	2	Rp203.500
12-4	DISCONTINUE SUB: 82833-63J00-26U	CAP, DOOR OUT (WHITE)	2	-
12-1	82833-63J00-ZDL	CAP, DOOR OUT (GRAY)	2	Rp264.500
12-2	DISCONTINUE SUB: 82833-63J00-ZFN	CAP, DOOR OUT (BLUE)	2	-
13	82834-63J00-000	PAD, DOOR OUT	2	Rp65.000
14	82815-63J00-000	CUSHION, DOOR OUT	2	Rp48.500
15-1	DISCONTINUE SUB: 83110-65J10-BWJ	HANDLE, DOOR INSIDE RH (BLACK/GRAY)	1	-	TYPE 3:STD TYPE 4
15-2	83110-65J10-CVU	HANDLE, DOOR INSIDE RH (BLACK/GRAY)	1	Rp578.500	TYPE 3:DX TYPE 4
16-1	83130-65J10-BWJ	HANDLE, DOOR INSIDE LH (BLACK/GRAY)	1	Rp420.000	TYPE 3:STD TYPE 4
16-2	83130-65J10-CVU	HANDLE, DOOR INSIDE LH (BLACK/GRAY)	1	Rp578.500	TYPE 3:DX TYPE 4
17-1	DISCONTINUE SUB: 83178-65J00-5PK	BEZEL, INSIDE HANDLE RH (BLACK)	1	-	TYPE 3:STD TYPE 4
17-2	DISCONTINUE SUB: 83178-65J00-R8H	BEZEL, INSIDE HANDLE RH (BEIGE)	1	-	TYPE 3:DX TYPE 4
18-1	DISCONTINUE SUB: 83179-65J00-5PK	BEZEL, INSIDE HANDLE LH (BLACK)	1	-	TYPE 3:STD TYPE 4
18-2	83179-65J00-R8H	BEZEL, INSIDE HANDLE LH (BEIGE)	1	Rp271.000	TYPE 3:DX TYPE 4
19	03241-0616A-000	SCREW	2	Rp11.500
20	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
21	83271M50E00-000 SUB: 83271-50E00-000	CLIP	2	Rp6.500
22	77591M75000-000 SUB: 77591-75000-000	PAD	2	Rp7.000
23	86951-54G00-000 SUB: 86951B54G00N000	PLATE, CHILD LOCK CAUTION	2	Rp14.500
