SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.83 FRONT HOOD PANELFIG.84 FRONT FENDERFIG.85 FRONT BODY PANELFIG.86 FLOOR PANELFIG.87 SIDE BODY PANELFIG.88 ROOF PANELFIG.89 FRONT BUMPERFIG.90 REAR BUMPERFIG.91 INSTRUMENT PANELFIG.92 VENTILATORFIG.93 HEATER UNITFIG.94 CONSOLE? BOXFIG.95 FLOOR CARPETFIG.96 INTERIOR TRIMFIG.97 COVER/CAPFIG.98 FUEL LID OPENERFIG.99 ROOF LININGFIG.100 MOLDINGFIG.101 SPLASH GUARDFIG.102 EMBLEMFIG.103 WINDSHIELDFIG.104 FRONT DOOR PANELFIG.105 FRONT DOOR REGURATORFIG.106 FRONT DOOR LOCKFIG.107 REAR DOOR PANELFIG.108 REAR DOOR REGULATORFIG.109 REAR DOOR LOCKFIG.110 BACK DOOR PANELFIG.111 BACK DOOR LOCKFIG.112 MIRROR/SUNVISORFIG.113 SEAT BELTFIG.114 FR RH SEATFIG.115 FR LH SEATFIG.116 REAR SEATFIG.117 PARCEL SHELFFIG.118 FUEL TANKFIG.119 TOOLFIG.120 AIR CONDITIONERFIG.121 COMPRESSOR

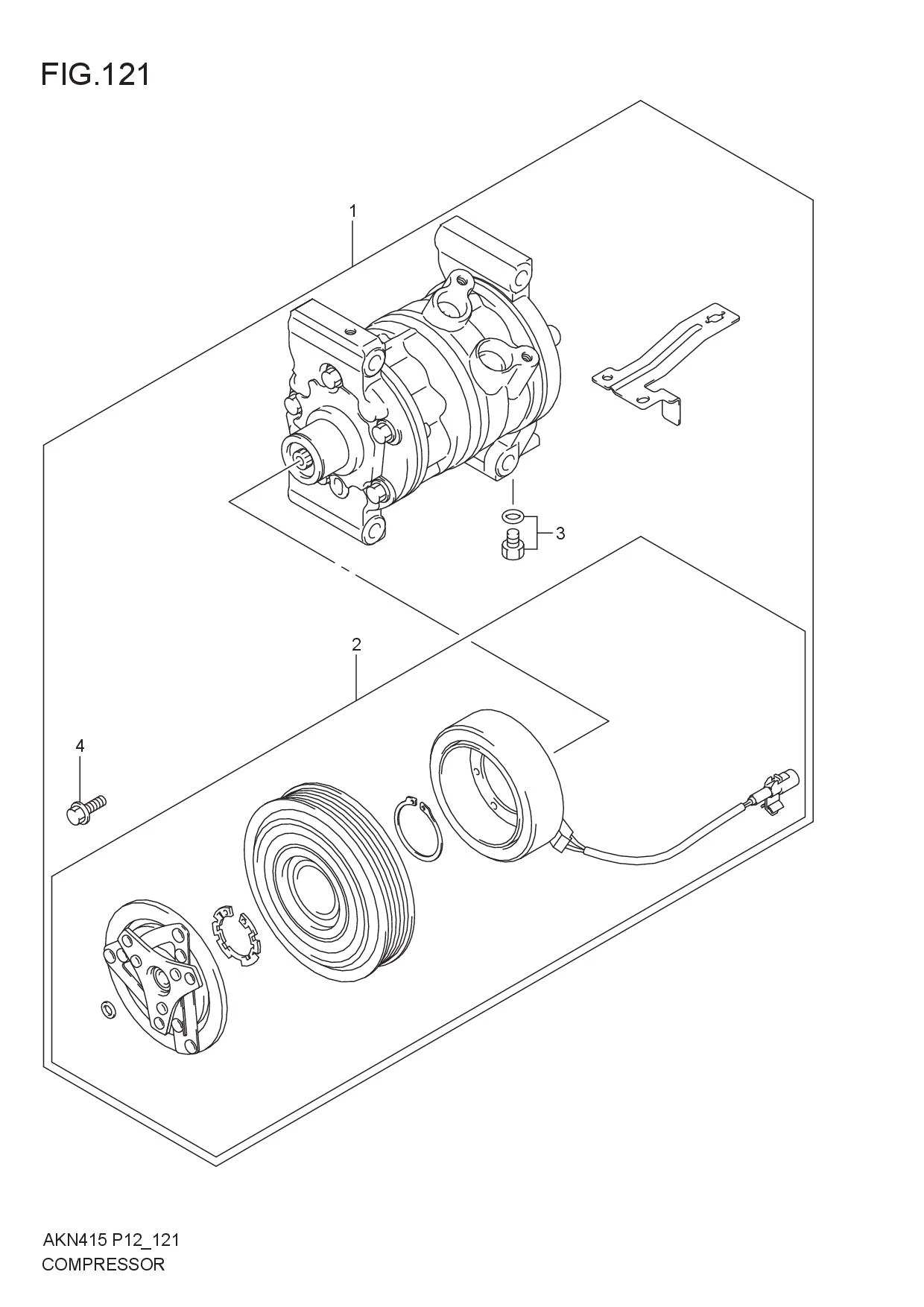

FIG.121 COMPRESSOR

FIG.121 COMPRESSOR
No No. Part Description Qty Price Per Pcs Remarks
1 95200M68KG0-000 COMPRESSOR ASSY 1 Rp7.625.500
2 95210M68KG0-000 .MAGNET CLUTCH 1 Rp2.782.500
3 95271-68KA1-000
SUB: 95271B68KA1N000		 .VALVE RELIEF 1 Rp144.000
4 01550-0620B-000
SUB: 01550B0620AN000		 .BOLT 2 Rp3.500
4 01550-0620B-000
SUB: 01550B0620AN000		 .BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
