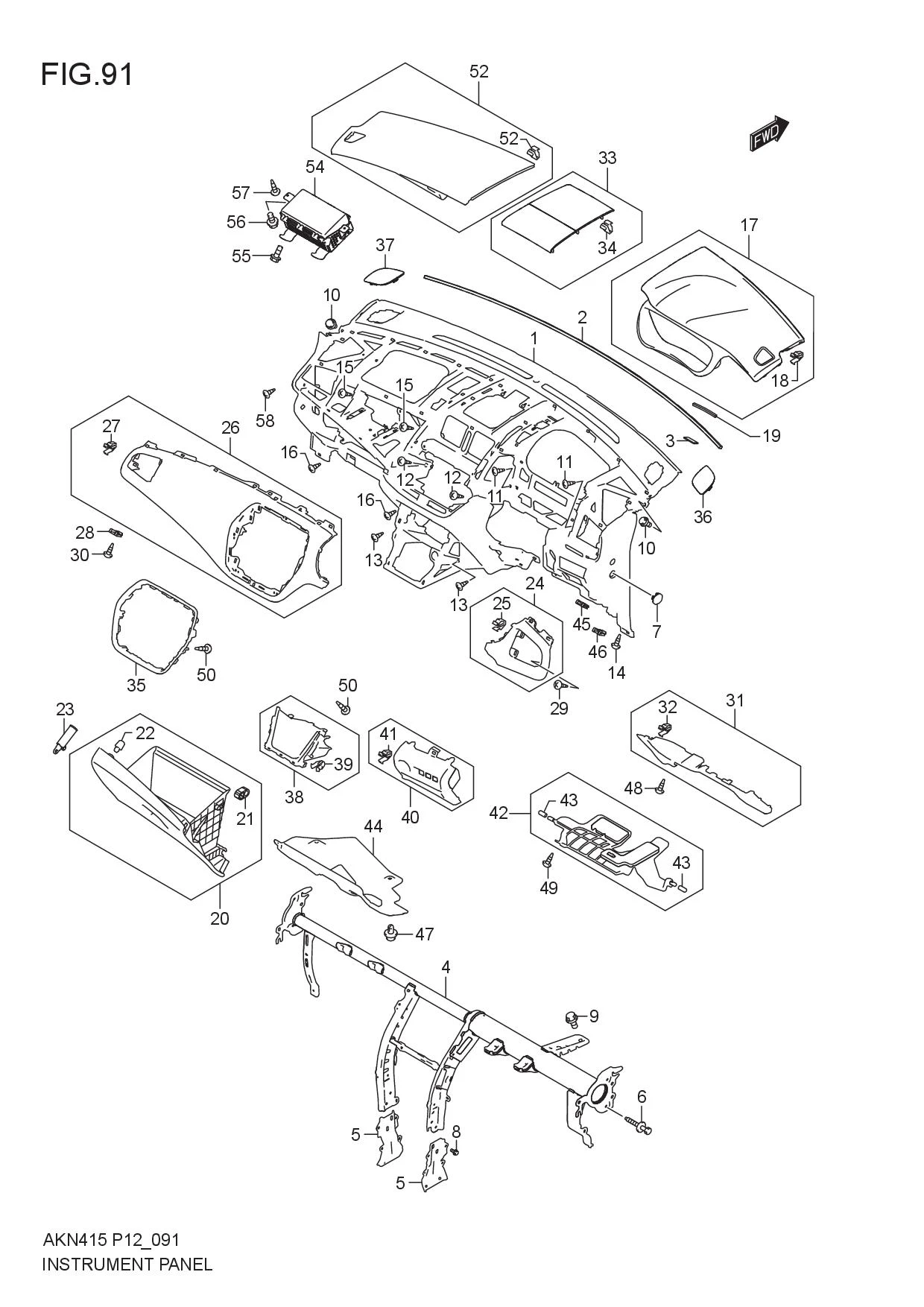

FIG.91 INSTRUMENT PANEL

FIG.91 INSTRUMENT PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 73111M65M01-5PK PANEL, INSTRUMENT MAIN (BLACK) 1 Rp1.056.500
2 73114-61M00-000 SILENCER, I/P TOP 1 Rp315.500
3 73123-61M00-000 FELT, I/P TOP 5 Rp16.000
4 73200M65M00-000 MEMBER , STEERING SUPPORT 1 Rp933.000
5 73261M61M00-000 BRACE, STRG SUPPORT MBR LOWER 2 Rp27.000
6 73291-50G20-000 BOLT, STRG SUPPORT MEMBER SIDE 4 Rp42.500
7 73871-73H00-5PK CAP, I/P SIDE (BLACK) 3 Rp43.500
8 01551-0816C-000
SUB: 01551-0816A-000		 BOLT 8 Rp13.500
9 01551-0816C-000
SUB: 01551-0816A-000		 BOLT 1 Rp13.500
10 02162-0612A-000 SCREW 2 Rp11.000
11 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
12 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
13 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
14 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 1 Rp3.500
15 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
16 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 1 Rp3.500
17 73310M65M00-5PK
SUB: 73311M65M00-5PK		 PANEL, INSTRUMENT CLUSTER (BLACK) 1 Rp201.000
18 09409M08344-000 .CLIP 9 Rp4.500
19 73314-62J00-000 SEAL, I/P CLUSTER 1 Rp34.000
20 73410M65M00-5PK BOX , GLOVE (BLACK) 1 Rp408.000
21 73413M65D00-000 .CUSHION, GLOVE BOX SIDE 2 Rp6.500
22 73461M53M00-000 .CUSHION, GLOVE BOX 2 Rp7.000
23 73440-50J11-000 DAMPER , GLOVE BOX 1 Rp103.000
24 73511M61M00-5PK GARNISH, I/P DRVR 1 Rp983.000
25 09409-08349-000
SUB: 09409B08342N000		 .CLIP (BLACK(( 5 Rp4.500
26 73512M61M00-5PK GARNISH, I/P ASST (BLACK) 1 Rp2.157.500
27 09409-08349-000
SUB: 09409B08342N000		 .CLIP 14 Rp4.500
28 09148M05L04-000 NUT 3 Rp5.000
29 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
30 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 3 Rp3.500
31 73811M65M20-5PK COVER, STRG COLUMN HOLE (BLACK) 1 Rp102.500
32 09409M08344-000 .CLIP 3 Rp4.500
33 73823M65M00-5PK GARNISH, I/P CTR SPEAKER (BLACK) 1 Rp72.500
34 09409M08344-000 .CLIP 7 Rp4.500
35 73825M61M00-ZML ORNAMENT, I/P CENTER (SILVER) 1 Rp165.500
36 73826M61M00-5PK COVER, I/P TWEETER, R (BLACK) 1 Rp11.000
37 73827M61M00-5PK COVER, I/P TWEETER, L (BLACK) 1 Rp11.000
38 73828M65M10-5PK BOX, I/P CENTER LOWER (BLACK) 1 Rp51.500
39 09409M08344-000 .CLIP 4 Rp4.500
40 73830M65M30-5PK BEZEL , I/P SW (BLACK) 1 Rp91.500
41 09409M08344-000 .CLIP 1 Rp4.500
42 73870M61M00-000 COVER , I/P UNDER DRVR 1 Rp98.500
43 73132-57L00-000 .CAP, I/P UNDER COVER 2 Rp38.000
44 73881M65M01-000
SUB: 73881M65M00-000		 COVER, I/P UNDER ASST 1 Rp153.500
45 09148M05L04-000 NUT 2 Rp5.000
46 09148M05L04-000 NUT 2 Rp5.000
47 09409M07L01-000 CLIP 4 Rp5.000
48 03241M0516A-000
SUB: 03141M0516A-000		 SCREW 2 Rp4.500
49 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
50 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 7 Rp3.500
51 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
52 73910M61M00-5PK DOOR ASSY, PASSENGER AIR BAG (BLACK) 1 Rp2.989.000
53 09409-08349-000
SUB: 09409B08342N000		 .CLIP 12 Rp4.500
54 73920M65M00-000 HOUSING ASSY, PASSENGER AIR BAG 1 Rp4.003.000
55 01551-0816C-000
SUB: 01551-0816A-000		 BOLT 2 Rp13.500
56 02162-0612A-000 BOLT 2 Rp11.000
57 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
58 09125M05142-000 SCREW 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
