SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.83 FRONT HOOD PANELFIG.84 FRONT FENDERFIG.85 FRONT BODY PANELFIG.86 FLOOR PANELFIG.87 SIDE BODY PANELFIG.88 ROOF PANELFIG.89 FRONT BUMPERFIG.90 REAR BUMPERFIG.91 INSTRUMENT PANELFIG.92 VENTILATORFIG.93 HEATER UNITFIG.94 CONSOLE? BOXFIG.95 FLOOR CARPETFIG.96 INTERIOR TRIMFIG.97 COVER/CAPFIG.98 FUEL LID OPENERFIG.99 ROOF LININGFIG.100 MOLDINGFIG.101 SPLASH GUARDFIG.102 EMBLEMFIG.103 WINDSHIELDFIG.104 FRONT DOOR PANELFIG.105 FRONT DOOR REGURATORFIG.106 FRONT DOOR LOCKFIG.107 REAR DOOR PANELFIG.108 REAR DOOR REGULATORFIG.109 REAR DOOR LOCKFIG.110 BACK DOOR PANELFIG.111 BACK DOOR LOCKFIG.112 MIRROR/SUNVISORFIG.113 SEAT BELTFIG.114 FR RH SEATFIG.115 FR LH SEATFIG.116 REAR SEATFIG.117 PARCEL SHELFFIG.118 FUEL TANKFIG.119 TOOLFIG.120 AIR CONDITIONERFIG.121 COMPRESSOR

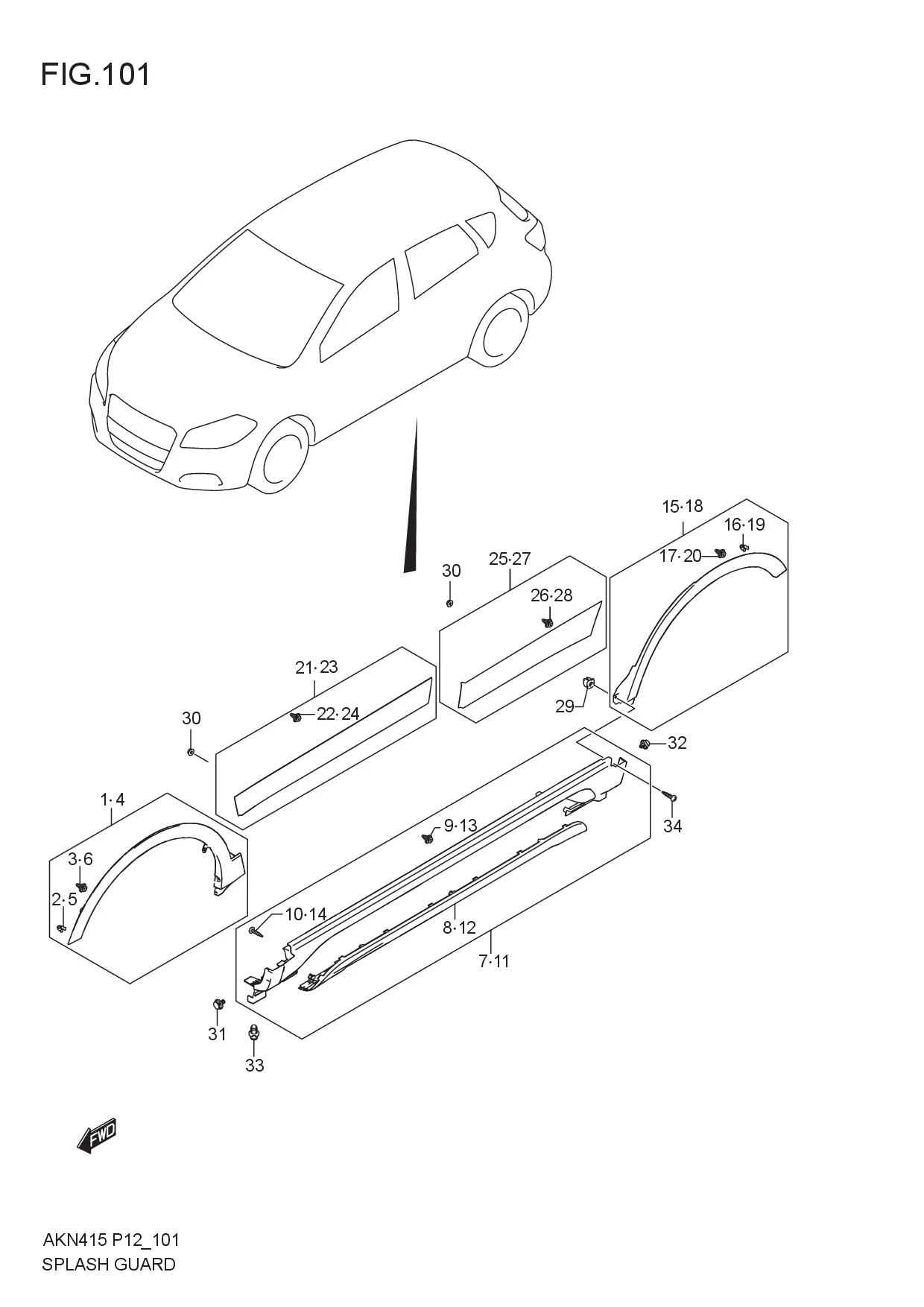

FIG.101 SPLASH GUARD

FIG.101 SPLASH GUARD
No No. Part Description Qty Price Per Pcs Remarks
1 77210M64M00-5PK GUARD ASSY, FR FENDER SPLASH,R (BLACK) 1 Rp181.500
2 09409M08344-000 .CLIP 1 Rp4.500
3 09409M10321-000 .CLIP 7 Rp5.000
4 77220M64M00-5PK GUARD ASSY, FR FENDER SPLASH,L (BLACK) 1 Rp181.500
5 09409M08344-000 .CLIP 1 Rp4.500
6 09409M10321-000 .CLIP 7 Rp5.000
7 77230M64M11-ASK
SUB: 77230M64M10-ASK		 GUARD ASSY, SIDE SILL SPLASH,R (BLACK/SILVER) 1 Rp760.500
8 77232M61M10-PER .GARNISH, SIDE SILL SPLASH, R (SILVER) 1 Rp186.500
9 71812M78F00-000
SUB: 71812M60M00-000		 .CLIP, SIDE SILL GUARD 6 Rp8.000
10 03541-0516A-000
SUB: 03541B0516AN000		 .SCREW 5 Rp3.500
11 77240M64M11-ASK
SUB: 77240M64M10-ASK		 GUARD ASSY, SIDE SILL SPLASH,L (BLACK/SILVER) 1 Rp760.500
12 77242M61M10-PER .GARNISH, SIDE SILL SPLASH, L (SILVER) 1 Rp182.500
13 71812M78F00-000
SUB: 71812M60M00-000		 .CLIP, SIDE SILL GUARD 6 Rp8.000
14 03541-0516A-000
SUB: 03541B0516AN000		 .SCREW 5 Rp3.500
15 77250M64M00-5PK GUARD ASSY, RR FENDER SPLASH,R (BLACK) 1 Rp155.000
16 09409M08344-000 .CLIP 1 Rp4.500
17 09409M10321-000 .CLIP 5 Rp5.000
18 77260M64M00-5PK GUARD ASSY, RR FENDER SPLASH, L (BLACK) 1 Rp155.000
19 09409M08344-000 .CLIP 1 Rp4.500
20 09409M10321-000 .CLIP 5 Rp5.000
21 77510M64M00-5PK GUARD ASSY, FR DOOR SPLASH, R (BLACK) 1 Rp202.000
22 09409M10321-000 .CLIP 10 Rp5.000
23 77520M64M00-5PK GUARD ASSY, FR DOOR SPLASH, L (BLACK) 1 Rp202.000
24 09409M10321-000 .CLIP 10 Rp5.000
25 77530M64M00-5PK GUARD ASSY, RR DOOR SPLASH, R (BLACK) 1 Rp186.500
26 09409M10321-000 .CLIP 7 Rp5.000
27 77540M64M00-5PK GUARD ASSY, RR DOOR SPLASH, L (BLACK) 1 Rp186.500
28 09409M10321-000 .CLIP 7 Rp5.000
29 09148-05044-000 NUT 4 Rp18.000
30 09159-05052-000 NUT 8 Rp18.000
31 09409M07L01-000 CLIP 8 Rp5.000
32 09409M07L01-000 CLIP 2 Rp5.000
33 09409M15L01-000 CLIP 12 Rp5.500
34 03511-0512E-000 SCREW 4 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
