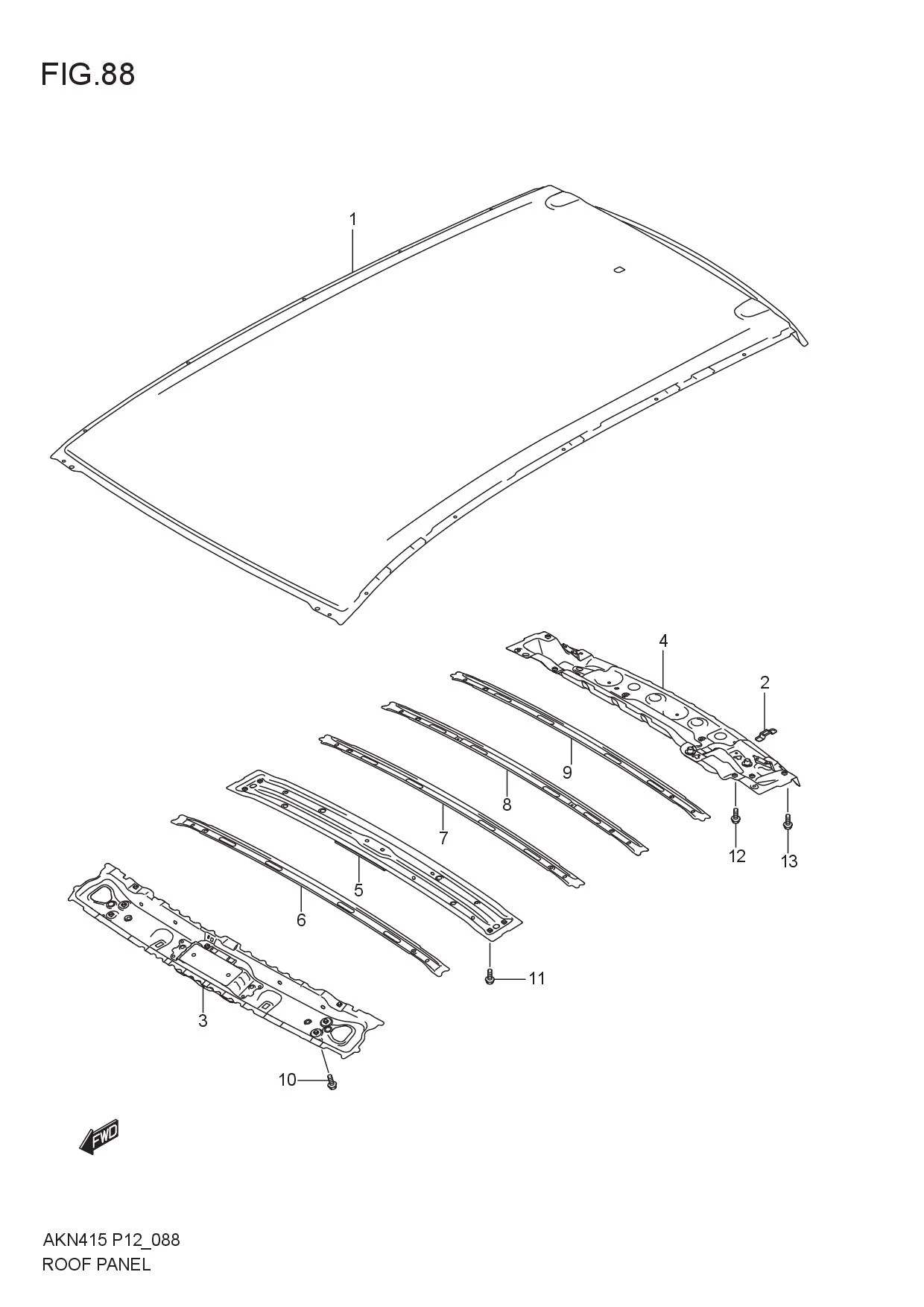

FIG.88 ROOF PANEL

FIG.88 ROOF PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 65111M64M00-000 PANEL, ROOF 1 Rp3.048.000
2 65112M61M00-000 BRACKET, ROOF RAIL 2 Rp9.000
3 65120M64M00-000 MEMBER, ROOF FRONT INNER 1 Rp579.500
4 65130M64M00-000 MEMBER, ROOF BACK INNER 1 Rp485.000
5 65150M64M00-000 MEMBER, ROOF PANEL CTR 1 Rp256.000
6 65161M61M00-000 MEMBER, ROOF PANEL NO.1 1 Rp55.000
7 65162M61M00-000 MEMBER, ROOF PANEL NO.2 1 Rp57.000
8 65163M61M00-000 MEMBER, ROOF PANEL NO.3 1 Rp57.000
9 65164M61M00-000 MEMBER, ROOF PANEL NO.4 1 Rp57.000
10 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ROOF FRONT RAIL 6 -
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ROOF CTR MEMBER 4 -
12 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ROOF BACK MEMBER 4 -
13 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,ROOF BACK SIDE 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
