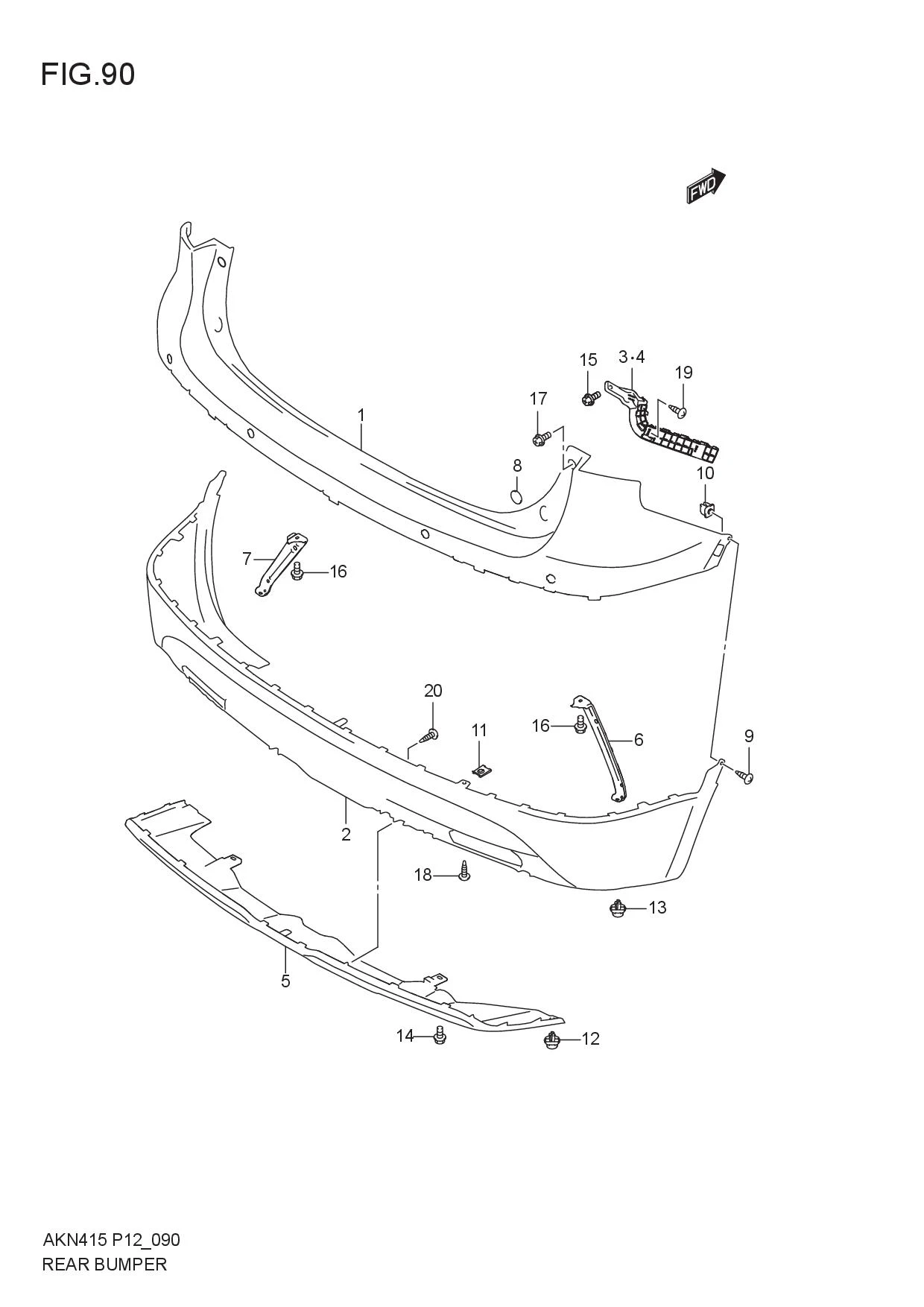

FIG.90 REAR BUMPER

FIG.90 REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71811M64M10-799 BUMPER, REAR UPPER (PRIMARY) 1 Rp737.000 PAINT TO MATCH
2 71821M64M00-5PK BUMPER, REAR LOWER (BLACK) 1 Rp820.500
3 71831M64M00-000 HOLDER, RR BUMPER SIDE, R 1 Rp44.500
4 71832M64M00-000 HOLDER, RR BUMPER SIDE, L 1 Rp44.500
5 71871M64M11-PER
SUB: 71871M64M10-PER		 GARNISH, RR BUMPER LOWER (SLIVER RESIN) 1 Rp587.500
6 71891M61M00-000 STAY, RR BUMPER, R 1 Rp70.500
7 71892M61M00-000 STAY, RR BUMPER, L 1 Rp70.500
8 77191-79F00-000
SUB: 77191B79F00N000		 FILM, BACK DOOR SIDE CUSHION 2 Rp7.500
9 09132M05063-000 SCREW, RR BUMPER SIDE 2 Rp5.500
10 09148-05044-000 NUT 2 Rp18.000
11 09148M05071-000 NUT 4 Rp6.000
12 09409M07L01-000 CLIP 2 Rp5.000
13 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000
14 01551-0616C-000 BOLT 2 Rp14.500
15 01551-0616C-000 BOLT 2 Rp14.500
16 01551-0616C-000 BOLT 2 Rp14.500
17 01551-0616C-000 BOLT 2 Rp14.500
18 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
19 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
