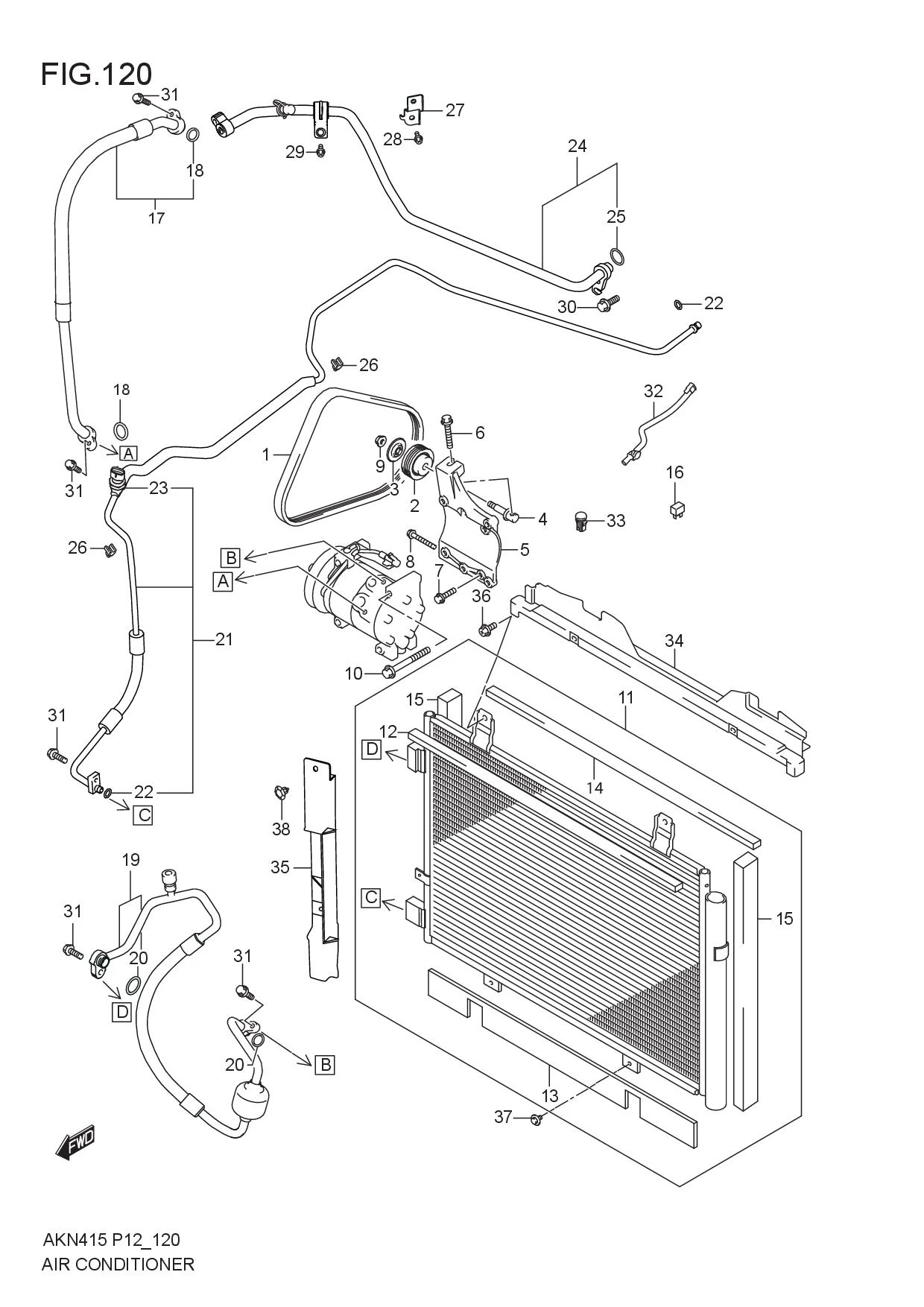

FIG.120 AIR CONDITIONER

FIG.120 AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 95141M55K00-000 V-BELT(4PK 815) 1 Rp91.500
2 49161-70AA0-000 PULLEY,BELT TENSION 1 -
3 DISCONTINUE
SUB: 49162-70AA0-000		 DUST COVER,TENSION PULLEY 1 -
4 95126M55K00-000 BOLT 1 Rp72.500
5 95111M55K00-000 BRACKET, COMPRESSOR 1 Rp358.000
6 95126-58J00-000
SUB: 09103-08352-000		 BOLT 1 Rp48.500
7 01550-0830A-000
SUB: 01550B0830AN000		 BOLT, COMPRESSOR BRKT 3 Rp4.000
8 01550-0855A-000 BOLT, COMPRESSOR BRKT 1 Rp3.500
9 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
10 01550-0875A-000 BOLT, COMPRESSOR 4 Rp6.000
11 95310M65M20-000 CONDENSER ASSY 1 Rp2.844.500
12 95815M79M00-000 .PACKING 1 Rp35.000
13 95816M79M00-000 .PACKING 1 Rp39.000
14 95817M79M00-000 .PACKING 1 Rp32.000
15 95819M79M00-000 .PACKING 2 Rp31.000
16-1 38860M76M00-000 RELAY, A/C 1 Rp58.500
16-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY, A/C 1 Rp58.500
17 95710M65M20-000 HOSE, SUCTION 1 Rp630.500
18 95896-50G00-000
SUB: 95896B50G00N000		 .O-RING 2 Rp19.000
19 95720M65M20-000 HOSE, DISCHARGE 1 Rp644.000
20 95895-50G00-000
SUB: 95895B50G00N000		 .O-RING 2 Rp12.500
21 95731M65M20-000 HOSE, LIQUID 1 Rp1.287.500
22 95891-50G00-000
SUB: 95891B50G00N000		 .O-RING 2 Rp12.500
23 95546M74L00-000 .SENSOR REFRIGERANT, PRESSURE 1 Rp675.500
24 95741M65M20-000 PIPE, SUCTION 1 Rp500.000
25 95896-50G00-000
SUB: 95896B50G00N000		 .O-RING 1 Rp19.000
26 95761M65M00-000 CLAMP, LIQUID PIPE 2 Rp8.000
27 95781M65M00-000 STAY,SUCT PIPE 1 Rp9.000
28 02162-0612A-000 SCREW 1 Rp11.000
29 01550-0630A-000 BOLT 1 Rp3.000
30 01550-0620C-000 BOLT 1 Rp5.500
31 01550-0620B-000
SUB: 01550B0620AN000		 BOLT,PIPE 5 Rp3.500
32 95640M61MA0-000 SENSOR ASSY, ROOM TEMP 1 Rp394.500
33 95642-64G20-000 SENSOR, SUN LIGHT 1 Rp578.000
34 95340M65M20-000 SHROUD, RADIATOR UPPER 1 Rp71.000
35 95343M65M20-000 SHROUD, INTER COOLER, RH 1 Rp42.500
36 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
37 09116-06181-000 BOLT 2 Rp23.500
38 09409M07L01-000 CLIP 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
