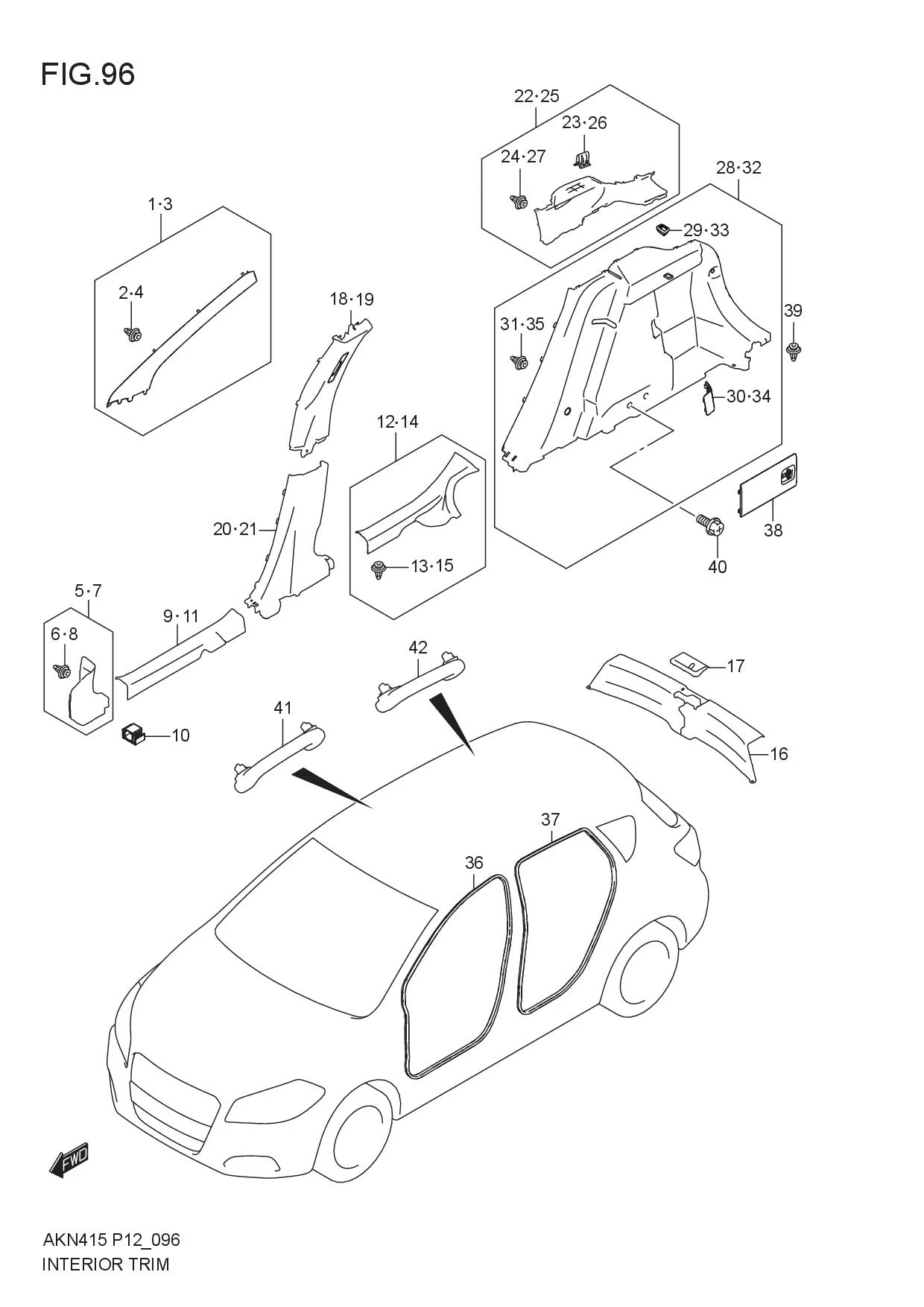

FIG.96 INTERIOR TRIM

FIG.96 INTERIOR TRIM
No No. Part Description Qty Price Per Pcs Remarks
1 76110M65M00-6GS TRIM , FRONT PILLAR, R (GRAY) 1 Rp89.500
2 09409M10321-000 .CLIP 3 Rp5.000
3 76120M65M00-6GS TRIM , FRONT PILLAR, L (GRAY) 1 Rp89.500
4 09409M10321-000 .CLIP 3 Rp5.000
5 76130M65M00-5PK TRIM , DASH SIDE, R (BLACK) 1 Rp797.500
6 09409M10321-000 .CLIP 1 Rp5.000
7 76140M65M00-5PK TRIM , DASH SIDE, L (BLACK) 1 Rp797.500
8 09409M10321-000 .CLIP 1 Rp5.000
9 76151M61M00-5PK SCUFF, SIDE SILL FRONT, R (BLACK) 1 Rp58.500
10 76158M74L00-000 CLAMP, SIDE SILL SCUFF 12 Rp6.000
11 76161M61M00-5PK SCUFF, SIDE SILL FRONT, L (BLACK) 1 Rp58.500
12 76170M65M00-5PK SCUFF , SIDE SILL REAR, R (BLACK) 1 Rp91.500
13 09409M10321-000 .CLIP 1 Rp5.000
14 76180M65M00-5PK SCUFF , SIDE SILL REAR, L (BLACK) 1 Rp91.500
15 09409M10321-000 .CLIP 1 Rp5.000
16 76191M65M00-5PK TRIM, TAIL END (BLACK) 1 Rp182.500
17 76192M54P00-5PK CAP, TAIL END TRIM (BLACK) 1 Rp19.000
18 76210M65M00-6GS TRIM , CTR PILLAR UPR, R (GRAY) 1 Rp110.500
19 76220M65M00-6GS TRIM , CTR PILLAR UPR, L (GRAY) 1 Rp110.500
20 76231M65M00-5PK TRIM, CTR PILLAR LOWER, R (BLACK) 1 Rp139.000
21 76241M65M00-5PK TRIM, CTR PILLAR LOWER, L (BLACK) 1 Rp139.000
22 76250M65M00-6GS TRIM , QUARTER UPPER, R (GRAY) 1 Rp136.000
23 09409M07345-000 .CLIP 1 Rp11.000
24 09409M10321-000 .CLIP 5 Rp5.000
25 76260M65M00-6GS TRIM , QUARTER UPPER, L (GRAY) 1 Rp136.000
26 09409M07345-000 .CLIP 1 Rp11.000
27 09409M10321-000 .CLIP 5 Rp5.000
28 76270M65M21-5PK TRIM , QUARTER LOWER, R (BLACK) 1 Rp861.500
29 75466M54L00-000 .LATCH, QUARTER LOWER TRIM 1 Rp11.000
30 76275M61M00-5PK .CAP, QUARTER LOWER TRIM, R (BLACK) 1 Rp16.000
31 09409M10321-000 .CLIP 3 Rp5.000
32 76280M65M01-5PK TRIM , QUARTER LOWER, L (BLACK) 1 Rp861.500
33 75466M54L00-000 .LATCH, QUARTER LOWER TRIM 1 Rp11.000
34 76276M61M00-5PK .CAP, QUARTER LOWER TRIM, L (BLACK) 1 Rp16.000
35 09409M10321-000 .CLIP 3 Rp5.000
36 76291M65M00-000 TRIM, FRONT DOOR OPENING 2 Rp523.500
37 76295M65M00-000 TRIM, REAR DOOR OPENING 2 Rp523.500
38 76310M61M00-5PK LID , QUARTER LOWER (BLACK) 2 Rp54.000
39 09409M07L02-5PK CLIP (BLACK) 2 Rp7.500
40 02162-0612A-000 BOLT 4 Rp11.000
41 76410M79M20-6GS
SUB: 76410M79M02-6GS		 GRIP , ASSISTANT (GRAY) 1 Rp82.500
42 76410M79M12-6GS GRIP , ASSISTANT (GRAY) 2 Rp81.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
