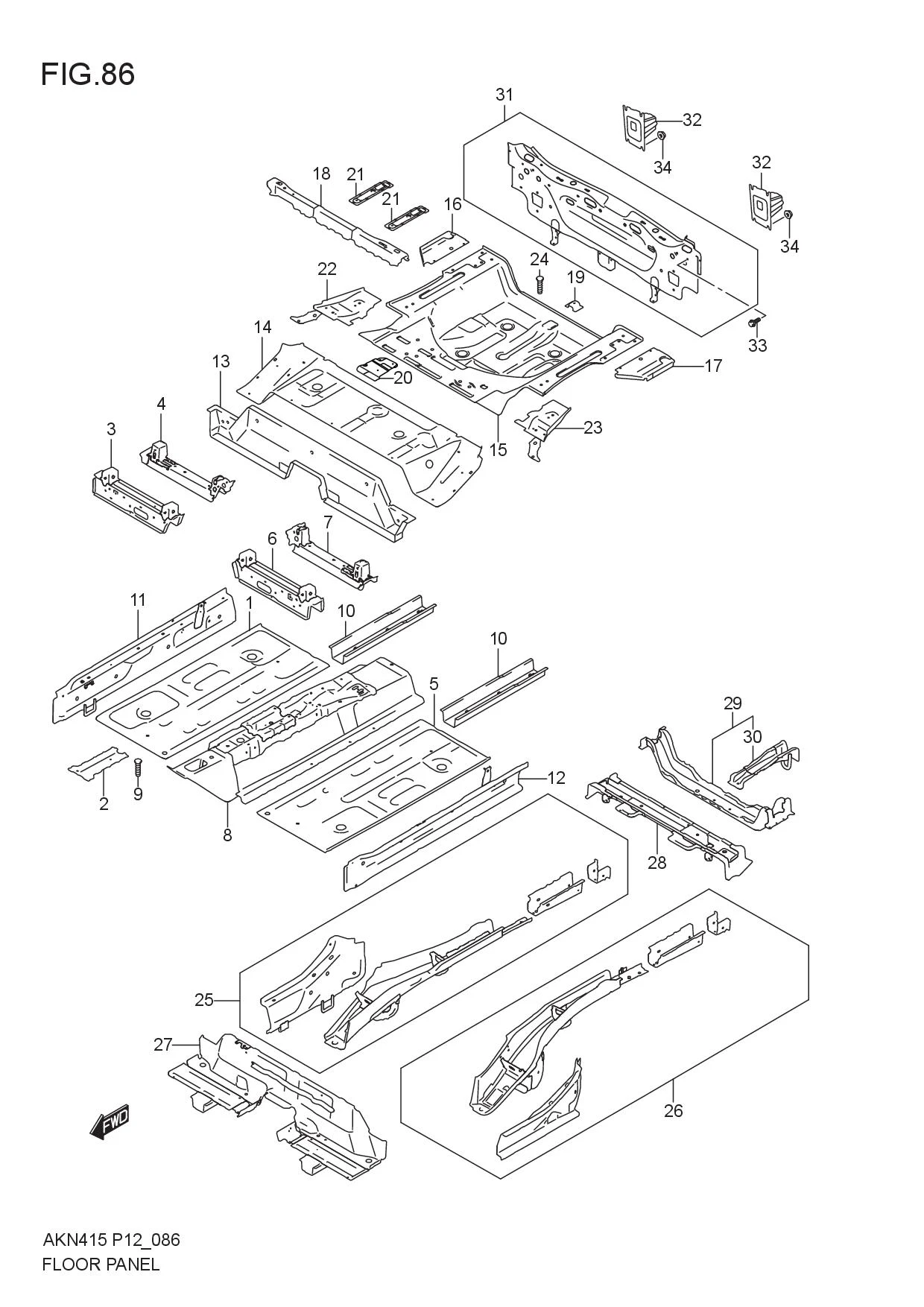

FIG.86 FLOOR PANEL

FIG.86 FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 61111M64M00-000 PAN, MAIN FLOOR, RH 1 Rp1.262.000
2 61112M64M00-000 REINF, MAIN FLOOR 1 Rp68.500
3 61130M64M00-000 CROSSMEMBER, FLR PAN UPR, RH 1 Rp451.500
4 61140M64M00-000 CROSSMEMBER,FLR PAN RR, RH 1 Rp382.500
5 61161M64M00-000 PAN, MAIN FLOOR, LH 1 Rp1.262.000
6 61180M64M00-000 CROSSMEMBER,FLR PAN UPR, LH 1 Rp451.500
7 61190M64M00-000 CROSSMEMBER,FLR PAN RR, LH 1 Rp382.500
8 61200M64M00-000 TUNNEL, MAIN FLOOR 1 Rp3.538.000
9 09119-05018-000 BOLT 3 Rp13.000
10 61241M75J00-000 MEMBER, FLOOR SIDE REAR 2 Rp156.000
11 61310M64M00-000 PANEL, SIDE SILL INNER, RH 1 Rp837.500
12 61320M64M00-000 PANEL, SIDE SILL INNER, LH 1 Rp837.500
13 61511M55KA0-000 PANEL, REAR FLOOR FR 1 Rp548.000
14 61512M64M00-000 PANEL, REAR FLOOR CTR 1 Rp927.500
15 61513M64M02-000
SUB: 61513M64M00-000		 PANEL, REAR FLOOR RR 1 Rp1.564.000
16 61514M64M00-000 EXTENSION, RR FLOOR SIDE, RH 1 Rp56.000
17 61515M64M00-000 EXTENSION, RR FLOOR SIDE,LH 1 Rp56.000
18 61516M64M00-000 MEMBER, RR SEAT SUPPORT 1 Rp200.500
19 61518-68L00-000 BRACKET, SPARE TIRE 1 Rp795.000
20 61523M64M00-000 REINF, RR SEAT BELT ANCHOR NO.1 1 Rp150.500
21 DISCONTINUE
SUB: 61541-56KA0-000		 REINF, REAR FLOOR CTR 2 -
22 61550M64M00-000 REINF, SEAT BELT SIDE, RH 1 Rp166.000
23 61560M64M00-000 REINF, SEAT BELT SIDE, LH 1 Rp176.000
24 09119-05018-000 BOLT 4 Rp13.000
25 62100M64M10-000 MEMBER, REAR FLOOR SIDE, RH 1 Rp3.975.500
26 62300M64M10-000 MEMBER, REAR FLOOR SIDE, LH 1 Rp3.975.500
27 62600M64M00-000 CROSSMEMBER, REAR FLOOR FR 1 Rp1.849.500
28 62700M64M00-000 CROSSMEMBER, RR FLOOR CTR 1 Rp1.119.000
29 62800M64M00-000 CROSSMEMBER, RR FLOOR RR 1 Rp882.500
30 62830M64M00-000 .HOOK, TOWING REAR 1 Rp240.500
31 65500M64M10-000 PANEL, BACK 1 Rp1.736.000
32 65560M64M00-000 ABSORBER, REAR BUMPER 2 Rp120.000
33 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 6 -
34 08316-1008A-000
SUB: 08316B1008AN000		 NUT 8 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
