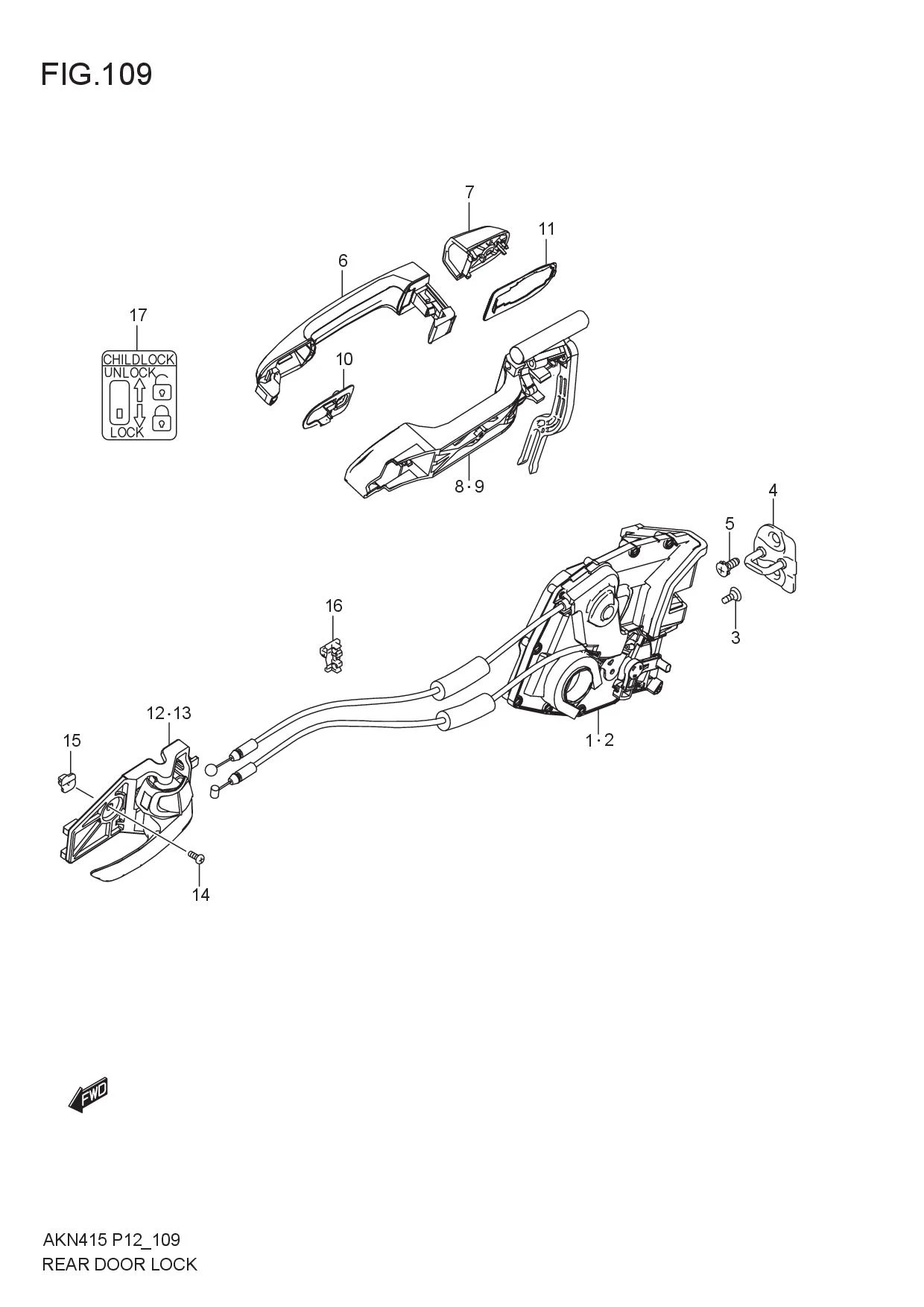

FIG.109 REAR DOOR LOCK

FIG.109 REAR DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82301M64MB1-000
SUB: 82301M64MB0-000		 LATCH ASSY, REAR DOOR, R 1 Rp709.500
2 82302M64MB1-000
SUB: 82302M64MB0-000		 LATCH ASSY, REAR DOOR, L 1 Rp710.000
3 09137-06028-000 SCREW 6 Rp18.500
4 DISCONTINUE
SUB: 82610M75J00-000		 STRIKER , DOOR LATCH 2 -
5 09139-08025-000 SCREW 4 Rp23.000
6-1 82812M79M00-ZHJ HANDLE, SIDE DOOR OUT (WHITE) 1 Rp386.500
6-2 82812M79M00-ZQS HANDLE, SIDE DOOR OUT (SILVER) 1 Rp184.500
6-3 82812M79M00-ZQT HANDLE, SIDE DOOR OUT (BLUE) 1 Rp189.500
6-4 82812M79M00-ZTN HANDLE, SIDE DOOR OUT (GREY) 1 Rp181.000
7-3 82833M79M00-ZQT CAP, REAR DOOR OUT (BLUE) 1 Rp58.500
7-4 82833M79M00-ZTN CAP, REAR DOOR OUT (GREY) 1 Rp58.500
7-2 82833M79M00-ZQS CAP, REAR DOOR OUT (SILVER) 1 Rp58.500
7-1 82833M79M00-ZHJ CAP, REAR DOOR OUT (WHITE) 1 Rp285.500
8 82831M64M30-000 FRAME, REAR DOOR OUT, R 1 Rp49.500
9 82841M64M30-000 FRAME, REAR DOOR OUT, L 1 Rp49.500
10 82814M79M00-000 PAD, REAR DOOR OUT 2 Rp7.000
11 82815M79M00-000 CUSHION, SIDE DOOR OUT 2 Rp7.000
12 83110M74L10-C48 HANDLE , SIDE DOOR INSIDE, R (CHROME/BLACK) 2 Rp111.000
13 83130M74L10-C48 HANDLE , SIDE DOOR INSIDE, L (CHROME/BLACK) 2 Rp111.000
14 09132-05058-000 SCREW 2 Rp14.000
15 83119M75J00-000 NUT, DOOR INSIDE HANDLE 2 Rp5.500
16 83271M50E00-000 CLIP, DOOR INSIDE HANDLE CABLE 2 Rp6.500
17 86951-54G00-000
SUB: 86951B54G00N000		 PLATE, CHILD LOCK CAUTION DOOR 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
