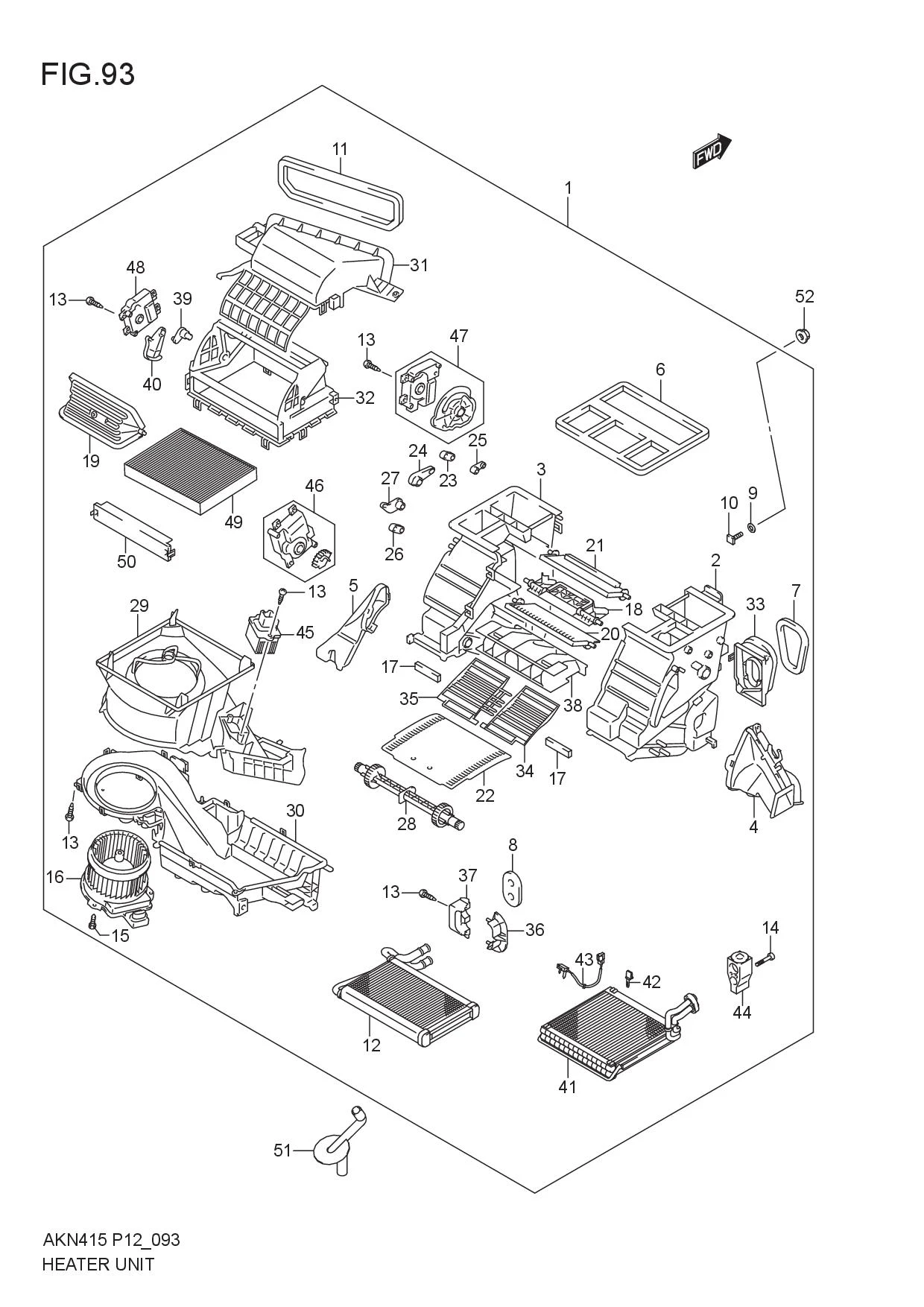

FIG.93 HEATER UNIT

FIG.93 HEATER UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 74100M65M31-000 HVAC UNIT 1 Rp9.982.500
2 74111M65M10-000 .CASE HEATER 1 Rp205.000
3 74112M65M10-000 .CASE HEATER 1 Rp216.500
4 74114M65M00-000 .DUCT S/ASSY AIR 1 Rp45.500
5 74115M79M00-000 .DUCT S/ASSY AIR 1 Rp43.000
6 74116M79M00-000 .PACKING SET 1 Rp41.000
7 74117M79M00-000 .PACKING 1 Rp41.000
8 74118-63J01-000 .PACKING 1 Rp74.000
9 74119-78F10-000
SUB: 74119B78F10N000		 .BUSH 5 Rp8.000
10 74119M79M00-000 .BOLT 5 Rp9.000
11 74119-63J00-000
SUB: 74119B63J00N000		 .PACKING 1 Rp19.500
12 74120M65M00-000 .CORE S/ASSY, HTR 1 Rp1.392.000
13 03112-0416A-000
SUB: 03112B0416AN000		 .SCREW TAPPING 20 Rp23.500
14 74134-58J00-000
SUB: 74134B58J00N000		 .BOLT 2 Rp14.000
15 74135-82000-000
SUB: 74135B82000N000		 .SCREW TAPPING 3 Rp19.500
16 74150M79M00-000 .MOTOR ASSY W/FAN 1 Rp1.421.000
17 74163M79M00-000 .PACKING, HTR CASE 2 Rp8.000
18 74172M79M00-000 .DOOR S/ASSY 1 Rp74.500
19 74173M79M00-000 .DOOR S/ASSY 1 Rp54.000
20 74174M79M00-000 .DOOR S/ASSY 1 Rp66.000
21 74176M79M01-000 .DOOR S/ASSY 1 Rp93.500
22 74178M79M00-000 .DOOR 1 Rp187.500
23 74191M79M00-000 .LEVER 1 Rp11.500
24 74192M79M00-000 .LEVER 1 Rp13.000
25 74193M79M00-000 .LEVER 1 Rp10.500
26 74194M79M00-000 .LEVER 1 Rp10.500
27 74195M79M00-000 .LEVER 1 Rp14.500
28 74197M79M10-000 .SHAFT 1 Rp99.500
29 74211M65M00-000 .CASE BLOWER 1 Rp220.000
30 74212M65M00-000 .CASE BLOWER 1 Rp228.000
31 74213M65M00-000 .CASE BLOWER 1 Rp231.500
32 74214M79M10-000 .CASE BLOWER 1 Rp117.000
33 74215M65M00-000 .COVER TXV 1 Rp43.000
34 74218M79M00-000 .DUCT AIR-AIR MIXING 1 Rp19.000
35 74219M79M00-000 .DUCT AIR-AIR MIXING 1 Rp19.000
36 74221M65M00-000 .BRACKET-HTR PIPE 1 Rp27.000
37 74221M79M10-000 .BRACKET-HTR PIPE 1 Rp22.500
38 74223M79M00-000 .DUCT, AIR 1 Rp33.000
39 74281M79M10-000 .LEVER 1 Rp12.000
40 74282M79M10-000 .LEVER 1 Rp12.000
41 95411M65M00-000 .EVAPORATOR S/ASSY 1 Rp1.857.000
42 95452-63J00-000
SUB: 95452B63J00N000		 .CLAMP 1 Rp9.000
43 95541M79M00-000 .THERMISTER ASSY 1 Rp208.000
44 95431M79M00-000 .VALVE EXPANSION 1 Rp994.000
45 95626M79M00-000 .POWER TRANSISTOR ASSY,BLO 1 Rp743.000
46 95653M79M00-000 .SERVO MOTOR ASSY,W/ACCESSORY 1 Rp479.000
47 95654M79M00-000 .SERVO MOTOR ASSY,W/ACCESSORY 1 Rp465.000
48 95655M79M10-000 .SERVO ACC ASSY 1 Rp455.500
49 95850M79M00-000 .FILTER S/ASSY 1 Rp185.000
50 95861M79M10-000 .HOLDER FLTR 1 Rp22.500
51 95481M65M00-000 HOSE, DRAIN 1 Rp58.500
52 08361M2506A-000 NUT 6 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
