SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.83 FRONT HOOD PANELFIG.84 FRONT FENDERFIG.85 FRONT BODY PANELFIG.86 FLOOR PANELFIG.87 SIDE BODY PANELFIG.88 ROOF PANELFIG.89 FRONT BUMPERFIG.90 REAR BUMPERFIG.91 INSTRUMENT PANELFIG.92 VENTILATORFIG.93 HEATER UNITFIG.94 CONSOLE? BOXFIG.95 FLOOR CARPETFIG.96 INTERIOR TRIMFIG.97 COVER/CAPFIG.98 FUEL LID OPENERFIG.99 ROOF LININGFIG.100 MOLDINGFIG.101 SPLASH GUARDFIG.102 EMBLEMFIG.103 WINDSHIELDFIG.104 FRONT DOOR PANELFIG.105 FRONT DOOR REGURATORFIG.106 FRONT DOOR LOCKFIG.107 REAR DOOR PANELFIG.108 REAR DOOR REGULATORFIG.109 REAR DOOR LOCKFIG.110 BACK DOOR PANELFIG.111 BACK DOOR LOCKFIG.112 MIRROR/SUNVISORFIG.113 SEAT BELTFIG.114 FR RH SEATFIG.115 FR LH SEATFIG.116 REAR SEATFIG.117 PARCEL SHELFFIG.118 FUEL TANKFIG.119 TOOLFIG.120 AIR CONDITIONERFIG.121 COMPRESSOR

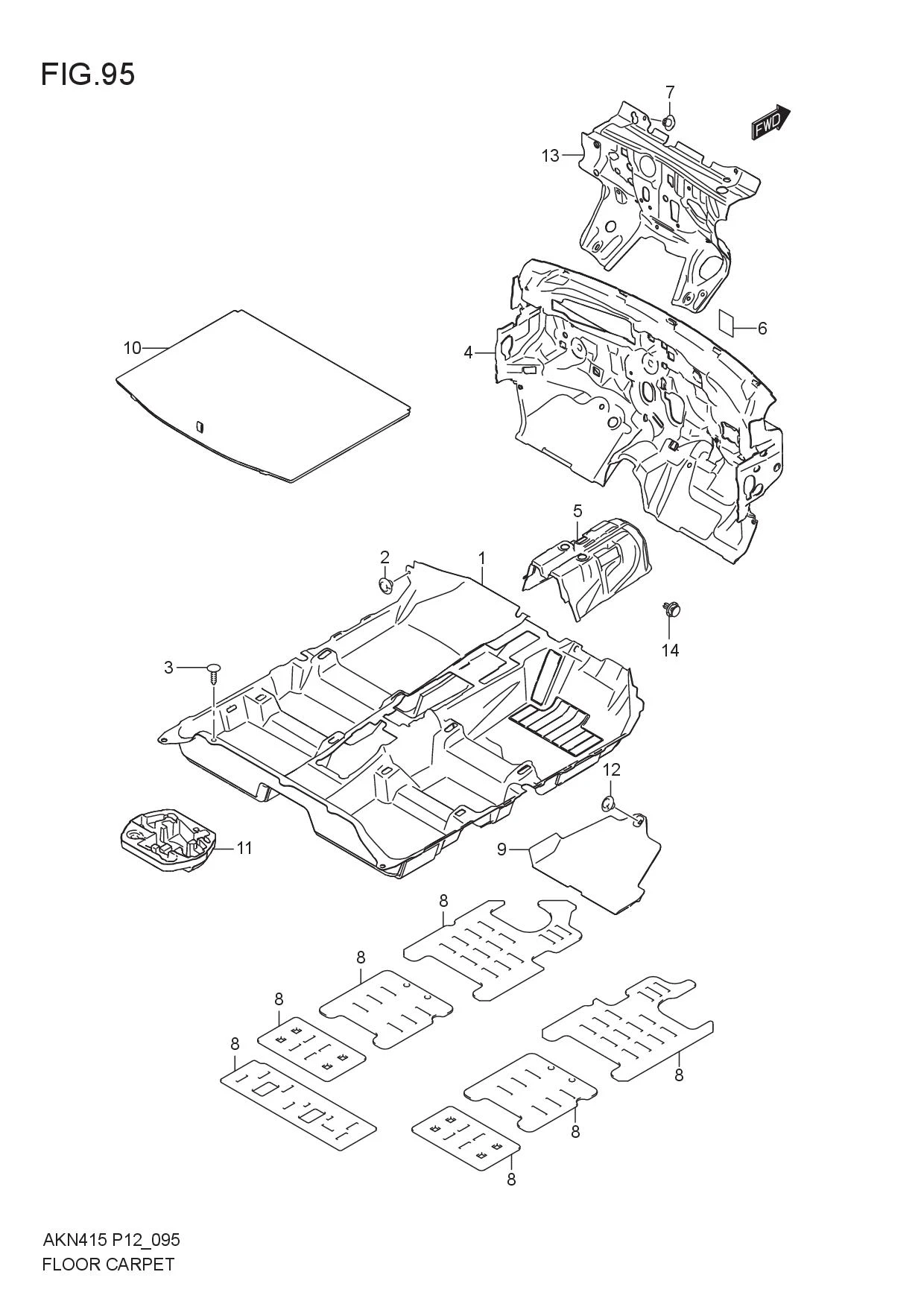

FIG.95 FLOOR CARPET

FIG.95 FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1 75110M65M10-R3F
SUB: 75110M65M11-R3F		 CARPET , FLOOR (BLACK) 1 Rp2.341.000
2 09148M05L02-000 CLIP 2 Rp5.500
3 75139M70F00-5PK CLIP, FLOOR CARPET RR (BLACK) 3 Rp6.500
4-1 75221M65M10-000 SILENCER, DASH PANEL INNER 1 Rp793.000 5MT
4-2 75221M65M20-000 SILENCER, DASH PANEL INNER 1 Rp793.000 6AT
5 75231M65M00-000 SILENCER, TUNNEL INNER 1 Rp304.000
6 DISCONTINUE
SUB: 75231-79J00-000		 SHEET, REAR FLOOR PANEL 2 -
7 09148M05L02-000 CLIP 3 Rp5.500
8 99611-60A01-000 SHEET, SILENCER(800X1000X3) 1 Rp1.210.000
9 75412M65M00-000 PAD, DASH LOWER, L 1 Rp254.000
10 75460M65M00-GMY BOARD , LUGGAGE FLOOR (BLACK) 1 Rp1.559.500
11 75461M65M00-000 BOX, TOOL 1 Rp414.000
12 09148M05L02-000 CLIP 1 Rp5.500
13 72450M64M01-000 SILENCER , DASH OUTER 1 Rp369.500
14 09409M07L01-000 CLIP 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
