SPARE PARTS

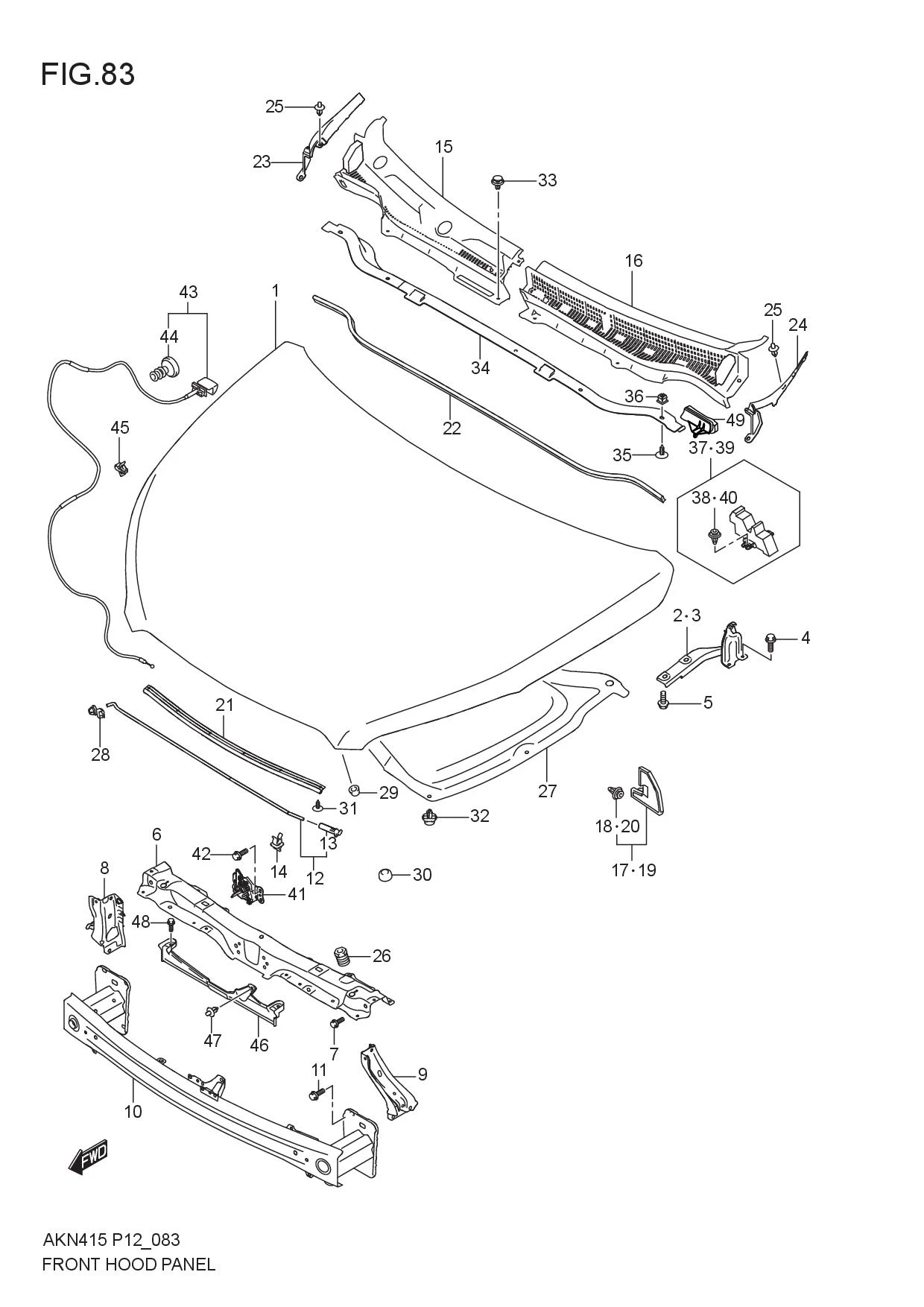

FIG.83 FRONT HOOD PANEL

FIG.83 FRONT HOOD PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57300M64MV0-000
SUB: 57300M64M00-000
PANEL, FRONT HOOD 1 Rp2.600.000
2 57410M64M00-000 HINGE, FRONT HOOD, RH 1 Rp152.500
3 57420M64M00-000 HINGE, FRONT HOOD, LH 1 Rp152.500
4 01550B06123N000
SUB: 01550B0612AN000
BOLT 4 Rp2.000
5 01550B06123N000
SUB: 01550B0612AN000
BOLT 4 Rp2.000
6 58230M64M00-000 MEMBER, HOOD LOCK 1 Rp429.500
7 01550B06123N000
SUB: 01550B0612AN000
BOLT 4 Rp2.000
8 58110M64M00-000 BRACE, LAMP SUPPORT,RH 1 Rp163.500
9 58120M64M00-000 BRACE, LAMP SUPPORT,LH 1 Rp163.500
10 58270M64M00-000 MEMBER, FRONT BUMPER 1 Rp1.917.000
11 01551-0820A-000 BOLT 8 Rp14.000
12 72310M61M10-000 STAY, FRONT HOOD 1 Rp51.500
13 72312M61M00-000 .HOLDER, FRONT HOOD 1 Rp25.000
14 09403-07407-000 HOLDER, FRONT HOOD STAY 1 Rp15.000
15 72330M64M00-5PK GARNISH, COWL TOP, RH (BLACK) 1 Rp226.000
16 72340M64M00-5PK GARNISH, COWL TOP, LH (BLACK) 1 Rp261.500
17 72360M64M00-000 COVER, FRONT FENDER FR, RH 1 Rp80.500
18 09409M10321-000 .CLIP 1 Rp2.500
19 72370M64M00-000 COVER, FRONT FENDER FR, LH 1 Rp80.500
20 09409M10321-000 .CLIP 1 Rp2.500
21 72361M61M00-000 SEAL, HOOD FRONT 1 Rp34.000
22 72362M61M00-000 SEAL, HOOD REAR 1 Rp59.000
23 72334M64M00-5PK COVER, FRONT FENDER TOP, RH (BLACK) 1 Rp13.000
24 72344M64M00-5PK COVER, FRONT FENDER TOP, LH (BLACK) 1 Rp13.000
25 09409M07L02-000 CLIP 2 Rp3.000
26 72372M70F10-000 CUSHION, FRONT HOOD FRONT SIDE 2 Rp4.500
27 72440M64M00-000 SILENCER, FRONT HOOD 1 Rp389.000
28 09209-14001-000 LINKAGE, FR HOOD STAY 1 Rp16.500
29 82711-65J00-000 CUSHION, FRONT HOOD FRONT 2 Rp28.000
30 09321B10023N000 CUSHION, FRONT HOOD REAR 2 Rp3.000
31 09409-10304-000 CLIP 6 Rp2.500
32 09409M07L01-000 CLIP 9 Rp2.500
33 09409M08006-000
SUB: 09409M08L01-000
CLIP 6 Rp2.500
34 72363M61M00-000 EXTENSION, HOOD SEAL REAR 1 Rp108.500
35 09136-06171-000 SCREW 6 Rp15.500
36 71851M70F00-000 NUT 6 Rp1.500
37 72364M64M00-000 SEAL, COWL SIDE, RH 1 Rp125.000
38 09409M10L03-000 .CLIP 1 Rp3.000
39 72368M64M00-000 SEAL, COWL SIDE,LH 1 Rp125.000
40 09409M10L03-000 .CLIP,COWL SIDE SEAL 1 Rp3.000
41 82110M64M01-000
SUB: 82110M64M00-000
LATCH, HOOD 1 Rp131.000
42 09122-86003-000
SUB: 02162-0616A-000
BOLT 3 Rp2.500
43 82160M64M01-000 CABLE, HOOD LATCH RELEASE 1 Rp95.000
44 82191-80003-000
SUB: 82191-50E00-000
.GROMMET, LATCH RELEASE 1 Rp32.000
45 76238M70F00-000 CLAMP, RELEASE CABLE FRONT 4 Rp2.500
46 82171M64M00-000 COVER, HOOD RELEASE CABLE 1 Rp42.500
47 09409M06314-000 .CLIP 1 Rp3.000
48 09122-86003-000
SUB: 02162-0616A-000
BOLT 2 Rp2.500
49 72342M64M10-000 COVER,COWL TOP 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
