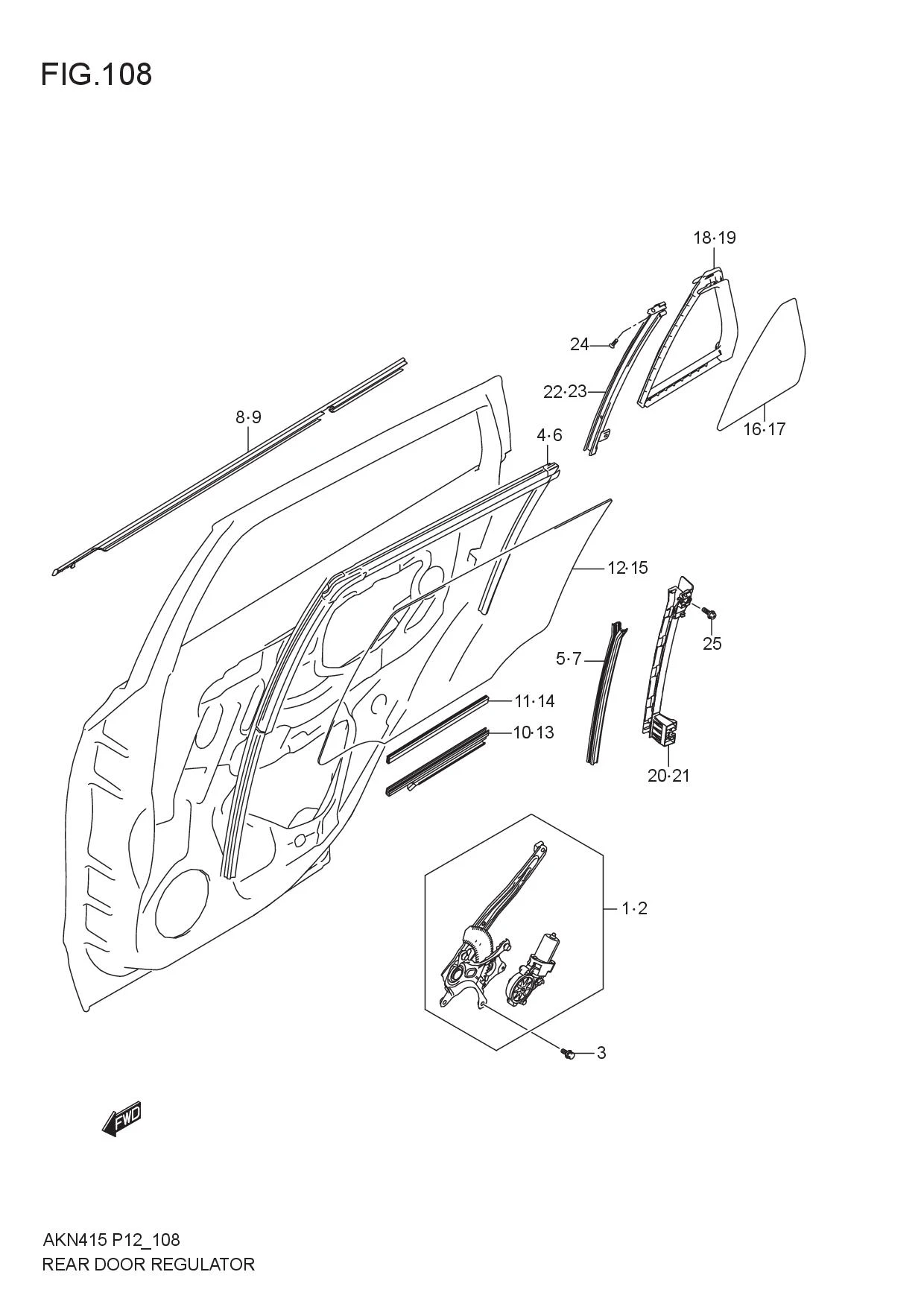

FIG.108 REAR DOOR REGULATOR

FIG.108 REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83501M76M10-000
SUB: 83501M76M00-000		 REGULATOR ASSY, REAR WINDOW, R 1 Rp278.500
2 83502M76M10-000
SUB: 83502M76M00-000		 REGULATOR ASSY, REAR WINDOW, L 1 Rp278.500
3 02112M7610A-000 BOLT 4 Rp5.500
4 83671M64M00-000 RUN, REAR DOOR GLASS, R 1 Rp427.500
5 83672M64M00-000 RUN, REAR DOOR GLASS RR LWR, R 1 Rp60.500
6 83675M64M00-000 RUN, REAR DOOR GLASS, L 1 Rp427.500
7 83676M64M00-000 RUN, REAR DOOR GLASS RR LWR, L 1 Rp58.500
8 83831M64M00-000 WEATHERSTRIP, REAR DOOR OUT, R 1 Rp145.000
9 83841M64M00-000 WEATHERSTRIP, REAR DOOR OUT, L 1 Rp145.000
10 83630M72J00-000 CHANNEL , RR GLASS BOTTOM, R 1 Rp23.500
11 83691-60A00-000
SUB: 83691M63J00-000		 RUBBER, RR GLASS BOTTOM CHANNEL 1 Rp37.000
12 84541M64M01-000
SUB: 84541M64M00-000		 GLASS, REAR DOOR WINDOW, R 1 Rp452.000
13 83640M72J00-000 CHANNEL , RR GLASS BOTTOM, L 1 Rp23.500
14 83691-60A00-000
SUB: 83691M63J00-000		 RUBBER, RR GLASS BOTTOM CHANNEL 1 Rp37.000
15 84546M64M01-000
SUB: 84546M64M00-000		 GLASS, REAR DOOR WINDOW, L 1 Rp452.000
16 84551M64M01-000
SUB: 84551M64M00-000		 GLASS, REAR DOOR PARTITION, R 1 Rp155.000
17 84556M64M01-000
SUB: 84556M64M00-000		 GLASS, REAR DOOR PARTITION, L 1 Rp155.000
18 84665M64M00-000 WEATHERSTRIP, RR DR PARTITION,R 1 Rp340.000
19 84675M64M00-000 WEATHERSTRIP, RR DR PARTITION,L 1 Rp340.000
20 81630M64M00-000 SASH , RR DR CTR LOWER, R 1 Rp57.000
21 81640M64M00-000 SASH , RR DR CTR LOWER, L 1 Rp59.000
22 81770M64M00-000 SASH , REAR DOOR CENTER, R 1 Rp158.500
23 81780M64M00-000 SASH , REAR DOOR CENTER, L 1 Rp158.500
24 02122M0512A-000 SCREW, RR DR CENTER SASH UPPER 2 Rp3.500
25 02162-0612A-000 BOLT 6 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
