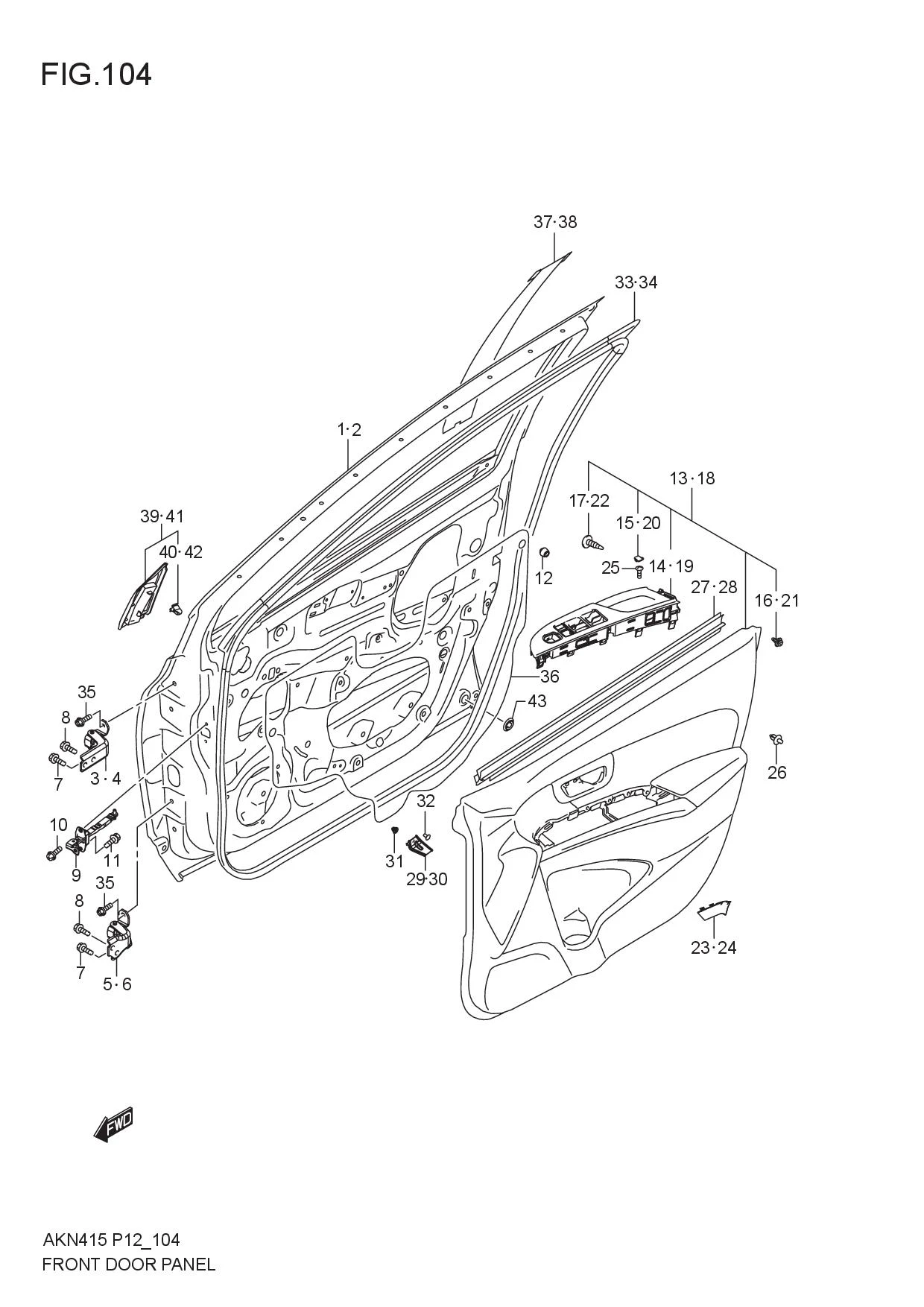

FIG.104 FRONT DOOR PANEL

FIG.104 FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001M64M01-000
SUB: 68001M64M00-000		 PANEL ASSY, FRONT DOOR, R 1 Rp4.162.000
2 68002M64M01-000
SUB: 68002M64M00-000		 PANEL ASSY, FRONT DOOR, L 1 Rp4.162.000
3 69310M68L00-000
SUB: 69310B68L00N000		 HINGE , FRONT DOOR UPPER, R 1 Rp82.500
4 69320M68L00-000
SUB: 69320B68L00N000		 HINGE , FRONT DOOR UPPER, L 1 Rp82.500
5 69330M68L00-000
SUB: 69330B68L00N000		 HINGE , FRONT DOOR LOWER, R 1 Rp74.000
6 69340M68L00-000
SUB: 69340B68L00N000		 HINGE , FRONT DOOR LOWER, L 1 Rp74.000
7 09113M08L02-000 BOLT 4 Rp8.500
8 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500
9 81810M75J03-000 STOP , SIDE DOOR OPEN 2 Rp72.000
10 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500
11 09112-08015-000 BOLT 4 Rp32.000
12 82711-65J00-000 STOPPER, DOOR 8 Rp34.000
13 83701M65M01-BDL TRIM ASSY, FRONT DOOR, R (BLACK/SILVER) 1 Rp2.001.500
14 83715M65M00-5PK .BEZEL, P/W SWITCH MAIN, R (BLACK) 1 Rp51.500
15 83752M55K00-5PK .CAP, SIDE DOOR INSIDE PULL CASE (BLACK) 1 Rp9.500
16 09409M10321-000 .CLIP 7 Rp5.000
17 03541-0410A-000 .SCREW 1 Rp11.000
18 83702M65M01-BDL TRIM ASSY, FRONT DOOR, L (BLACK/SILVER) 1 Rp2.001.500
19 83725M65M10-5PK .BEZEL, P/W SWITCH SUB, L (BLACK) 1 Rp51.500
20 83752M55K00-5PK .CAP, SIDE DOOR INSIDE PULL CASE (BLACK) 1 Rp9.500
21 09409M10321-000 .CLIP 7 Rp5.000
22 03541-0410A-000 .SCREW 1 Rp11.000
23 83755M74L00-5PK CAP, SIDE DR INSIDE HDL BEZEL, R (BLACK) 1 Rp8.500
24 83756M74L00-5PK CAP, SIDE DR INSIDE HDL BEZEL, L (BLACK) 1 Rp8.500
25 09132-05058-000 SCREW 2 Rp14.000
26 09409-06314-5PK
SUB: 09409B06314N5PK		 CLIP 4 Rp3.500
27 83851M64M00-000 WEATHERSTRIP, FR DOOR INNER, R 1 Rp154.000
28 83861M64M00-000 WEATHERSTRIP, FR DOOR INNER, L 1 Rp154.000
29 83751-75HA0-000
SUB: 83751B75HA0N000		 BRACKET, FRONT DOOR TRIM, R 1 Rp8.000
30 83756-75HA0-000
SUB: 83756B75HA0N000		 BRACKET, FRONT DOOR TRIM, L 1 Rp8.000
31 71851M70F00-000 NUT, DOOR TRIM BRKT 2 Rp4.000
32 03241M0612A-000 SCREW 2 Rp6.500
33 84641M64M00-000 WEATHERSTRIP, FRONT DOOR OPNG, R 1 Rp466.000
34 84651M64M00-000 WEATHERSTRIP, FRONT DOOR OPNG, L 1 Rp466.000
35 09103M08557-000
SUB: 09103M08537-000		 BOLT 8 Rp8.500
36 83911M64M00-000 COVER, FRONT DOOR SEALING 2 Rp19.000
37 83923M64M00-0CB TAPE, FRONT DOOR OUTER RR, R (BLACK) 1 Rp86.000
38 83924M64M00-0CB TAPE, FRONT DOOR OUTER RR, L (BLACK) 1 Rp86.000
39 83950M64M00-000 GARNISH , FR DR FR OUTER, R 1 Rp58.500
40 09409-06324-000
SUB: 09409B06324N000		 CLIP 2 Rp13.500
41 83960M64M00-000 GARNISH , FR DR FR OUTER, L 1 Rp56.500
42 09409-06324-000
SUB: 09409B06324N000		 .CLIP 2 Rp13.500
43 09250M20031-000
SUB: 09250-20015-000		 CAP 4 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
