SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.83 FRONT HOOD PANELFIG.84 FRONT FENDERFIG.85 FRONT BODY PANELFIG.86 FLOOR PANELFIG.87 SIDE BODY PANELFIG.88 ROOF PANELFIG.89 FRONT BUMPERFIG.90 REAR BUMPERFIG.91 INSTRUMENT PANELFIG.92 VENTILATORFIG.93 HEATER UNITFIG.94 CONSOLE? BOXFIG.95 FLOOR CARPETFIG.96 INTERIOR TRIMFIG.97 COVER/CAPFIG.98 FUEL LID OPENERFIG.99 ROOF LININGFIG.100 MOLDINGFIG.101 SPLASH GUARDFIG.102 EMBLEMFIG.103 WINDSHIELDFIG.104 FRONT DOOR PANELFIG.105 FRONT DOOR REGURATORFIG.106 FRONT DOOR LOCKFIG.107 REAR DOOR PANELFIG.108 REAR DOOR REGULATORFIG.109 REAR DOOR LOCKFIG.110 BACK DOOR PANELFIG.111 BACK DOOR LOCKFIG.112 MIRROR/SUNVISORFIG.113 SEAT BELTFIG.114 FR RH SEATFIG.115 FR LH SEATFIG.116 REAR SEATFIG.117 PARCEL SHELFFIG.118 FUEL TANKFIG.119 TOOLFIG.120 AIR CONDITIONERFIG.121 COMPRESSOR

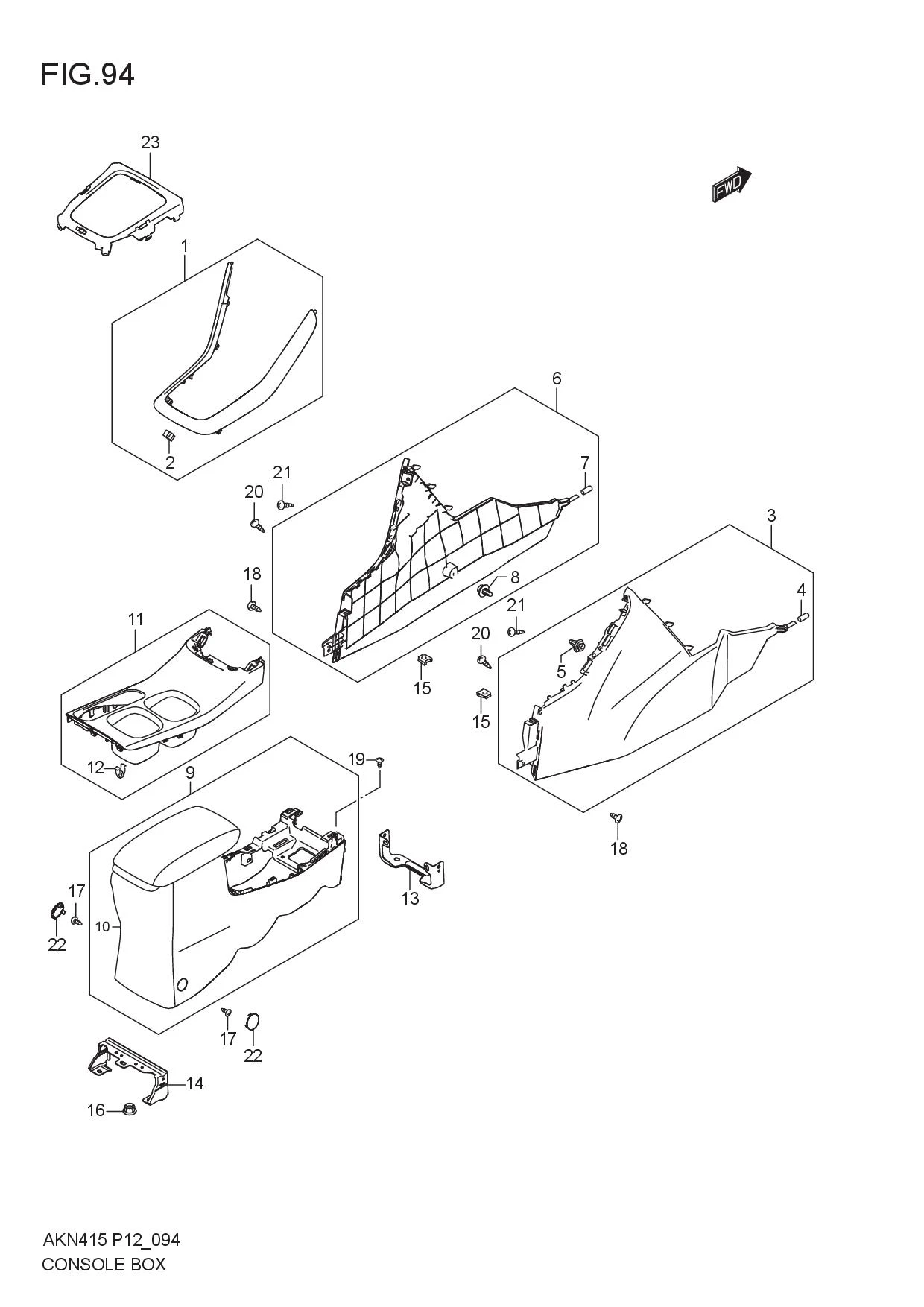

FIG.94 CONSOLE? BOX

FIG.94 CONSOLE? BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75811M65M00-ZML ORNAMENT, I/P CENTER LOWER (SILVER) 1 Rp218.500
2 09409M08344-000 .CLIP 6 Rp4.500
3 75830M65M00-5PK COVER , FLOOR CONSOLE FR, R (BLACK) 1 Rp144.000
4 73132-57L00-000 .CAP, FLOOR CONSOLE COVER 1 Rp38.000
5 09409M10321-000 .CLIP 1 Rp5.000
6 75840M65M00-5PK COVER , FLOOR CONSOLE FR, L (BLACK0 1 Rp144.000
7 73132-57L00-000 .CAP, FLOOR CONSOLE COVER 1 Rp38.000
8 09409M10321-000 .CLIP 1 Rp5.000
9 75850M65M00-5PK BOX , FLOOR CONSOLE RR (BLACK) 1 Rp2.710.500
10 75852M65M00-5PK .COVER , FLOOR CONSOLE RR (BLACK) 1 Rp128.000
11 75861M65M10-5PK PANEL, FLOOR CONSOLE RR (BLACK) 1 Rp197.500
12 09409M08344-000 .CLIP 6 Rp4.500
13 75871M61M00-000 BRACKET, FL CONSOLE BOX FR 1 Rp27.000
14 75872M61M00-000 BRACKET, FL CONSOLE BOX RR 1 Rp45.500
15 09148M05L04-000 NUT 2 Rp5.000
16 09159-06076-000 NUT 2 Rp19.500
17 09125M05142-000 SCREW 2 Rp8.500
18 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
19 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
21 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
22 75825M65M00-5PK CAP, FLOOR CONSOLE RR (BLACK) 2 Rp60.500
23 75822-61M10-5PK
SUB: 75822M61M10-5PK		 GARNISH, GEAR SHIFT AT (BLACK) 1 Rp46.000 6AT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
