SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.83 FRONT HOOD PANELFIG.84 FRONT FENDERFIG.85 FRONT BODY PANELFIG.86 FLOOR PANELFIG.87 SIDE BODY PANELFIG.88 ROOF PANELFIG.89 FRONT BUMPERFIG.90 REAR BUMPERFIG.91 INSTRUMENT PANELFIG.92 VENTILATORFIG.93 HEATER UNITFIG.94 CONSOLE? BOXFIG.95 FLOOR CARPETFIG.96 INTERIOR TRIMFIG.97 COVER/CAPFIG.98 FUEL LID OPENERFIG.99 ROOF LININGFIG.100 MOLDINGFIG.101 SPLASH GUARDFIG.102 EMBLEMFIG.103 WINDSHIELDFIG.104 FRONT DOOR PANELFIG.105 FRONT DOOR REGURATORFIG.106 FRONT DOOR LOCKFIG.107 REAR DOOR PANELFIG.108 REAR DOOR REGULATORFIG.109 REAR DOOR LOCKFIG.110 BACK DOOR PANELFIG.111 BACK DOOR LOCKFIG.112 MIRROR/SUNVISORFIG.113 SEAT BELTFIG.114 FR RH SEATFIG.115 FR LH SEATFIG.116 REAR SEATFIG.117 PARCEL SHELFFIG.118 FUEL TANKFIG.119 TOOLFIG.120 AIR CONDITIONERFIG.121 COMPRESSOR

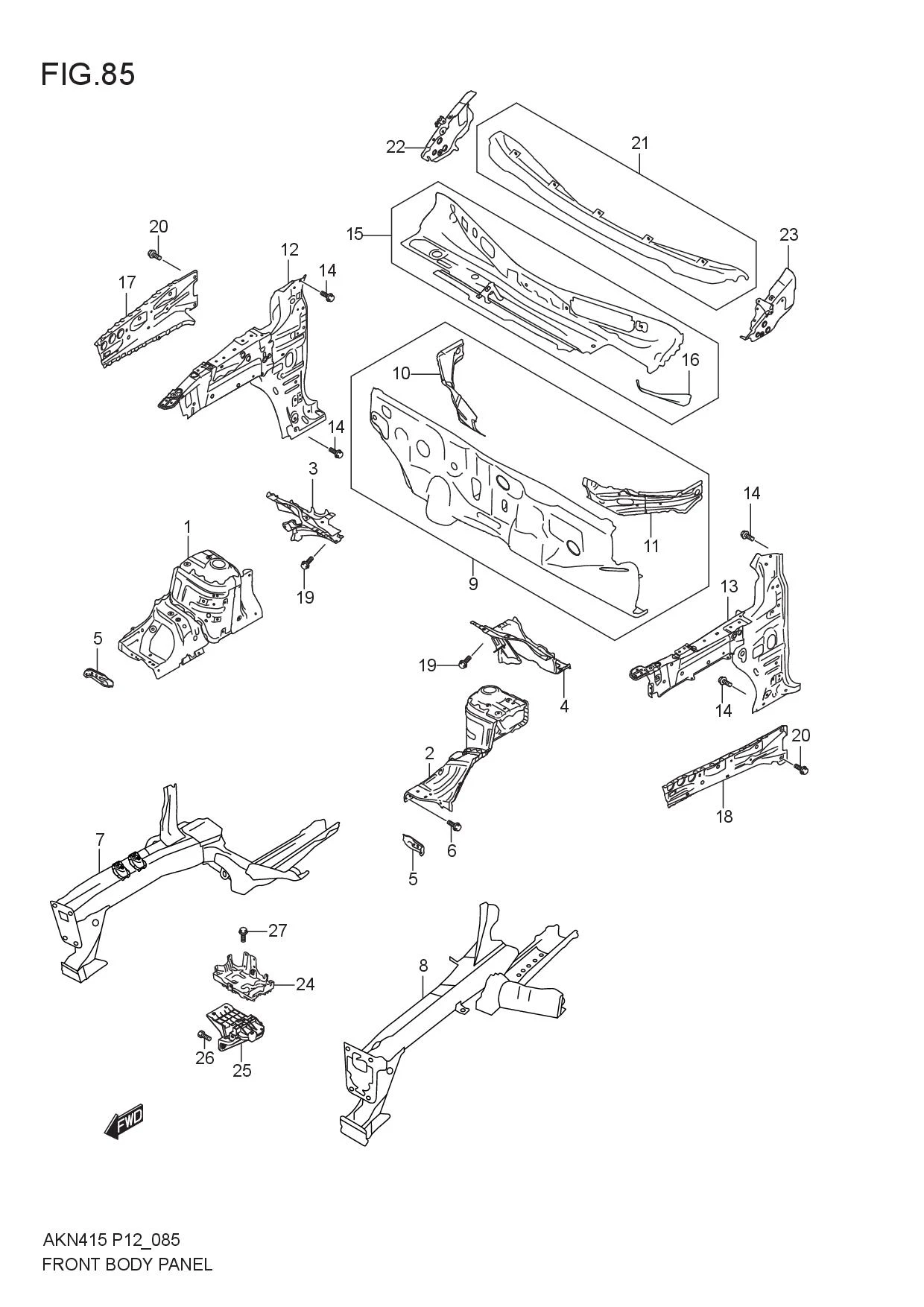

FIG.85 FRONT BODY PANEL

FIG.85 FRONT BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 58310M64M00-000 PANEL, FENDER APRON, RH 1 Rp1.001.000
2 58410M64M00-000 PANEL, FENDER APRON, LH 1 Rp1.001.000
3 58320M64M00-000 REINF, COWL UPPER, RH 1 Rp581.000
4 58420M64M00-000 REINF, COWL UPPER, LH 1 Rp581.000
5 58333M64M00-000 BRACKET, FR FENDER LOWER 2 Rp23.500
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
7 58600M64M00-000 MEMBER ASSY, APRON SIDE, RH 1 Rp6.265.500
8 58700M64M00-000 MEMBER ASSY, APRON SIDE, LH 1 Rp6.265.500
9-1 59100M64M40-000 PANEL, DASH 1 Rp3.273.500 5MT
9-2 59100M64M20-000 PANEL, DASH 1 Rp3.295.000 6AT
10 59140M64M00-000 .REINF, DASH PANEL SIDE, RH 1 Rp272.500
11 59150M64M00-000 .REINF, DASH PANEL SIDE, LH 1 Rp272.500
12 59230M64M00-000 PANEL, DASH SIDE, RH 1 Rp723.000
13 59280M64M00-000 PANEL, DASH SIDE, LH 1 Rp723.000
14 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 6 -
15 59300M64M00-000 PANEL, COWL UPPER 1 Rp1.617.000
16 59312M61M00-000 .SEALING, COWL VENTILATOR 1 Rp45.500
17 59411M64M00-000 MEMBER, COWL SIDE OUTER, RH 1 Rp246.000
18 59461M64M00-000 MEMBER, COWL SIDE OUTER, LH 1 Rp246.000
19 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
20 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500
21 59710M64M00-000 PANEL, COWL TOP 1 Rp554.000
22 59740M64M00-000 PANEL, COWL TOP SIDE, RH 1 Rp161.000
23 59750M64M00-000 PANEL, COWL TOP SIDE, LH 1 Rp161.000
24 72521M66M00-000 TRAY, BATTERY 1 Rp329.500
25 72522M66M00-000 BRACKET, BATTERY 1 Rp459.500
26 09118-08165-000
SUB: 09118-08119-000		 BOLT 5 Rp14.000
27 02162-0625A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
