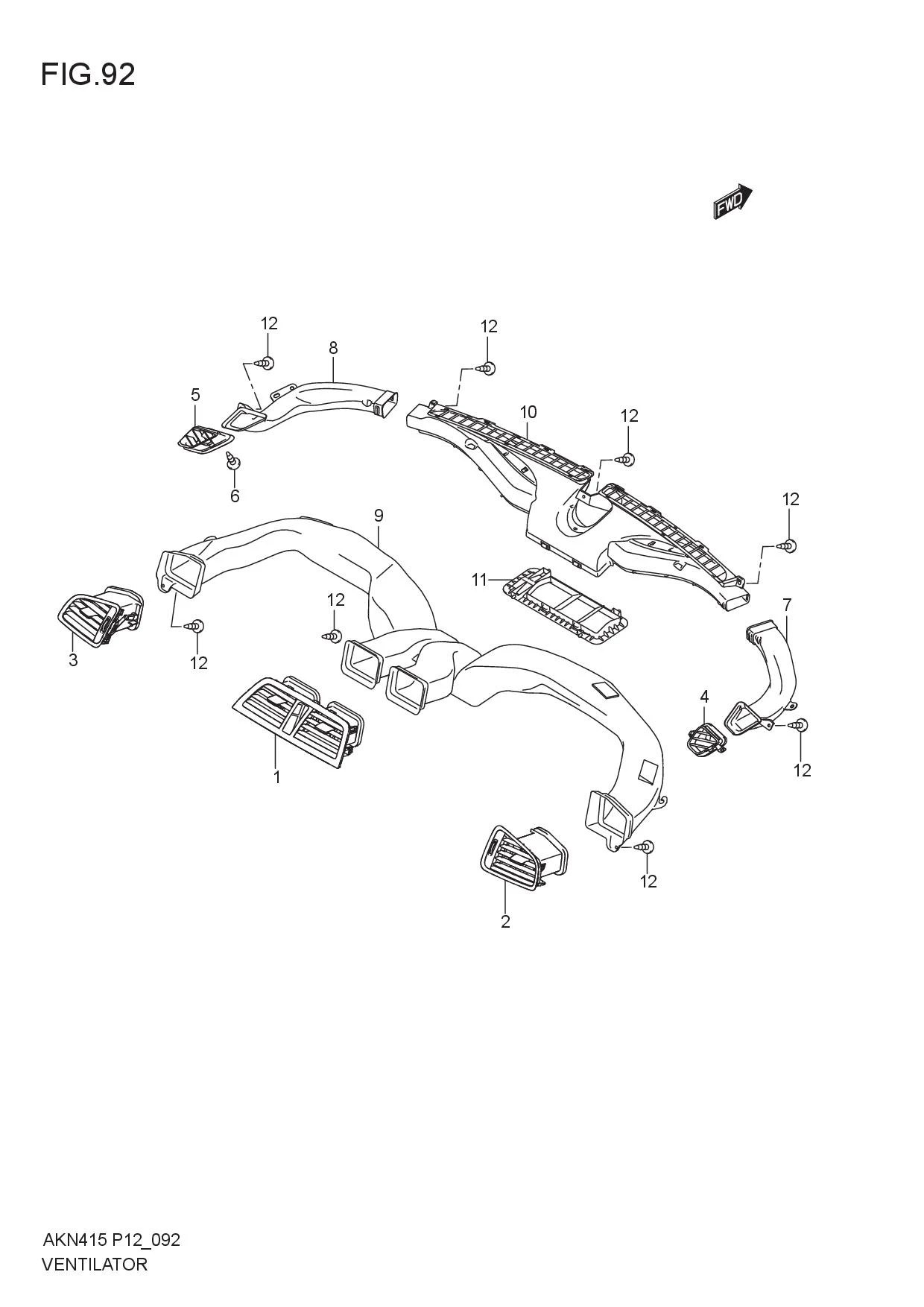

FIG.92 VENTILATOR

FIG.92 VENTILATOR
No No. Part Description Qty Price Per Pcs Remarks
1 73610M65M00-C48 LOUVER, CTR VENT (CHROME/BLACK) 1 Rp222.000
2 73630M65M00-HTV LOUVER, SIDE VENT RH (CHROME/SILVER) 1 Rp310.000
3 73640M65M00-HTV LOUVER, SIDE VENT LH (CHROME/CILVER) 1 Rp310.000
4 73651M65M00-000 NOZZLE, SIDE DEMISTER, RH 1 Rp29.000
5 73652M65M00-000 NOZZLE, SIDE DEMISTER, LH 1 Rp27.000
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
7 73681M65M00-000 DUCT, DEMISTER, RH 1 Rp32.000
8 73691M65M00-000 DUCT, DEMISTER, LH 1 Rp32.000
9 74620M65M00-000 DUCT, VENT 1 Rp189.500
10 73661M65M00-000 NOZZLE, DFR 1 Rp227.000
11 73662M74L00-000 ADAPTER, DFR NOZZLE 1 Rp21.500
12 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 8 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
