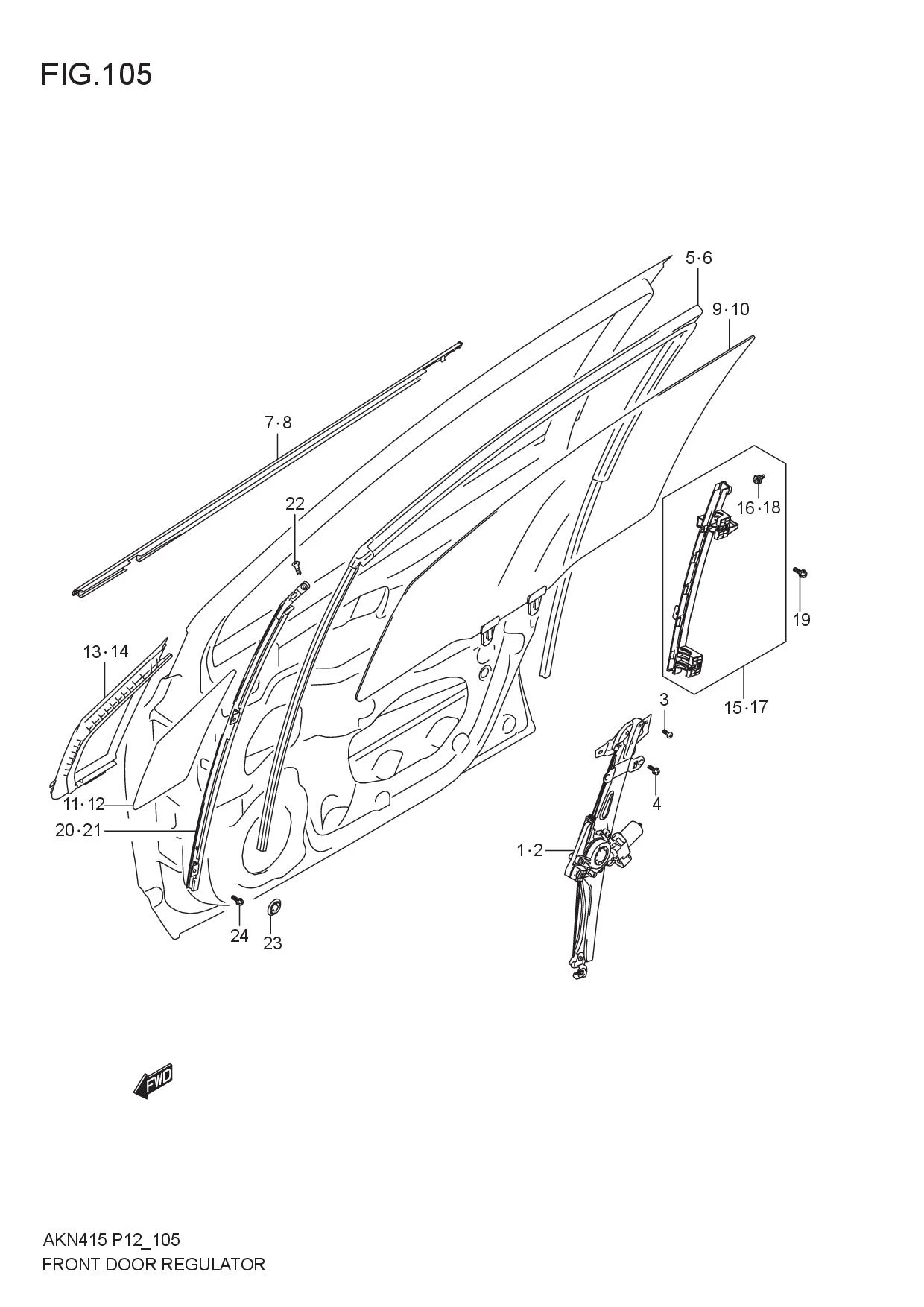

FIG.105 FRONT DOOR REGURATOR

FIG.105 FRONT DOOR REGURATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83401M64M11-000
SUB: 83401M64M10-000		 REGULATOR ASSY, FRONT WINDOW, R 1 Rp361.000
2 83402M64M20-000
SUB: 83402M64M00-000		 REGULATOR ASSY, FRONT WINDOW, L 1 Rp344.500
3 02112M7612A-000 SCREW 4 Rp5.500
4 02162-0612A-000 BOLT 8 Rp11.000
5 83661M64M02-000
SUB: 83661M64M01-000		 RUN, FRONT DOOR GLASS, R 1 Rp536.500
6 83665M64M01-000 RUN, FRONT DOOR GLASS, L 1 Rp536.500
7 83811M64M00-000 WEATHERSTRIP, FRONT DOOR OUT,R 1 Rp159.000
8 83821M64M00-000 WEATHERSTRIP, FRONT DOOR OUT,L 1 Rp159.000
9 84501M64M02-000
SUB: 84501M64M00-000		 GLASS , FRONT DOOR WINDOW, R 1 Rp664.500
10 84502M64M02-000
SUB: 84502M64M00-000		 GLASS , FRONT DOOR WINDOW, L 1 Rp664.500
11 84521M64M02-000
SUB: 84521M64M00-000		 GLASS, FRONT DOOR WDO FRONT, R 1 Rp179.500
12 84526M64M02-000
SUB: 84526M64M00-000		 GLASS, FRONT DOOR WDO FRONT, L 1 Rp179.500
13 84614M64M00-000 WEATHERSTRIP, FR DR WDO FRONT,R 1 Rp322.000
14 84615M64M00-000 WEATHERSTRIP, FR DR WDO FRONT,L 1 Rp322.000
15 81610M64M00-000 SASH , FR DR REAR LOWER, R 1 Rp64.000
16 09409-10327-000
SUB: 09409B10312N000		 .CLIP 1 Rp5.000
17 81620M64M00-000 SASH , FR DR REAR LOWER, L 1 Rp64.000
18 09409-10327-000
SUB: 09409B10312N000		 .CLIP 1 Rp5.000
19 09122-76001-000 BOLT 4 Rp16.500
20 81710M64M00-000 SASH , FRONT DOOR FRONT, R 1 Rp242.500
21 81720M64M00-000 SASH , FRONT DOOR FRONT, L 1 Rp242.500
22 02122M0512A-000 SCREW 2 Rp3.500
23 09250M25L02-000
SUB: 09250M25L01-000		 CAP 2 Rp5.500
24 02162-0612A-000 BOLT 4 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
