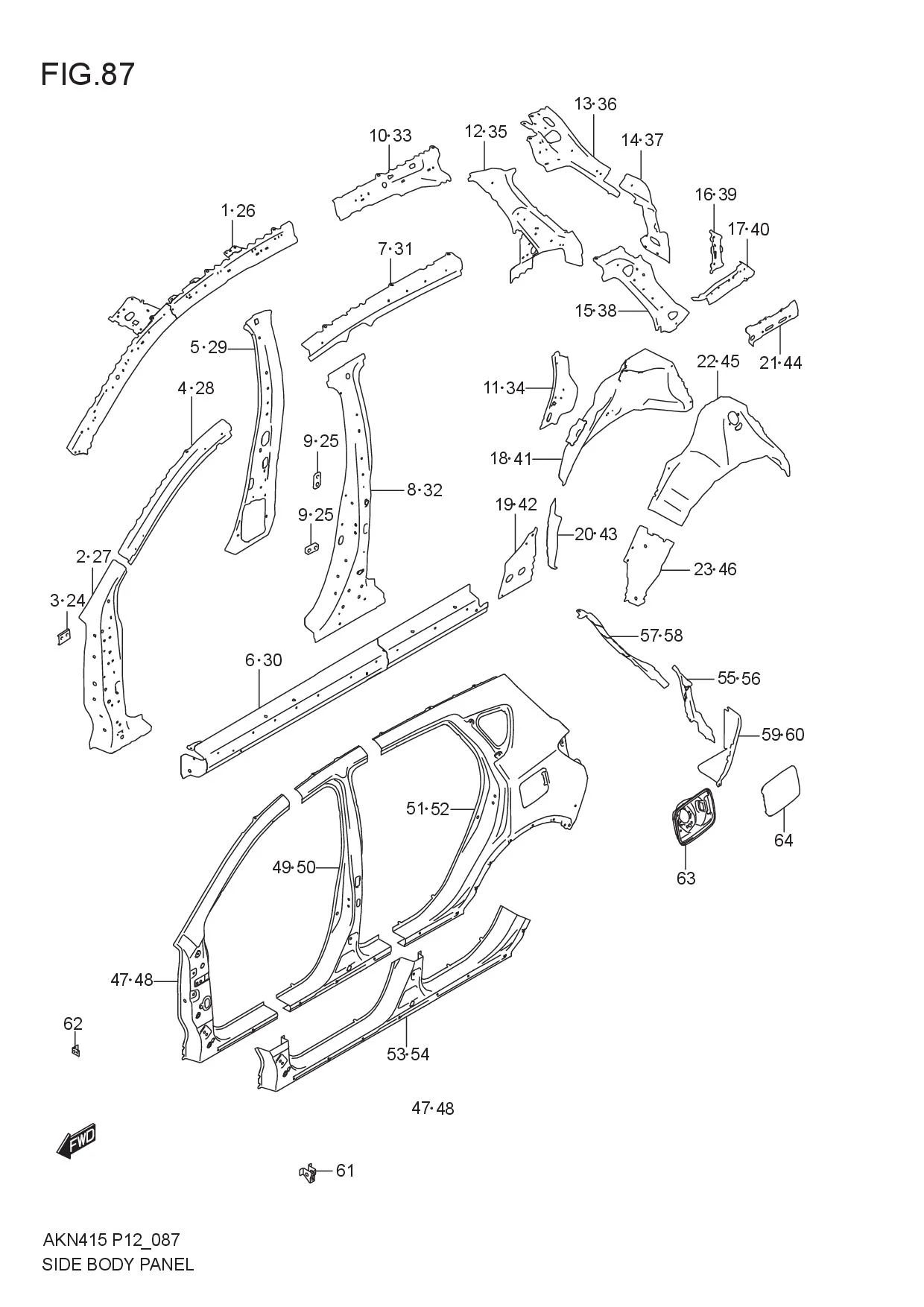

FIG.87 SIDE BODY PANEL

FIG.87 SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63110M64M00-000 PANEL, FR PILLAR INNER, RH 1 Rp632.000
2 63140M64M00-000 REINF, FRONT DOOR HINGE, RH 1 Rp997.500
3 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER, FRONT DOOR HINGE 2 Rp18.500
4 63151M64M00-000 REINF, FR PILLAR UPPER, RH 1 Rp379.000
5 63211M64M00-000 PANEL, CTR PILLAR INNER, RH 1 Rp685.000
6 63220M64M00-000 STRENGTH, SIDE SILL, RH 1 Rp1.415.500
7 63231M64M00-000 REINF, ROOF SIDE, RH 1 Rp392.000
8 63240M64M00-000 REINF, REAR DOOR HINGE, RH 1 Rp1.332.500
9 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, REAR DOOR HINGE 2 Rp9.500
10 63310M64M00-000 RAIL, ROOF SIDE INR RR, RH 1 Rp377.000
11 63320M64M00-000 REINF, RR DOOR STRIKER, RH 1 Rp110.500
12 63330M61M00-000 REINF, REAR PILLAR INNER, RH 1 Rp581.000
13 63341M64M00-000 EXTENSION, QTR INNER UPPER, RH 1 Rp249.000
14 63342M64M00-000 PANEL, LAMP HOUSE INNER, RH 1 Rp195.500
15 63351M64M00-000 REINF, REAR PILLAR, RH 1 Rp253.500
16 63361M66M00-000 MEMBER, QTR INNER UPR, RH 1 Rp22.500
17 63362M64M00-000 MEMBER, SEAT BELT RETRACTOR, RH 1 Rp117.500
18 63410M64M10-000 PANEL, WHEEL HOUSE INNER, RH 1 Rp1.271.500
19 63431M64M00-000 PANEL, SIDE SILL REAR, RH 1 Rp80.000
20 63432M64M00-000 REINF, RR WHEEL HOUSE FR, RH 1 Rp117.500
21 63441M61M00-000 MEMBER, QTR INNER LWR, RH 1 Rp118.500
22 63481M64M00-000 PANEL, WHEEL HOUSE OUTER, RH 1 Rp398.000
23 63482M64M00-000 EXTENSION, WHEEL HOUSE OUTER, RH 1 Rp122.500
24 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER, FRONT DOOR HINGE 2 Rp18.500
25 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, REAR DOOR HINGE 2 Rp9.500
26 63510M64M00-000 PANEL, FR PILLAR INNER, LH 1 Rp632.000
27 63540M64M00-000 REINF, FRONT DOOR HINGE, LH 1 Rp1.003.500
28 63551M64M00-000 REINF, FR PILLAR UPPER, LH 1 Rp379.000
29 63611M64M00-000 PANEL, CTR PILLAR INNER, LH 1 Rp685.000
30 63620M64M00-000 STRENGTH, SIDE SILL, LH 1 Rp1.415.500
31 63631M64M00-000 REINF, ROOF SIDE, LH 1 Rp392.000
32 63640M64M00-000 REINF, REAR DOOR HINGE, LH 1 Rp1.332.500
33 63710M64M00-000 RAIL, ROOF SIDE INR RR, LH 1 Rp377.000
34 63720M64M00-000 REINF, RR DOOR STRIKER, LH 1 Rp110.500
35 63730M61M00-000 REINF, REAR PILLAR INNER, LH 1 Rp586.000
36 63741M64M00-000 EXTENSION, QTR INNER UPPER, LH 1 Rp254.000
37 63742M64M00-000 PANEL, LAMP HOUSE INNER, LH 1 Rp195.500
38 63751M64M00-000 REINF, REAR PILLAR, LH 1 Rp258.500
39 63761M66M00-000 MEMBER, QTR INNER UPR, LH 1 Rp24.500
40 63762M64M00-000 MEMBER, SEAT BELT RETRACTOR, LH 1 Rp122.500
41 63810M64M10-000 PANEL, WHEEL HOUSE INNER, LH 1 Rp1.271.500
42 63831M64M00-000 PANEL, SIDE SILL REAR, LH 1 Rp80.000
43 63832M64M00-000 REINF, RR WHEEL HOUSE FR, LH 1 Rp117.500
44 63841M64M00-000 MEMBER, QTR INNER LWR, LH 1 Rp120.000
45 63881M64M00-000 PANEL, WHEEL HOUSE OUTER, LH 1 Rp398.000
46 63882M64M00-000 EXTENSION, WHEEL HOUSE OUTER, LH 1 Rp122.500
47 DISCONTINUE
SUB: 64111M64M00-000		 PANEL, SIDE BODY OUTER, RH 1 -
48 DISCONTINUE
SUB: 64511M64M00-000		 PANEL, SIDE BODY OUTER, LH 1 -
49 64111M64M00-P11 PANEL, A-PILLAR, RH 1 Rp2.266.500
50 64511M64M00-P11 PANEL, A-PILLAR, LH 1 Rp2.266.500
51 64111M64M00-P21 PANEL, B-PILLAR, RH 1 Rp2.077.500
52 64511M64M00-P21 PANEL, B-PILLAR, LH 1 Rp2.077.500
53 64111M64M00-P31 PANEL, QUARTER, RH 1 Rp3.263.500
54 64511M64M00-P31 PANEL, QUARTER, LH 1 Rp3.263.500
55 64111M64M00-P41 PANEL, SIDE SILL, RH 1 Rp5.194.500
56 64511M64M00-P41 PANEL, SIDE SILL, LH 1 Rp5.194.500
57 64130M64M00-000 PANEL, RR LAMP HOUSE OUTER, RH 1 Rp184.500
58 64530M64M00-000 PANEL, RR LAMP HOUSE OUTER, LH 1 Rp184.500
59 64120M64M00-000 EXTENSION, SIDE BODY OUTER, RH 1 Rp256.000
60 64520M64M00-000 EXTENSION, SIDE BODY OUTER, LH 1 Rp256.000
61 64132M64M00-000 EXTENSION, SIDE BODY OUTER LWR, RH 1 Rp126.500
62 64532M64M00-000 EXTENSION, SIDE BODY OUTER LWR, LH 1 Rp126.500
63 64112M64M00-000 BRACKET, FR FENDER LOWER 2 Rp19.000
64 64113M63J00-000 BRACKET, FR FENDER 2 Rp7.500
65 64571M64M00-000 BOX, FUEL FILLER 1 Rp142.500
66 64850M66M00-000 DOOR, FUEL FILLER 1 Rp240.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
