SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.83 FRONT HOOD PANELFIG.84 FRONT FENDERFIG.85 FRONT BODY PANELFIG.86 FLOOR PANELFIG.87 SIDE BODY PANELFIG.88 ROOF PANELFIG.89 FRONT BUMPERFIG.90 REAR BUMPERFIG.91 INSTRUMENT PANELFIG.92 VENTILATORFIG.93 HEATER UNITFIG.94 CONSOLE? BOXFIG.95 FLOOR CARPETFIG.96 INTERIOR TRIMFIG.97 COVER/CAPFIG.98 FUEL LID OPENERFIG.99 ROOF LININGFIG.100 MOLDINGFIG.101 SPLASH GUARDFIG.102 EMBLEMFIG.103 WINDSHIELDFIG.104 FRONT DOOR PANELFIG.105 FRONT DOOR REGURATORFIG.106 FRONT DOOR LOCKFIG.107 REAR DOOR PANELFIG.108 REAR DOOR REGULATORFIG.109 REAR DOOR LOCKFIG.110 BACK DOOR PANELFIG.111 BACK DOOR LOCKFIG.112 MIRROR/SUNVISORFIG.113 SEAT BELTFIG.114 FR RH SEATFIG.115 FR LH SEATFIG.116 REAR SEATFIG.117 PARCEL SHELFFIG.118 FUEL TANKFIG.119 TOOLFIG.120 AIR CONDITIONERFIG.121 COMPRESSOR

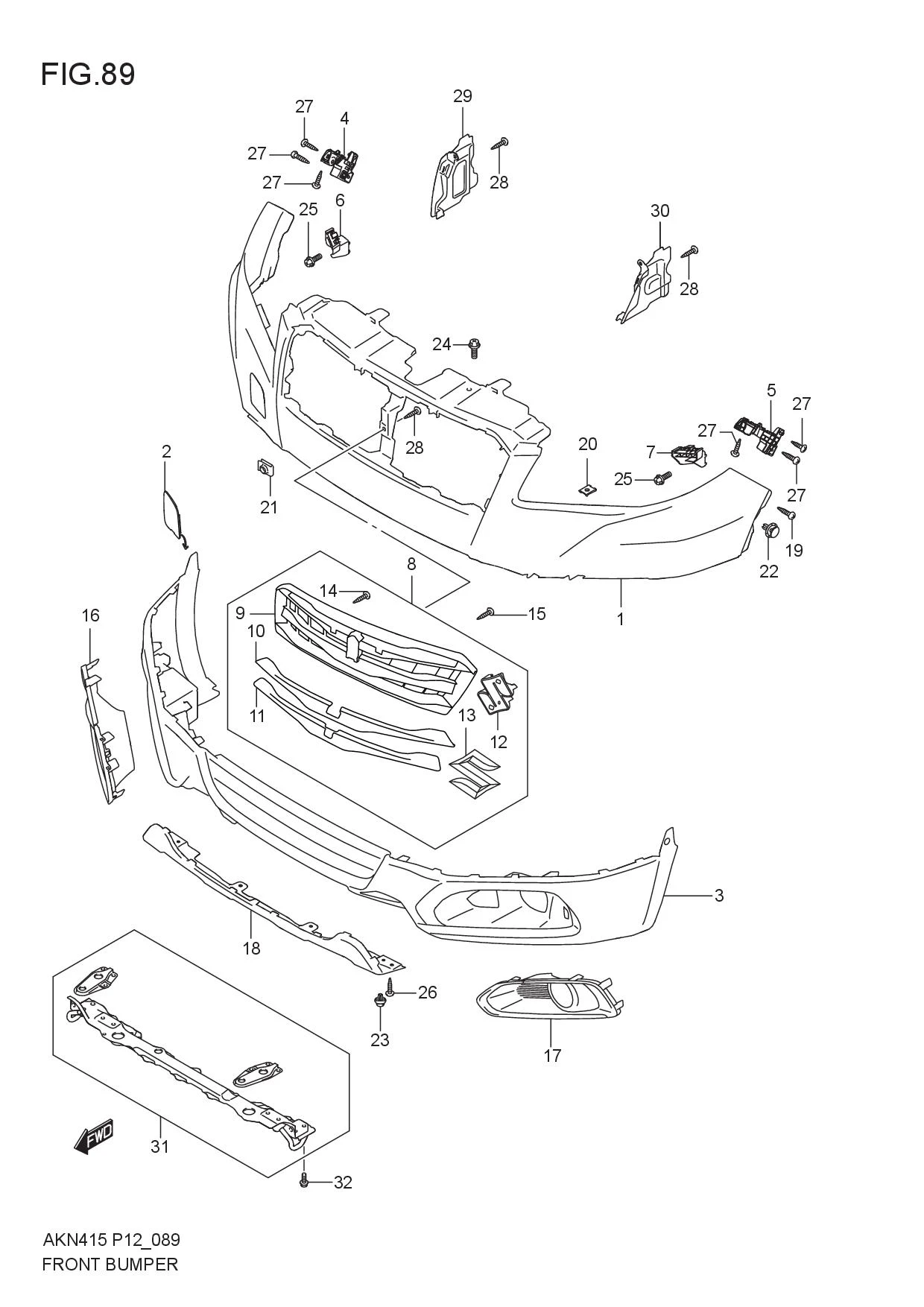

FIG.89 FRONT BUMPER

FIG.89 FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711M64M00-799 BUMPER, FRONT UPPER (PRIMARY) 1 Rp1.246.500 PAINT TO MATCH
2 71712M61M00-5PK CAP, FRONT BUMPER (BLACK) 1 Rp17.500
3 71721M61M00-5PK BUMPER, FRONT LOWER (BLACK) 1 Rp1.069.500
4 71731M61M00-000 HOLDER, FR BUMPER SIDE, R 1 Rp34.500
5 71732M61M00-000 HOLDER, FR BUMPER SIDE, L 1 Rp34.500
6 71733M61M00-000 HOLDER, FR BUMPER FRONT, R 1 Rp23.000
7 71734M61M00-000 HOLDER, FR BUMPER FRONT, L 1 Rp23.000
8 71740M64M00-C48 GRILLE, RADIATOR UPPER (BLACK/CHROME) 1 Rp897.000
9 71741M64M00-5PK .GRILLE, RADIATOR UPPER (BLACK) 1 Rp231.000
10 71742M64M00-0PG .GARNISH, RADIATOR GRILLE UPR (CHROME) 1 Rp299.500
11 71743M64M00-0PG .GARNISH, RADIATOR GRILLE LWR (CHROME) 1 Rp332.000
12 71744M64M00-5PK .COVER, MARK(S) (BLACK) 1 Rp43.500
13 77811-65J00-0PG .EMBLEM, MARK(S) 1 Rp131.500
14 03541-0516A-000
SUB: 03541B0516AN000		 .SCREW 8 Rp3.500
15 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
16 71750M64M10-C48 BEZEL , FRONT FOG LAMP, R (BLACK/CHROME) 1 Rp119.000
17 71760M64M10-C48 BEZEL , FRONT FOG LAMP, L (BLACK/CHROME) 1 Rp119.000
18 71771M61M10-PER GARNISH, FR BUMPER LOWER (SILVER RESIN) 1 Rp244.000
19 09132M05063-000 SCREW 2 Rp5.500
20 09148M05071-000 NUT 4 Rp6.000
21 08315-11069-000
SUB: 09148M06022-000		 NUT 2 Rp2.500
22 09409M07L01-000 CLIP 2 Rp5.000
23 09409M07L01-000 CLIP 2 Rp5.000
24 01551-0616C-000 BOLT 4 Rp14.500
25 01551-0616C-000 BOLT 2 Rp14.500
26 03241M0516A-000 SCREW 4 Rp4.500
27 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 6 Rp3.500
28 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 5 Rp3.500
29 71781M61M00-000 COVER, FRONT END SIDE UPR, R 1 Rp22.000
30 71782M61M00-000 COVER, FRONT END SIDE UPR, L 1 Rp22.000
31 71100M64M21-000
SUB: 71100M64M20-000		 MEMBER , RADIATOR SUPPORT 1 Rp924.500
32 01551-1025A-000 BOLT 6 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
