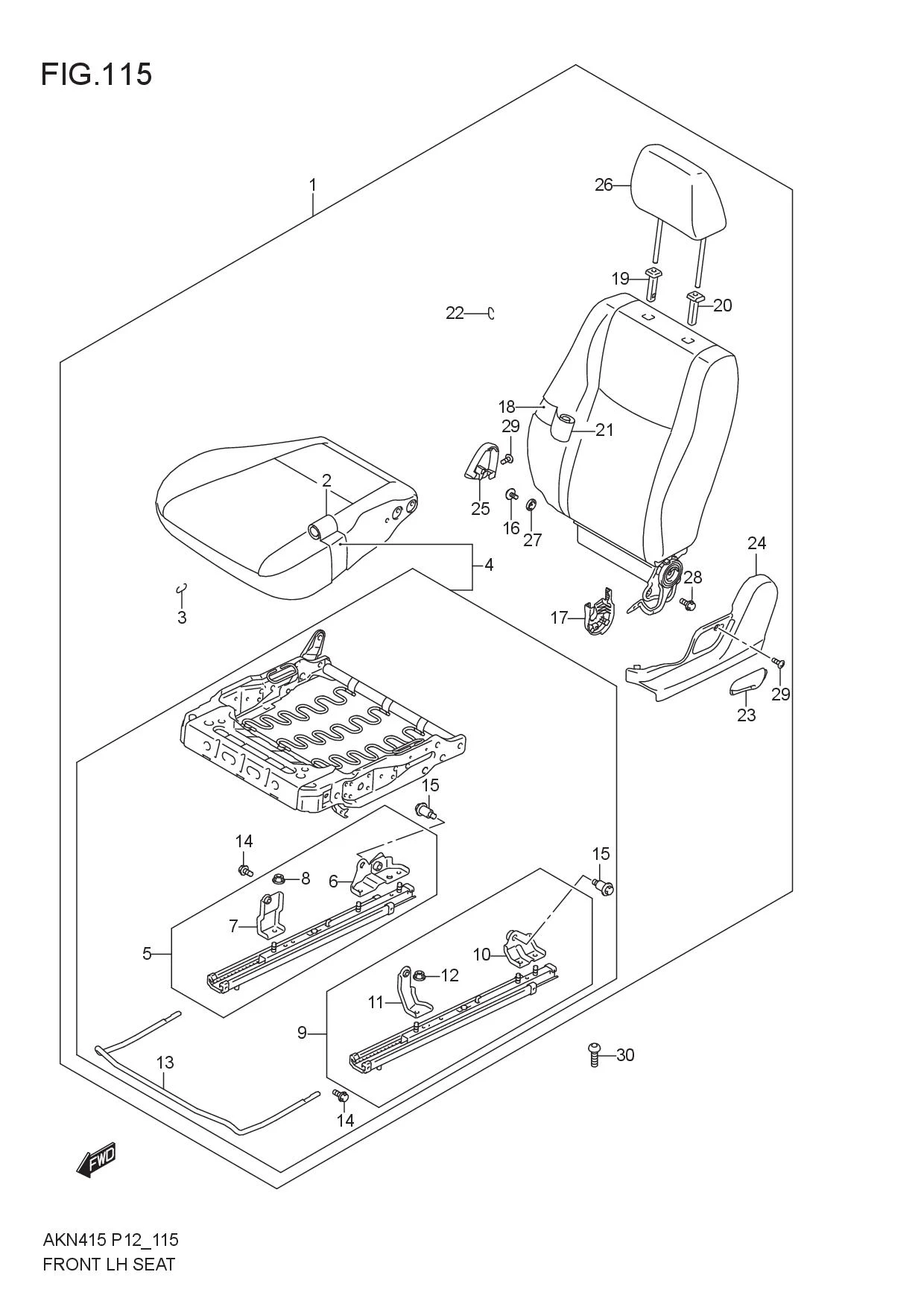

FIG.115 FR LH SEAT

FIG.115 FR LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 85002M65M40-BEU		 SEAT ASSY, FR, L (GREY/BLACK) 1 -
2 85680M65M40-BEU .TRIM , FR CUSH, L (GREY/BLACK) 1 Rp1.038.500
3 09387-19001-000
SUB: 09387B19001N000		 .RING, TRIM 13 Rp9.000
4 85106M79M00-000 .CUSHION S/ASSY, FR, L 1 Rp2.657.500
5 86602M79M01-000 ..ADJUSTER SUB ASSY,FR INSIDE, L 1 Rp773.000
6 86762M79M00-000 ...RISER , RR INSIDE, L 1 Rp50.500
7 86771M74L00-000 ...RISER, FR INSIDE, L 1 Rp19.000
8 08316-1008A-000
SUB: 08316B1008AN000		 ...NUT, RISER 3 Rp3.500
9 86604M79M00-000 ..ADJUSTER SUB ASSY,FR OUTSIDE, L 1 Rp752.000
10 86647M74LA0-000 ...RISER, RR OUTSIDE, L 1 Rp45.500
11 86760M74L00-000 ...RISER , FR OUTSIDE, L 1 Rp16.000
12 08316-1008A-000
SUB: 08316B1008AN000		 ...NUT, RISER 3 Rp3.500
13 86691M74L00-000 ..HANDLE, FR SEAT ADJUSTER 1 Rp128.500
14 01550-0816A-000
SUB: 01550B0816AN000		 ..BOLT, FR RISER 2 Rp6.000
15 01550-1016A-000
SUB: 01550B1016AN000		 ..BOLT, RR RISER 2 Rp5.500
16 85295-58J01-000
SUB: 85295B58J01N000		 ..BOLT, FR BACK 1 Rp34.000
17 85242-75L00-5PK COVER, FR BACK FRAME, L (BLACK) 1 Rp921.000
18 85306M79M10-000 BACK S/ASSY, FR, L 1 Rp1.131.000
19 85341M79M10-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp9.500
20 85840M79M20-5PK GUIDE , HEADRESTRAINT (BLACK) 1 Rp11.000
21 85880M65M40-BEU TRIM , FR BACK, L (GREY/BLACK) 1 Rp860.000
22 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 23 Rp9.000
23 85711-68K00-5PK KNOB, RCLNG, L (BLACK) 1 Rp299.500
24 85721M84M00-5PK COVER, RCLNG OUTSIDE, L (BLACK) 1 Rp133.000
25 85741M79M10-5PK COVER, FR HINGE INSIDE, L (BLACK) 1 Rp11.500
26 86401M79M10-B0W HEADRESTRAINT ASSY (GREY/BLACK) 1 Rp403.000
27 87286-58J10-000
SUB: 87286B58J10N000		 BUSH, FR BACK FIX 1 Rp4.500
28 01550-1016A-000
SUB: 01550B1016AN000		 BOLT, FR BACK 2 Rp5.500
29 03241-0510A-000 SCREW, RECL COVER 3 Rp8.000
30 09119M08106-000 BOLT, FR MTG 4 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
