SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body

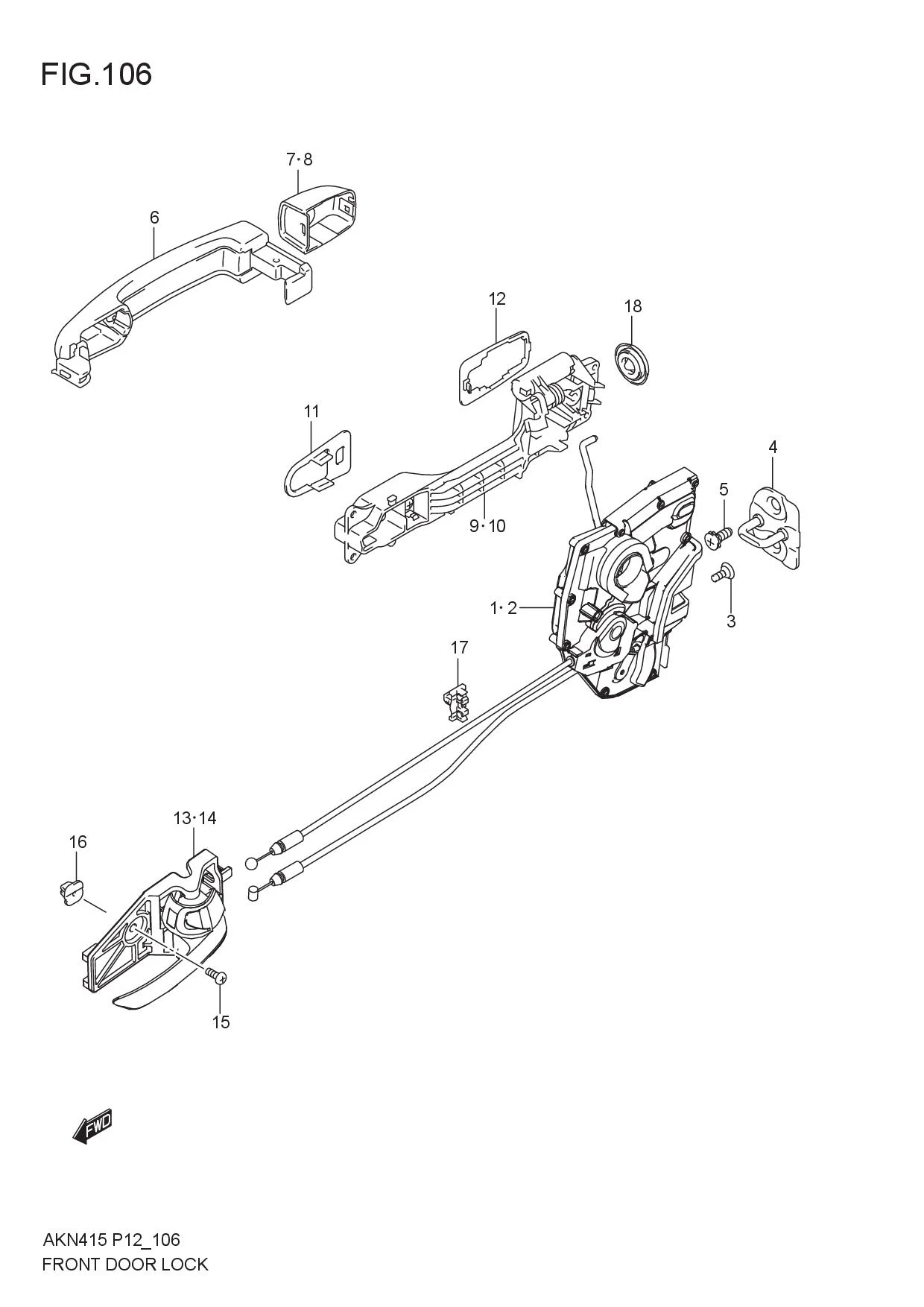

FIG.106 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	82201M64MD1-000 SUB: 82201M64MD0-000	LATCH ASSY, FRONT DOOR, R	1	Rp827.500
2	82202M64MD1-000 SUB: 82202M64MD0-000	LATCH ASSY, FRONT DOOR, L	1	Rp808.500
3	09137-06028-000	SCREW	6	Rp18.500
4	DISCONTINUE SUB: 82610M75J00-000	STRIKER , DOOR LATCH	2	-
5	09139-08025-000	SCREW	4	Rp23.000
6-1	82812M79M10-ZHJ	HANDLE, SIDE DOOR OUT (WHITE)	1	Rp180.000
6-2	82812M79M10-ZQS	HANDLE, SIDE DOOR OUT (SILVER)	1	Rp184.500
6-3	82812M79M10-ZQT	HANDLE, SIDE DOOR OUT (BLUE)	1	Rp184.500
6-4	82812M79M10-ZTN	HANDLE, SIDE DOOR OUT (GREY)	1	Rp184.500
7-1	82813M79M02-ZHJ	CAP, FRONT DOOR OUT RH (WHITE)	1	Rp58.500
7-2	82813M79M02-ZQS	CAP, FRONT DOOR OUT RH (SILVER)	1	Rp58.500
7-3	82813M79M02-ZQT	CAP, FRONT DOOR OUT RH (BLUE)	1	Rp60.500
7-4	82813M79M02-ZTN	CAP, FRONT DOOR OUT RH (GREY)	1	Rp58.500
8-1	82813M79M10-ZHJ	CAP, FRONT DOOR OUT LH (WHITE)	1	Rp285.500
8-4	82813M79M10-ZTN	CAP, FRONT DOOR OUT LH (GREY)	1	Rp56.500
8-3	82813M79M10-ZQT	CAP, FRONT DOOR OUT LH (BLUE)	1	Rp58.500
8-2	82813M79M10-ZQS	CAP, FRONT DOOR OUT LH (SILVER)	1	Rp57.000
9	82811M79M11-000	FRAME, FRONT DOOR OUT, R	1	Rp54.000
10	82821M79M11-000	FRAME, FRONT DOOR OUT, L	1	Rp54.000
11	82814M79M00-000	PAD, FRONT DOOR OUT	2	Rp7.000
12	82815M79M00-000	CUSHION, SIDE DOOR OUT	2	Rp7.000
13	83110M74L10-C48	HANDLE , SIDE DOOR INSIDE, R (CHROME/BLACK)	2	Rp111.000
14	83130M74L10-C48	HANDLE , SIDE DOOR INSIDE, L (CHROME/BLACK)	2	Rp111.000
15	09132-05058-000	SCREW, DOOR INSIDE HANDLE	2	Rp14.000
16	83119M75J00-000	NUT, DOOR INSIDE HANDLE	2	Rp5.500
17	83271M50E00-000	CLIP, DOOR INSIDE HANDLE CABLE	2	Rp6.500
18	09250M25L02-000 SUB: 09250M25L01-000	PLUG, FR OUT HANDLE HOLE	2	Rp5.500
