SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

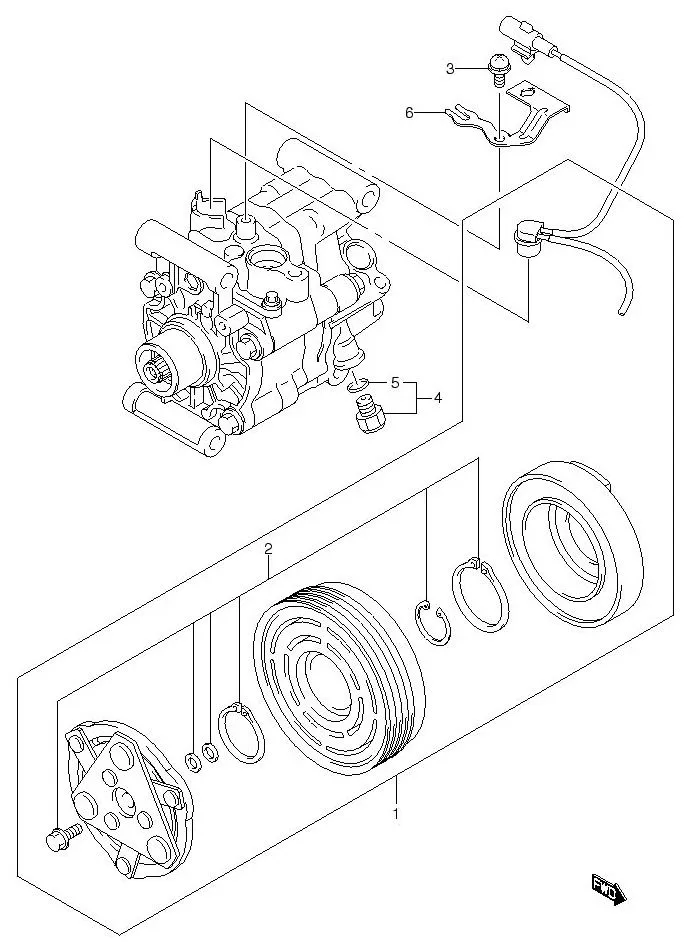

FIG.116 COMPRESSOR

FIG.116 COMPRESSOR
No No. Part Description Qty Price Per Pcs Remarks
95200-63JA1-000 COMPRESSOR ASSY 1 Rp18.920.000
1 95210-63JA0-000 CLUTCH, MAGNET 1 Rp4.852.500
2 DISCONTINUE
SUB: 95212-58JA0-000		 CLIP KIT 1 -
3 DISCONTINUE
SUB: 95254-58JA0-000		 SCREW, CLAMP 1 -
4 DISCONTINUE
SUB: 95271-58JA0-000		 VALVE, RELIEF 1 -
5 DISCONTINUE
SUB: 95272-58JA0-000		 O RING 1 -
6 DISCONTINUE
SUB: 95291-63JA0-000		 PROTECTOR 1 -
6 DISCONTINUE
SUB: 95291-63JA0-000		 PROTECTOR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
