SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

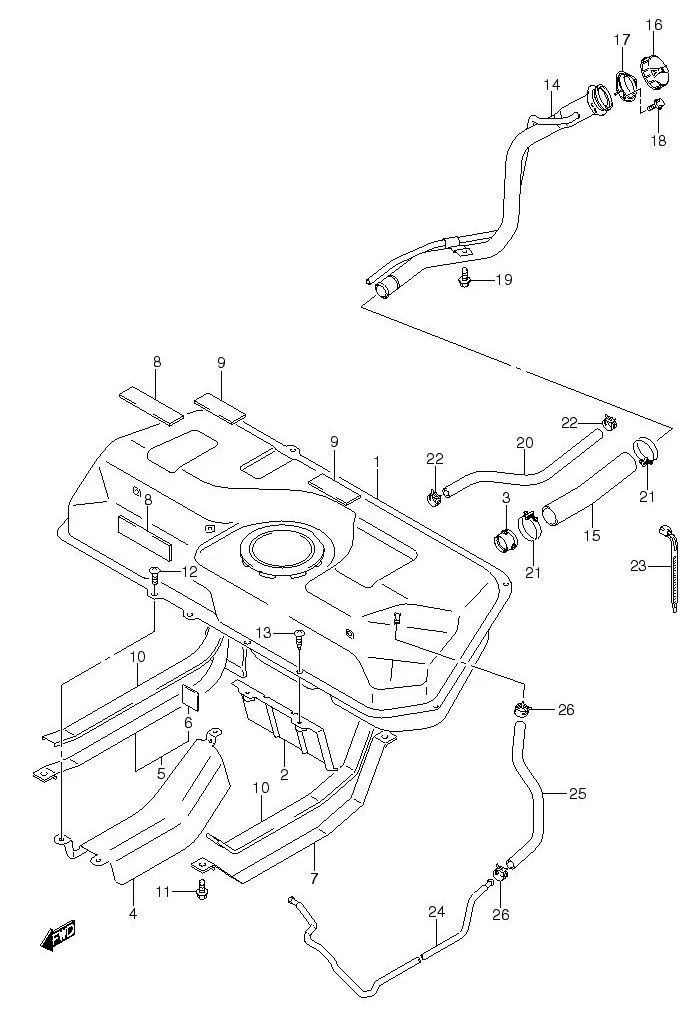

FIG.113 FUEL TANK

FIG.113 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101-63J04-000
SUB: 89101-63J00-000		 TANK ASSY, FUEL 1 Rp5.971.500
2 89191M63J00-000 COVER, FUEL TANK 1 Rp36.500
3 89280-77A00-000 VALVE, FUEL TANK INLET 1 Rp107.000
4 DISCONTINUE
SUB: 89311-63J10-000		 PROTECTOR 1 -
5 89360-63J00-000 BELT, TANK FIXER RH 1 Rp762.500
6 DISCONTINUE
SUB: 84473-80F00-000		 PAD 1 -
7 89370-63J00-000 BELT, TANK FIXER LH 1 Rp634.500
8 DISCONTINUE
SUB: 89381-63J00-000		 PAD 4 -
9 DISCONTINUE
SUB: 89381-63J00-000		 PAD 4 -
10 89385M63J00-000 PAD 2 Rp27.500
11 09118-10078-000
SUB: 09118-10073-000		 BOLT (10X30) 4 Rp19.000
12 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 3 Rp4.000
13 03541-0616A-000 SCREW 2 Rp13.500
14 DISCONTINUE
SUB: 89201-63J30-000		 NECK ASSY, FUEL FILLER 1 -
15 DISCONTINUE
SUB: 89241-63J00-000		 HOSE, FUEL TANK FILLER 1 -
16 89260-50J00-000 CAP ASSY, FUEL FILLER 1 Rp233.000
17 89285M58J00-000 PACKING, FUEL FILLER 1 Rp13.500
18 09116M05014-000 BOLT (5X20) 2 Rp5.500
19 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
20 09355-11188-600 HOSE, FUEL TANK BREATHER 1 Rp92.000 L:600!340
21 09400M45L01-000
SUB: 09400M45311-000		 CLAMP 2 Rp32.500
22 09401M16L01-000
SUB: 09401M16407-000		 CLIP 2 Rp9.000
23 DISCONTINUE
SUB: 09407M19401-000		 CLAMP 1 -
24 DISCONTINUE
SUB: 89483-63J00-000		 PIPE, FUEL EVAPORATOR 1 -
25 09355-56128-600
SUB: 09355-54128-600		 HOSE, TANK TO EVAPORATOR 1 Rp94.000 L:600!340
26 09401-10409-000
SUB: 09401M11415-000		 CLIP 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
