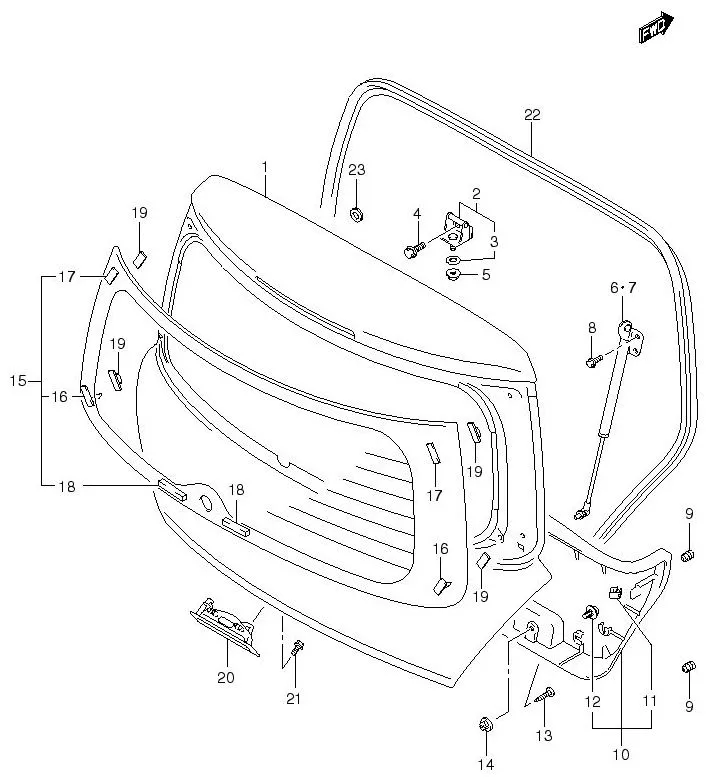

FIG.107 BACK DOOR PANEL

FIG.107 BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100-63J23-000 PANEL ASSY, BACK DOOR 1 Rp7.382.000
2 69510M54G00-000 HINGE, BACK DOOR 2 Rp28.500
3 69571M76G00-000 PACKING, HINGE 2 Rp6.500
4 09111-06086-000 BOLT 4 Rp16.000
5 08361-2508A-000 NUT 2 Rp16.500
6 81800-63812-000
SUB: 81800-63811-000		 BALANCER, BACK DOOR RH 1 Rp1.680.500
7 81800-63822-000
SUB: 81800-63821-000		 BALANCER, BACK DOOR LH 1 Rp1.669.500
8 01551-0812C-000 BOLT 4 Rp19.000
9 82683-60B10-000 CUSHION 4 Rp33.500
10 83770-63J01-P4Z
SUB: 83770-63J00-P4Z		 TRIM, BACK DOOR (GRAY) 1 Rp1.429.500
11 09409-08326-000
SUB: 09409-08325-000		 CLIP 2 Rp8.000
12 09409-08331-000 CLIP 6 Rp17.000
13 03141-0616A-000 SCREW 1 Rp19.500
14 71851M70F00-000
SUB: 09148M06007-000		 NUT 1 Rp4.000
15 84570-63J40-000
SUB: 84570B63J00N000		 GLASS, BACK DOOR WINDOW 1 Rp1.495.000
16 84572-74G00-000 MALE, GLASS FASTENER NO.1 2 Rp42.500
17 84513-76F00-000 MALE, GLASS FASTENER NO.2 2 Rp38.500
18 84617-76F00-000 SPACER 2 Rp45.000
19 84515-65D00-000 FEMALE, GLASS FASTENER NO.2 4 Rp45.500
20-1 DISCONTINUE
SUB: 82850-63JA0-ZBD		 HANDLE, DOOR LOCK (BLACK) 1 -
20-2 DISCONTINUE
SUB: 82850-63JA0-ZCT		 HANDLE, DOOR LOCK (BLUE) 1 -
20-3 DISCONTINUE
SUB: 82850-63JA0-ZCW		 HANDLE, DOOR LOCK (BLUE) 1 -
20-4 82850-63JA0-ZKB HANDLE, DOOR LOCK (RED) 1 -
20-5 82850-63JA0-ZXA HANDLE, DOOR LOCK (LOCAL COLOR) 1 - PAINT TO MATCH
20-6 82850-63JA0-Z2S HANDLE, DOOR LOCK (SILVER) 1 Rp823.500
21 02162-0612A-000 SCREW, HANDLE 2 Rp11.000
22 84681-63J11-000
SUB: 84681-63J10-000		 WEATHERSTRIP, DOOR OPENING 1 Rp1.028.000
23 09250M20031-000
SUB: 09250M20023-000		 CAP (OD:25.8) 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
