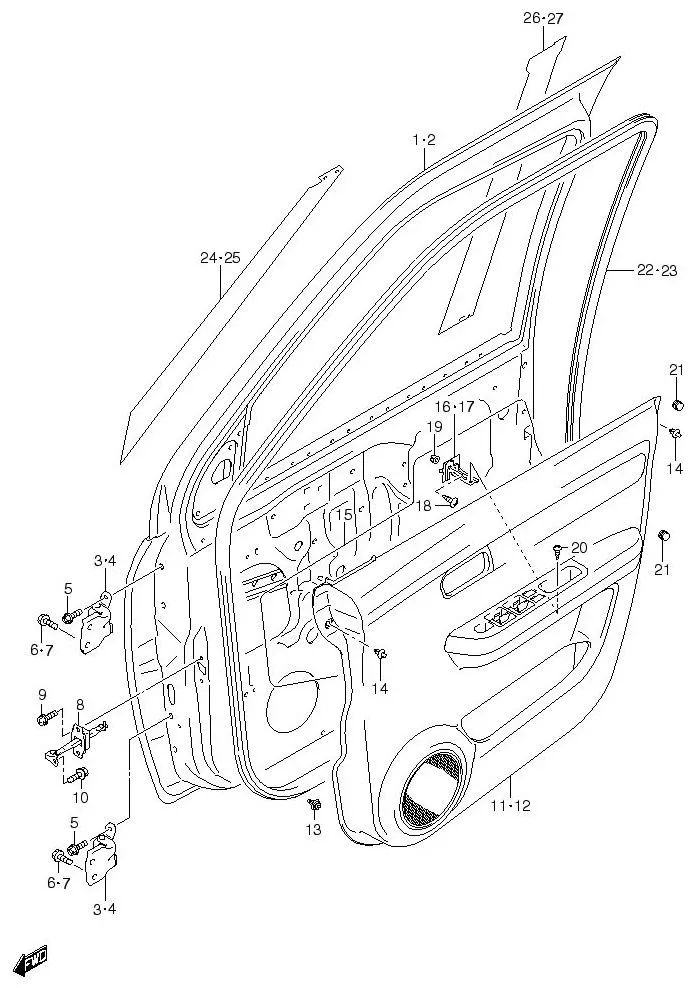

FIG.101 FRONT DOOR PANEL

FIG.101 FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001-63J01-000 PANEL ASSY, FRONT DOOR RH 1 Rp10.750.000
2 68002-63J01-000 PANEL ASSY, FRONT DOOR LH 1 Rp10.750.000
3 69310-63J00-000 HINGE, FRONT DOOR NO.1 2 Rp437.000 UPPER RH,LOWER LH
4 69320-63J00-000 HINGE, FRONT DOOR NO.2 2 Rp437.000 UPPER LH,LOWER RH
5 09103M08557-000
SUB: 09103M08389-000		 BOLT, DOOR (8X24) 8 Rp8.500
6 01551-0820A-000 BOLT, PILLAR NO.1 4 Rp17.500
7 09113-08001-000 BOLT, PILLAR NO.2 (8X20) 4 Rp18.500
8 81810-54G04-000
SUB: 81810-54G01-000		 STOP, FRONT DOOR OPEN 2 Rp447.500
9 09122-86004-000 SCREW (6X20) 4 Rp15.000
10 09112-08004-000 SCREW (8X25) 2 Rp26.000
11 DISCONTINUE
SUB: 83710-63J00-EUG		 TRIM, FRONT DOOR RH 1 -
12 DISCONTINUE
SUB: 83720-63J00-EUG		 TRIM, FRONT DOOR LH 1 -
13 09409-10327-000
SUB: 09409B10312N000		 CLIP 12 Rp5.000
14 09409-06314-P4Z CLIP (GRAY) 4 Rp22.000
15 DISCONTINUE
SUB: 83911-63J00-000		 COVER, DOOR SEALING 2 -
16 DISCONTINUE
SUB: 83751-63J00-000		 BRACKET, DOOR TRIM RH 1 -
17 DISCONTINUE
SUB: 83756-63J00-000		 BRACKET, DOOR TRIM LH 1 -
18 03241M0612A-000 SCREW 2 Rp6.500
19 71851M70F00-000
SUB: 09148M06007-000		 NUT 2 Rp4.000
20 09132-05058-000 SCREW (5X12) 2 Rp14.000
21 82711-65J00-000 STOPPER, DOOR 4 Rp34.000
22 84641-63J00-000 WEATHERSTRIP, DOOR OPNG RH 1 Rp977.000
23 84651-63J00-000 WEATHERSTRIP, DOOR OPNG LH 1 Rp977.000
24 DISCONTINUE
SUB: 83921-63J00-0CE		 TAPE, FRONT DOOR OUTER FR RH (BLACK) 1 -
25 83922-63J00-0CE TAPE, FRONT DOOR OUTER FR LH (BLACK) 1 Rp1.434.500
26 DISCONTINUE
SUB: 83923-63J00-0CE		 TAPE, FRONT DOOR OUTER RR RH (BLACK) 1 - BODY COLOR:ZCT,ZCW,ZKB,ZXA,Z2S
27 DISCONTINUE
SUB: 83924-63J00-0CE		 TAPE, FRONT DOOR OUTER RR LH (BLACK) 1 - BODY COLOR:ZCT,ZCW,ZKB,ZXA,Z2S

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
