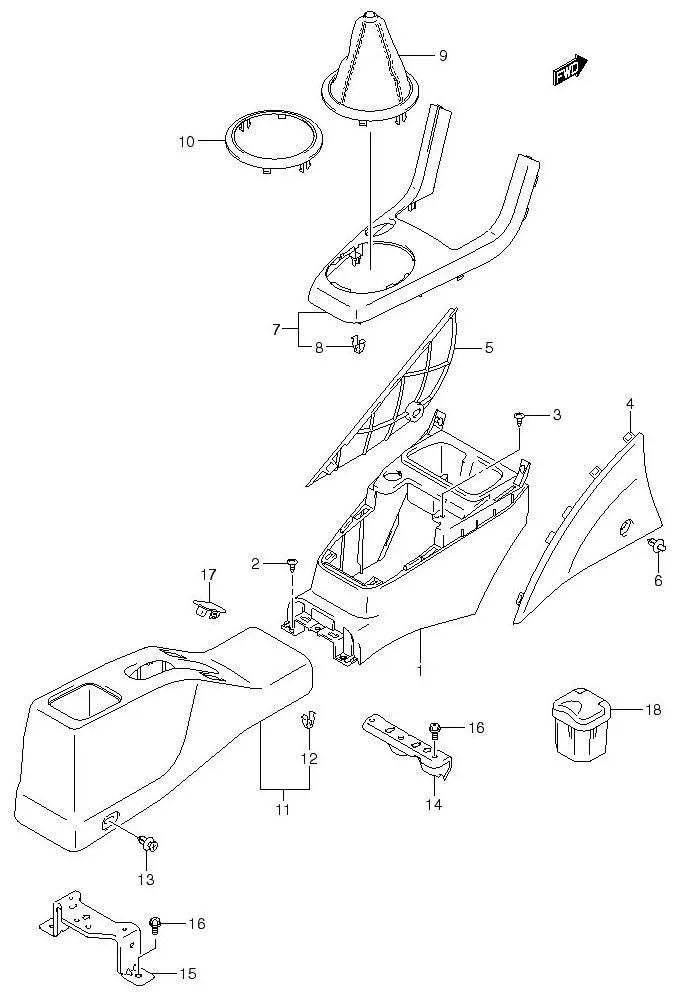

FIG.91 CONSOLE BOX

FIG.91 CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 75810-63J00-P4Z
BOX, FLOOR CONSOLE (GRAY) 1 -
2 03141-0516B-000
SUB: 03141M0512A-000
SCREW 4 Rp3.500
3 03141-0516B-000
SUB: 03141M0512A-000
SCREW 1 Rp3.500 AT
4 75831-62J00-P4Z COVER, FR SIDE RH (GRAY) 1 Rp121.000
5 75841-62J00-P4Z COVER, FR SIDE LH (GRAY) 1 Rp118.500
6 09409M07308-P4Z CLIP (GRAY) 2 Rp7.500
7 DISCONTINUE
SUB: 75861-62J00-P4Z
GARNISH, BOX FR (GRAY) 1 -
8 09409-08326-000
SUB: 09409B08326N000
CLIP 8 Rp8.000
9 75870-63J00-BWJ BOOT, SHIFT LEVER (BLACK/GRAY) 1 Rp1.122.000 MT
10 75871-62J00-ZCP ORNAMENT, SHIFT LEVER (GRAY) 1 Rp286.000 AT
11 DISCONTINUE
SUB: 75821-62J00-P4Z
BOX, FLOOR CONSOLE RR (GRAY) 1 -
12 09409-08326-000
SUB: 09409B08326N000
CLIP 2 Rp8.000
13 09409M06322-P4Z CLIP (GRAY) 2 Rp4.500
14 75881M62J00-000 BRACKET, BOX FRONT 1 Rp10.000
15 DISCONTINUE
SUB: 75882-62J00-000
BRACKET, BOX REAR 1 -
16 02162-0612A-000 SCREW 4 Rp11.000
17 37285-62J10-000 CAP, OPTION SWITCH HOLE 2 Rp41.500
18 89810-86G10-5PK
SUB: 89810B86G10N5PK
ASHTRAY, FRONT (BLACK) 1 Rp637.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
