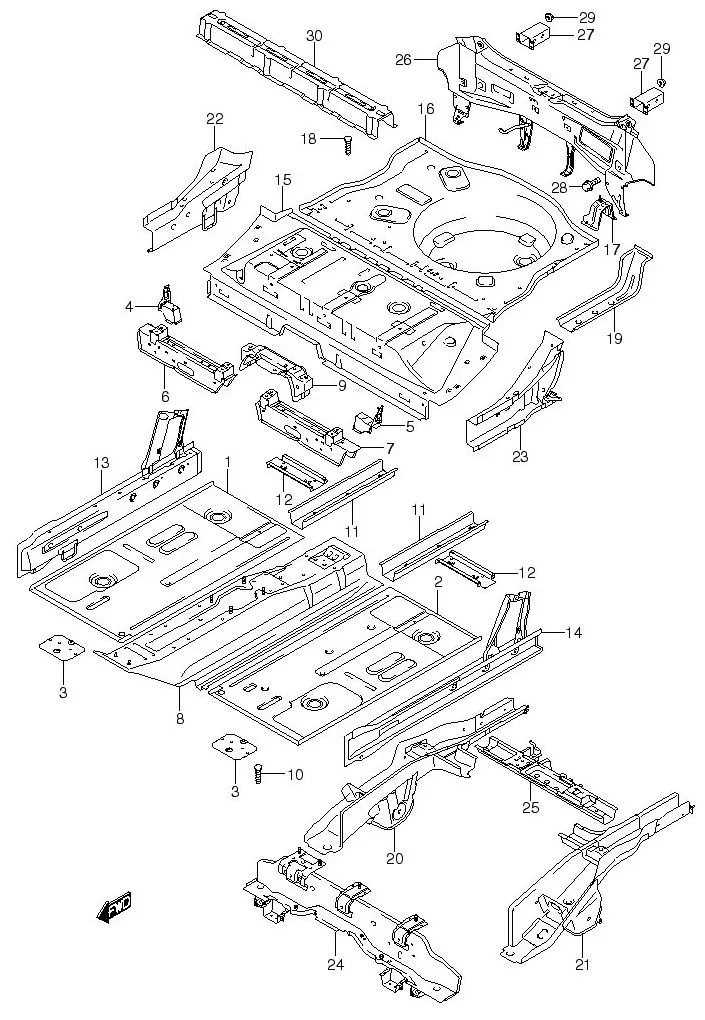

FIG.82 FLOOR PANEL

FIG.82 FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 61111-63J10-000		 PAN, MAIN FLOOR RH 1 -
2 DISCONTINUE
SUB: 61161-63J10-000		 PAN, MAIN FLOOR LH 1 -
3 DISCONTINUE
SUB: 61112-63J00-000		 REINF, MAIN FLOOR 2 -
4 DISCONTINUE
SUB: 61120-63J10-000		 BRACKET, FR SEAT RR OUT RH 1 -
5 DISCONTINUE
SUB: 61170-63J10-000		 BRACKET, FR SEAT RR OUT LH 1 -
6 DISCONTINUE
SUB: 61130-63J00-000		 CROSSMEMBER, FLR PAN UPR RH 1 -
7 DISCONTINUE
SUB: 61180-63J00-000		 CROSSMEMBER, FLR PAN UPR LH 1 -
8 DISCONTINUE
SUB: 61210-63J00-000		 TUNNEL, MAIN FLOOR 1 -
9 DISCONTINUE
SUB: 61230-63J00-000		 BRACKET, FR SEAT RR INSIDE 1 -
10 09119-05018-000 BOLT, STUD 7 Rp13.000
11 DISCONTINUE
SUB: 61241-63J00-000		 MEMBER, FLOOR SIDE REAR 2 -
12 DISCONTINUE
SUB: 61242-63J00-000		 CROSSMEMBER, FLR PAN LWR 2 -
13 DISCONTINUE
SUB: 61310-63J00-000		 PANEL, SIDE SILL INNER RH 1 -
14 DISCONTINUE
SUB: 61320-63J00-000		 PANEL, SIDE SILL INNER LH 1 -
15 DISCONTINUE
SUB: 61511-73K00-000		 PANEL, RR FLOOR FR 1 -
16 61512-73K00-000 PANEL, RR FLOOR RR 1 Rp3.584.500
17 DISCONTINUE
SUB: 61513-63J00-000		 BRACKET, SPARE TIRE 1 -
18 09119-05018-000 BOLT, STUD 4 Rp13.000
19 DISCONTINUE
SUB: 61550-63J00-000		 HOOK, TOWING REAR 1 -
20 DISCONTINUE
SUB: 62100-73K00-000		 MEMBER, RR FLOOR SIDE RH 1 -
21 DISCONTINUE
SUB: 62300-73K00-000		 MEMBER, RR FLOOR SIDE LH 1 -
22 DISCONTINUE
SUB: 62210-63J10-000		 COMPARTMENT, RR FLR SIDE RH 1 -
23 DISCONTINUE
SUB: 62410-63J10-000		 COMPARTMENT, RR FLR SIDE LH 1 -
24 DISCONTINUE
SUB: 62600-73K00-000		 CROSSMEMBER, RR FLOOR FR 1 -
25 DISCONTINUE
SUB: 62700-73K00-000		 CROSSMEMBER, RR FLOOR CTR 1 -
26 DISCONTINUE
SUB: 65500-73K00-000		 PANEL, BACK 1 -
27 DISCONTINUE
SUB: 65561-63J00-000		 ABSORBER, REAR BUMPER 2 -
28 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
29 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
30 DISCONTINUE
SUB: 61514-62J00-000		 MEMBER, RR SEAT SUPPORT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
