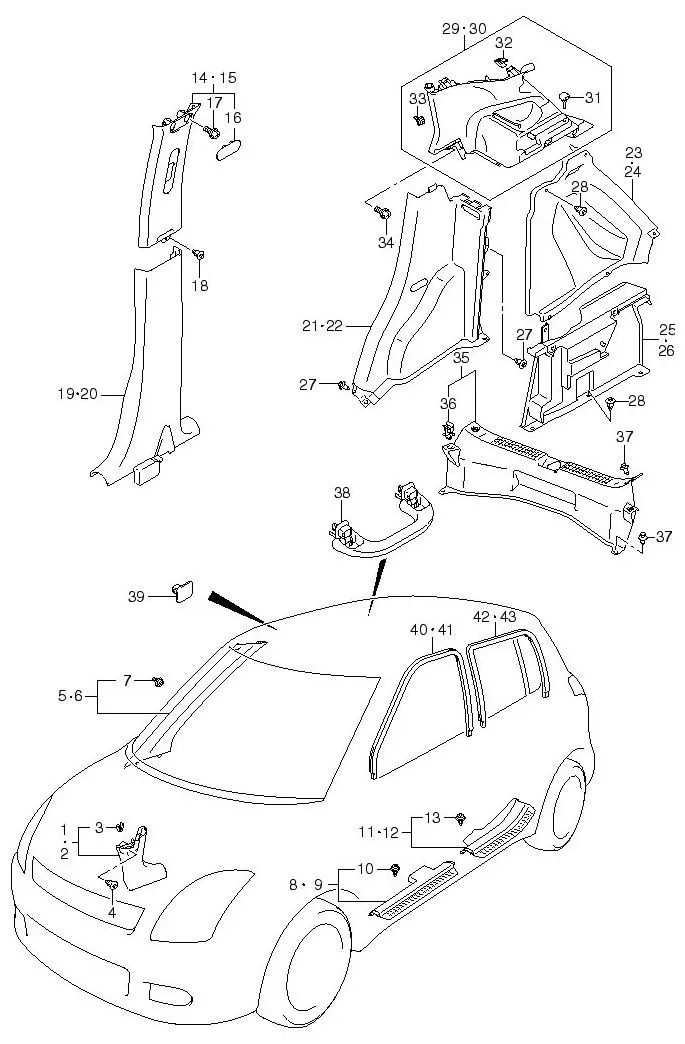

FIG.93 INTERIOR TRIM

FIG.93 INTERIOR TRIM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 76130-63J00-P4Z		 TRIM, DASH SIDE RH (GRAY) 1 -
2 DISCONTINUE
SUB: 76140-63J00-P4Z		 TRIM, DASH SIDE LH (GRAY) 1 -
3 09409-10308-000
SUB: 09409B10308N000		 CLIP 2 Rp6.500
4 09409M07308-P4Z CLIP (GRAY) 2 Rp7.500
5 76111-63J00-6GS TRIM, FR PILLAR INNER RH (GRAY) 1 Rp439.500
6 76121-63J00-6GS TRIM, FR PILLAR INNER LH (GRAY) 1 Rp439.500
7 09409-10314-000 CLIP 4 Rp17.000
8 76151-63J00-P4Z SCUFF, SIDE SILL FR RH (GRAY) 1 Rp259.000
9 76161-63J00-P4Z SCUFF, SIDE SILL FR LH (GRAY) 1 Rp259.000
10 09409-10327-000
SUB: 09409B10312N000		 CLIP 2 Rp5.000
11 76152-63J00-P4Z SCUFF, SIDE SILL RR RH (GRAY) 1 Rp324.500
12 76162-63J00-P4Z SCUFF, SIDE SILL RR LH (GRAY) 1 Rp244.000
13 09409-10327-000
SUB: 09409B10312N000		 CLIP 2 Rp5.000
14 DISCONTINUE
SUB: 76210-63J00-6GS		 TRIM, CTR PILLAR UPPER RH (GRAY) 1 -
15 DISCONTINUE
SUB: 76220-63J00-6GS		 TRIM, CTR PILLAR UPPER LH (GRAY) 1 -
16 76213-63J00-6GS CAP, CTR PILLAR TRIM (GRAY) 2 Rp74.500
17 02162-0616A-000
SUB: 02162-0616C-000		 SCREW 4 Rp3.000
18 09409M07L02-5PK
SUB: 09409M07308-5PK		 CLIP (BLACK) 2 Rp7.500
19 DISCONTINUE
SUB: 76231-63J00-P4Z		 TRIM, CTR PILLAR LOWER RH (GRAY) 1 -
20 76241-63J10-P4Z
SUB: 76241-63J00-P4Z		 TRIM, CTR PILLAR LOWER LH (GRAY) 1 Rp701.000
21 DISCONTINUE
SUB: 76170-73K00-P4Z		 TRIM, QTR INNER LOWER FR RH (GRAY) 1 -
22 DISCONTINUE
SUB: 76180-73K00-P4Z		 TRIM, QTR INNER LOWER FR LH (GRAY) 1 -
23 76191-73K00-P9S TRIM, QTR INNER RR UPPER RH (GRAY) 1 Rp883.000
24 76192-73K00-P9S TRIM, QTR INNER RR UPPER LH (GRAY) 1 Rp799.000
25 76195-73K00-P4Z TRIM, QTR INNER RR LOWER RH (GRAY) 1 Rp915.500
26 76196-73K00-P4Z TRIM, QTR INNER RR LOWER LH (GRAY) 1 Rp915.500
27 09409M07308-P4Z CLIP, FRONT (GRAY) 4 Rp7.500
28 09409M07308-P4Z CLIP, REAR (GRAY) 14 Rp7.500
29 DISCONTINUE
SUB: 76250-63J00-6GS		 TRIM, QTR INNER UPPER RH (GRAY) 1 -
30 DISCONTINUE
SUB: 76260-63J00-6GS		 TRIM, QTR INNER UPPER LH (GRAY) 1 -
31 73461M54G00-000 CUSHION, PARCEL SHELF 2 Rp5.500
32 09409-07335-000 CLIP 4 Rp17.500
33 09409-10327-000
SUB: 09409B10312N000		 CLIP 6 Rp5.000
34 02162-0612A-000 SCREW 4 Rp11.000
35 76271-73K00-P4Z TRIM, TAIL END (GRAY) 1 Rp905.000
36 DISCONTINUE
SUB: 76215-74G00-000		 HOLDER, LUGGAGE FLOOR COVER 1 -
37 09409M07308-P4Z CLIP (GRAY) 4 Rp7.500
38 76410-55G02-6GS GRIP, ASSISTANT (GRAY) 3 Rp255.500
39 76412-55G00-6GS CAP, ROOF LINING (GRAY) 2 Rp31.000
40 76291-63J01-000 TRIM, FR DOOR OPENING RH 1 Rp716.500
41 76292-63J01-000 TRIM, FR DOOR OPENING LH 1 Rp751.500
42 76295-63J01-000 TRIM, RR DOOR OPENING RH 1 Rp742.000
43 DISCONTINUE
SUB: 76296-63J00-000		 TRIM, RR DOOR OPENING LH 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
