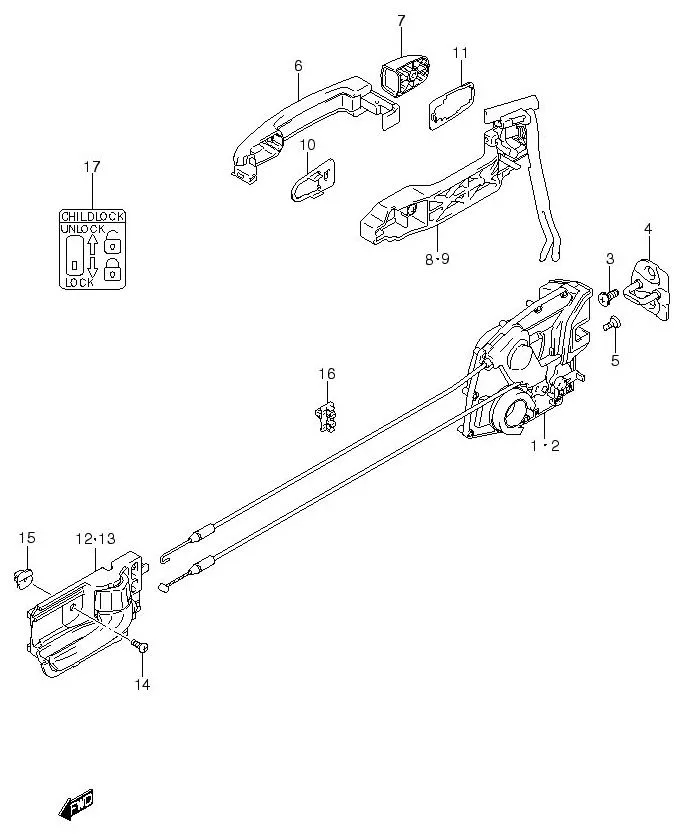

FIG.106 REAR DOOR LOCK

FIG.106 REAR DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82301-63J16-000
SUB: 82301-63J11-000		 LATCH ASSY, REAR DOOR RH 1 Rp1.759.000
1-Jul 82833-63J00-ZBD CAP, DOOR OUT (BLACK) 2 -
1-Jun 82812-63J00-ZBD HANDLE, DOOR OUT (BLACK) 2 -
2 82302-63J16-000
SUB: 82302-63J11-000		 LATCH ASSY, REAR DOOR LH 1 Rp1.747.500
2-Jul 82833-63J00-ZCT CAP, DOOR OUT (BLUE) 2 -
2-Jun 82812-63J00-ZCT HANDLE, DOOR OUT (BLUE) 2 -
3-Jul DISCONTINUE
SUB: 82833-63J00-ZCW		 CAP, DOOR OUT (BLUE) 2 -
3 09137-06028-000 SCREW (6X18) 6 Rp18.500
3-Jun 82812-63J00-ZCW HANDLE, DOOR OUT (BLUE) 2 Rp539.000
4-Jun 82812-63J00-ZKB HANDLE, DOOR OUT (RED) 2 -
4 82610-63J00-000 STRIKER, DOOR LATCH 2 Rp174.500
4-Jul 82833-63J00-ZKB CAP, DOOR OUT (RED) 2 -
5-Jun 82812-63J00-ZXA HANDLE, DOOR OUT (LOCAL COLOR) 2 - PAINT TO MATCH
5 DISCONTINUE
SUB: 09137M08004-000		 SCREW (8X18) 4 -
5-Jul 82833-63J00-ZXA CAP, DOOR OUT (LOCAL COLOR) 2 - PAINT TO MATCH
6-Jun 82812-63J00-Z2S HANDLE, DOOR OUT (SILVER) 2 Rp476.000
6-Jul 82833-63J00-Z2S CAP, DOOR OUT (SILVER) 2 Rp203.500
8 82831-63J00-000 FRAME, DOOR OUT RH 1 Rp489.500
9 82841-63J00-000 FRAME, DOOR OUT LH 1 Rp512.500
10 82834-63J00-000 PAD, DOOR OUT 2 Rp65.000
11 82815-63J00-000 CUSHION, SIDE DOOR OUT 2 Rp48.500
12 83110-63J01-P4Z
SUB: 83110-63J00-P4Z		 HANDLE, DOOR INSIDE RH (GRAY) 1 Rp315.500
13 83130-63J01-P4Z
SUB: 83130-63J00-P4Z		 HANDLE, DOOR INSIDE LH (GRAY) 1 Rp315.500
14 09132-05058-000 SCREW (5X12) 2 Rp14.000
15 09148-05018-000 NUT, DOOR INSIDE HANDLE 2 Rp11.500
16 83271M50E00-000 CLIP 2 Rp6.500
17 86951-54G00-000
SUB: 86951B54G00N000		 PLATE, CHILD PROOF CAUTION 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
