SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

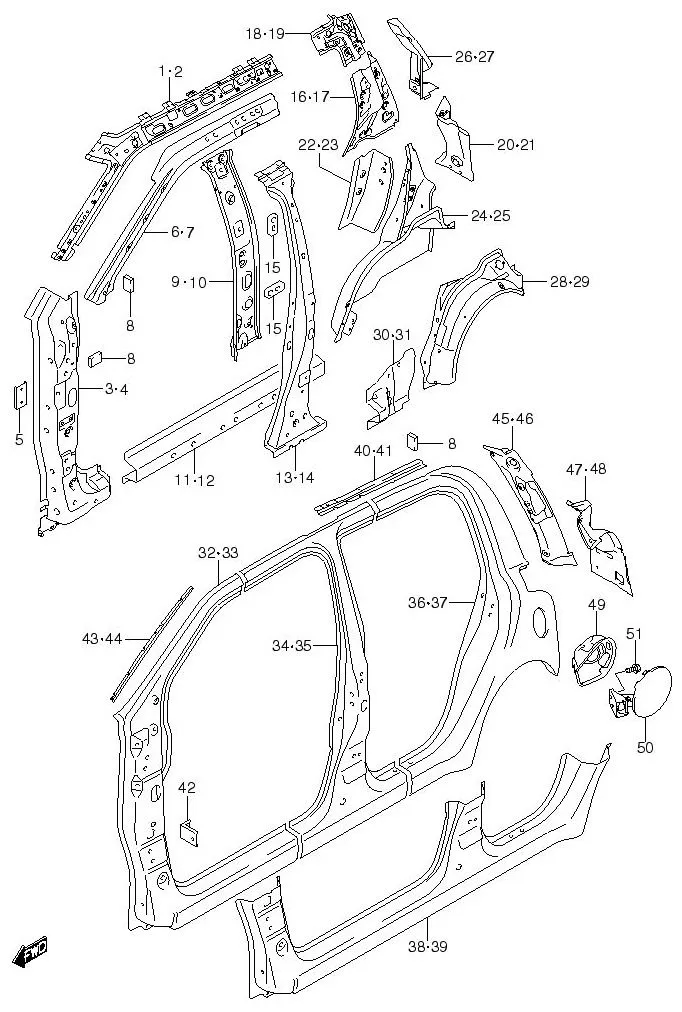

FIG.83 SIDE BODY PANEL

FIG.83 SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 63120-63J00-000		 RAIL, ROOF SIDE INNER RH 1 -
2 DISCONTINUE
SUB: 63520-63J00-000		 RAIL, ROOF SIDE INNER LH 1 -
3 DISCONTINUE
SUB: 63140-63J10-000		 REINF, FR DOOR HINGE RH 1 -
4 DISCONTINUE
SUB: 63540-63J10-000		 REINF, FR DOOR HINGE LH 1 -
5 DISCONTINUE
SUB: 63145-58J00-000		 RETAINER, DOOR HINGE 4 -
6 DISCONTINUE
SUB: 63150-63J00-000		 REINF, FR PILLAR UPPER RH 1 -
7 DISCONTINUE
SUB: 63550-63J00-000		 REINF, FR PILLAR UPPER LH 1 -
8 DISCONTINUE
SUB: 75242-8230V-000		 PAD 6 -
9 DISCONTINUE
SUB: 63211-63J00-000		 PANEL, CTR PILLAR INNER RH 1 -
10 DISCONTINUE
SUB: 63611-63J00-000		 PANEL, CTR PILLAR INNER LH 1 -
11 DISCONTINUE
SUB: 63220-63J00-000		 STRENGTH, SIDE SILL RH 1 -
12 DISCONTINUE
SUB: 63620-63J00-000		 STRENGTH, SIDE SILL LH 1 -
13 DISCONTINUE
SUB: 63240-63J12-000		 REINF, RR DOOR HINGE RH 1 -
14 DISCONTINUE
SUB: 63640-63J11-000		 REINF, RR DOOR HINGE LH 1 -
15 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, RR DOOR HINGE 4 Rp9.500
16 DISCONTINUE
SUB: 63311-63J10-000		 PANEL, QTR INNER RH 1 -
17 DISCONTINUE
SUB: 63711-63J00-000		 PANEL, QTR INNER LH 1 -
18 DISCONTINUE
SUB: 63312-63J10-000		 EXTENSION, QTR INNER RH 1 -
19 DISCONTINUE
SUB: 63712-63J00-000		 EXTENSION, QTR INNER LH 1 -
20 DISCONTINUE
SUB: 63313-63J10-000		 PANEL, RR LAMP HOUSE INR RH 1 -
21 DISCONTINUE
SUB: 63713-63J10-000		 PANEL, RR LAMP HOUSE INR LH 1 -
22 DISCONTINUE
SUB: 63320-63J00-000		 REINF, RR DOOR STRIKER RH 1 -
23 DISCONTINUE
SUB: 63720-63J00-000		 REINF, RR DOOR STRIKER LH 1 -
24 DISCONTINUE
SUB: 63410-73K00-000		 PANEL, WHEEL HOUSE INR RH 1 -
25 DISCONTINUE
SUB: 63810-73K10-000		 PANEL, WHEEL HOUSE INR LH 1 -
26 DISCONTINUE
SUB: 63440-63J10-000		 BRACKET, SEAT BELT RETR RH 1 -
27 DISCONTINUE
SUB: 63840-63J10-000		 BRACKET, SEAT BELT RETR LH 1 -
28 DISCONTINUE
SUB: 63481-63J00-000		 PANEL, WHEEL HOUSE OTR RH 1 -
29 DISCONTINUE
SUB: 63881-63J00-000		 PANEL, WHEEL HOUSE OTR LH 1 -
30 DISCONTINUE
SUB: 63482-63J00-000		 EXTENSION, WHL HOUSE LWR RH 1 -
31 DISCONTINUE
SUB: 63882-63J00-000		 EXTENSION, WHL HOUSE LWR LH 1 -
32 DISCONTINUE
SUB: 64111-63J20-P11		 PANEL, A-PILLAR RH 1 -
33 DISCONTINUE
SUB: 64511-63J20-P11		 PANEL, A-PILLAR LH 1 -
34 DISCONTINUE
SUB: 64111-63J20-P21		 PANEL, B-PILLAR RH 1 -
35 DISCONTINUE
SUB: 64511-63J20-P21		 PANEL, B-PILLAR LH 1 -
36 64111-63J20-P31 PANEL, QUARTER RH 1 Rp4.485.000
37 DISCONTINUE
SUB: 64511-63J20-P31		 PANEL, QUARTER LH 1 -
38 DISCONTINUE
SUB: 64111-63J20-P41		 PANEL, SIDE SILL RH 1 -
39 DISCONTINUE
SUB: 64511-63J20-P41		 PANEL, SIDE SILL LH 1 -
40 DISCONTINUE
SUB: 64112-63J00-000		 EXTENSION, SIDE BODY UPR RH 1 -
41 DISCONTINUE
SUB: 64512-63J00-000		 EXTENSION, SIDE BODY UPR LH 1 -
42 64113M63J00-000 BRACKET, FR FENDER 2 Rp7.500
43 DISCONTINUE
SUB: 64114-63J00-000		 BRACKET, RAIL SIDE RH 1 -
44 DISCONTINUE
SUB: 64514-63J00-000		 BRACKET, RAIL SIDE LH 1 -
45 DISCONTINUE
SUB: 64120-63J00-000		 EXTENSION, SIDE BODY OTR RH 1 -
46 DISCONTINUE
SUB: 64520-63J00-000		 EXTENSION, SIDE BODY OTR LH 1 -
47 DISCONTINUE
SUB: 64130-63J11-000		 PANEL, RR LAMP HOUSE OTR RH 1 -
48 DISCONTINUE
SUB: 64530-63J11-000		 PANEL, RR LAMP HOUSE OTR LH 1 -
49 DISCONTINUE
SUB: 64571-63J00-000		 BOX, FUEL FILLER 1 -
50 64850-63J11-000
SUB: 64850-63J10-000		 DOOR, FUEL FILLER 1 Rp628.500
51 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
