SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

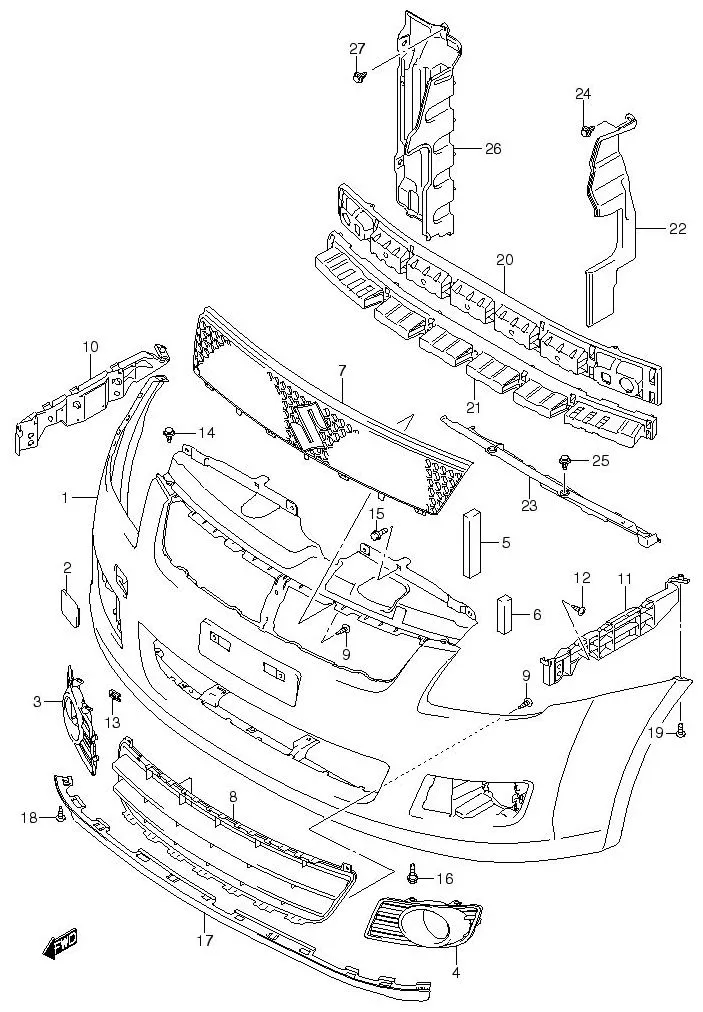

FIG.85 FRONT BUMPER

FIG.85 FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711-73K10-799
SUB: 71711B73K00N799		 BUMPER, FRONT (PRIMARY COAT) 1 Rp2.196.000 PAINT TO MATCH
2 71712-63J00-799 CAP, FR BUMPER (PRIMARY COAT) 1 Rp168.500 PAINT TO MATCH
3 71751-73K00-5PK BEZEL, FR FOG LAMP RH (BLACK) 1 Rp171.500
4 71761-73K00-5PK BEZEL, FR FOG LAMP LH (BLACK) 1 Rp170.000
5 DISCONTINUE
SUB: 71781-73K00-000		 PAD, FR BUMPER UPPER 1 -
6 DISCONTINUE
SUB: 71782-73K00-000		 PAD, FR BUMPER LOWER 1 -
7 71741-73K00-5PK GRILLE, RADIATOR (BLACK) 1 Rp698.500
8 71721-73K00-5PK GRILLE, RADIATOR LOWER (BLACK) 1 Rp554.000
9 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 7 Rp3.500
10 71731-63J20-000
SUB: 71731-63J10-000		 HOLDER, FR BUMPER SIDE RH 1 Rp277.500
11 71732-63J20-000
SUB: 71732-63J10-000		 HOLDER, FR BUMPER SIDE LH 1 Rp277.500
12 03511-0512A-000 SCREW 4 Rp14.000
13 09148-06021-000 NUT 2 Rp27.500
14 09409-08327-000 CLIP 2 Rp15.000
15 02162-0616A-000 BOLT, UPPER 4 Rp3.000
16 02162-0616A-000 BOLT, LOWER 3 Rp3.000
17 71770-63J00-000 SKIRT, FR AIR DAM 1 Rp558.000
18 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 6 Rp3.500
19 09136-05068-000
SUB: 09136-05057-000		 SCREW, SIDE (5X20) 2 Rp15.000
20 72394-63J00-000 ABSORBER, FR BUMPER UPPER 1 Rp3.233.500
21 72395-63J00-000 ABSORBER, FR BUMPER LOWER 1 Rp1.904.000
22 72397-63J10-000 COVER, FR END SIDE LH 1 Rp242.500
23 72398-63J10-000 COVER, FR END LOWER 1 Rp282.500
24 09409-08327-000 CLIP 3 Rp15.000
25 09409-08327-000 CLIP 6 Rp15.000
26 72393-73K00-000
SUB: 72393-63J10-000		 COVER, ENGINE FR 1 Rp1.084.000
27 09409-08327-000 CLIP 4 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
