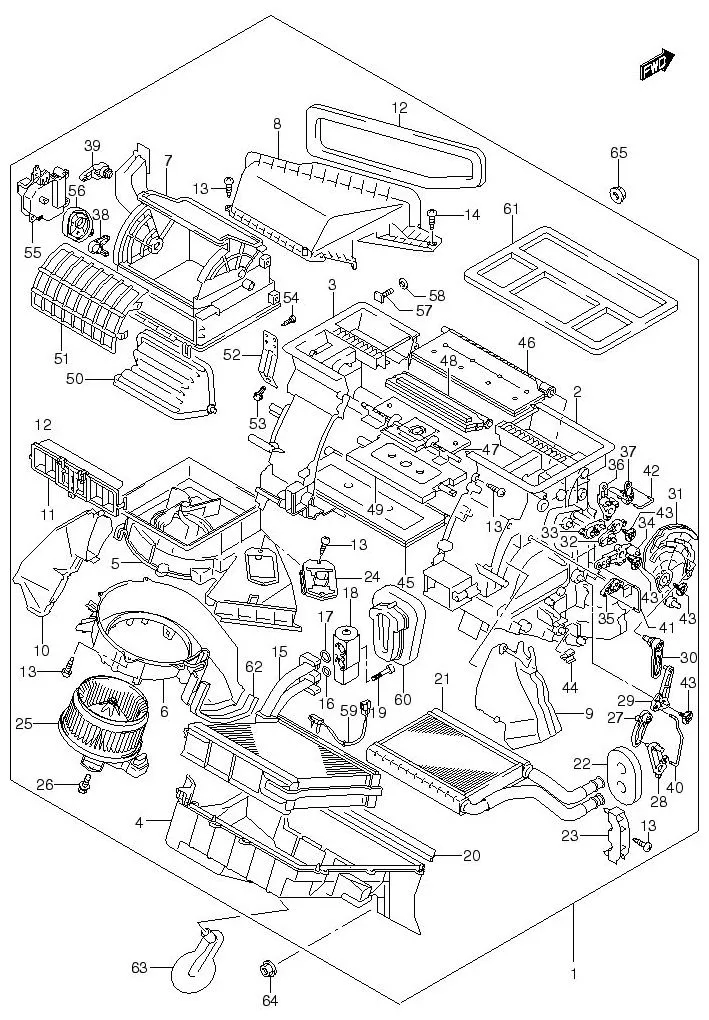

FIG.89 HEATER

FIG.89 HEATER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 74100-63J40-000		 HEATER UNIT 1 -
2 DISCONTINUE
SUB: 74111-63J00-000		 CASE, HEATER RH 1 -
3 DISCONTINUE
SUB: 74112-63J00-000		 CASE, HEATER LH 1 -
4 74113-63J00-000 CASE, LOWER 1 Rp625.500
5 74212-63J00-000 CASE, BLOWER UPPER 1 Rp868.000
6 DISCONTINUE
SUB: 74211-63J00-000		 CASE, BLOWER LOWER 1 -
7 74213-63J00-000 CASE, BLOWER 1 Rp848.000
8 DISCONTINUE
SUB: 74214-63J00-000		 CASE, BLOWER AIR INTAKE 1 -
9 74114-63J00-000
SUB: 74114B63J00N000		 DUCT, DRIVER SIDE 1 Rp43.500
10 74115-63J00-000
SUB: 74115B63J00N000		 DUCT, ASSISTANT SIDE 1 Rp61.000
11 95861-63J01-000 HOLDER, FILTER 1 Rp155.500
12 74119-63J00-000
SUB: 74119B63J00N000		 PACKING, AIR INTAKE 1 Rp19.500
13 03112-0416A-000
SUB: 03111-0416A-000		 SCREW 28 Rp23.500
14 03112-0416A-000
SUB: 03111-0416A-000		 SCREW 1 Rp23.500
15 95411-63J00-000
SUB: 95411B63J00N000		 EVAPORATOR 1 Rp1.049.000
16 95895-50G00-000
SUB: 95895B50G00N000		 O RING (D:2.4,ID:10.8) 1 Rp12.500
17 95896-50G00-000
SUB: 95896B50G00N000		 O RING (D:2.4,ID:13.4) 1 Rp19.000
18 95431-63J00-000
SUB: 95431B63J00N000		 VALVE, EXPANSION 1 Rp357.500
19 74134-58J00-000
SUB: 74134B58J00N000		 BOLT, EXPANSION 2 Rp14.000
20 95461-58J00-000
SUB: 95461B58J00N000		 PACKING, EVAPORATOR LOWER 1 Rp23.000
21 74120-63J00-000 CORE, HEATER 1 Rp4.332.000
22 74118-63J01-000 PACKING 1 Rp74.000
23 74131-63J00-000 BRACKET, HEATER PIPE 1 Rp112.000
24 74140-58J00-000
SUB: 74140B58J00N000		 RESISTOR 1 Rp110.000
25 74150-63J00-000
SUB: 74150B63J00N000		 MOTOR, BLOWER 1 Rp455.500
26 74135-82000-000
SUB: 74135B82000N000		 SCREW, MOTOR 3 Rp19.500
27 DISCONTINUE
SUB: 74181-63J00-000		 LEVER, AIR MIXTURE HOT 1 -
28 DISCONTINUE
SUB: 74182-63J00-000		 LEVER, AIR MIXTURE HOT 1 -
29 DISCONTINUE
SUB: 74183-63J00-000		 LEVER, AIR MIXTURE COOL MIDDLE 1 -
30 DISCONTINUE
SUB: 74184-63J00-000		 LEVER, AIR MIXTURE COOL DOOR 1 -
31 DISCONTINUE
SUB: 74187-63J00-000		 LEVER, MODE 1 -
32 DISCONTINUE
SUB: 74191-63J00-000		 LEVER, FACE MIDDLE 1 -
33 DISCONTINUE
SUB: 74192-63J00-000		 LEVER, FACE DOOR 1 -
34 DISCONTINUE
SUB: 74193-63J00-000		 LEVER, FOOT MIDDLE 1 -
35 DISCONTINUE
SUB: 74194-63J00-000		 LEVER, FOOT DOOR 1 -
36 DISCONTINUE
SUB: 74195-63J00-000		 LEVER, DEFROSTER MIDDLE 1 -
37 DISCONTINUE
SUB: 74196-63J00-000		 LEVER, DEFROSTER DOOR 1 -
38 74282-63J00-000 LEVER, FRESH AIR MIDDLE 1 Rp113.500
39 74281-63J00-000 LEVER, FRESH AIR DOOR 1 Rp113.500
40 DISCONTINUE
SUB: 74185-63J00-000		 ROD, AIR MIXTURE 1 -
41 DISCONTINUE
SUB: 74197-63J00-000		 ROD, FOOT 1 -
42 DISCONTINUE
SUB: 74198-63J00-000		 ROD, DEFROSTER 1 -
43 74183-82005-000
SUB: 74183B82005N000		 SCREW, LINK 6 Rp19.000
44 DISCONTINUE
SUB: 74151-50F00-000		 CLAMP, CABLE 2 -
45 DISCONTINUE
SUB: 74171-63J00-000		 DOOR, AIR MIXTURE HOT 1 -
46 DISCONTINUE
SUB: 74175-63J00-000		 DOOR, AIR MIXTURE COOL 1 -
47 DISCONTINUE
SUB: 74172-63J00-000		 DOOR, FACE 1 -
48 DISCONTINUE
SUB: 74173-63J00-000		 DOOR, DEFROSTER 1 -
49 DISCONTINUE
SUB: 74174-63J00-000		 DOOR, FOOT 1 -
50 74173-72J00-000 DOOR, FRESH AIR 1 Rp356.000
51 DISCONTINUE
SUB: 74215-63J00-000		 PLATE 1 -
52 DISCONTINUE
SUB: 95675-63J00-000		 BRACKET 1 -
53 01560-0620A-000
SUB: 01560B0620AN000		 BOLT 2 Rp2.500
54 DISCONTINUE
SUB: 03111-0412A-000		 SCREW 2 -
55 DISCONTINUE
SUB: 95652-63J00-000		 ACTUATOR, FRESH AIR 1 -
56 DISCONTINUE
SUB: 74283-63J00-000		 PLATE, FRESH AIR 1 -
57 74115-65D00-000
SUB: 74115B65D00N000		 BOLT 5 Rp106.500
58 DISCONTINUE
SUB: 74119-78F00-000		 WASHER, RUBBER 5 -
59 95541-63J01-000
SUB: 95541B63J01N000		 THERMISTOR 1 Rp88.000
60 95465-58J00-000 COVER 1 Rp119.000
61 74116-63J00-000
SUB: 74116B63J00N000		 PACKING, FACE 1 Rp16.000
62 DISCONTINUE
SUB: 74117B63J00N000		 PACKING 1 -
63 DISCONTINUE
SUB: 95481-63J00-000		 HOSE, DRAIN 1 -
64 09159-06081-000 NUT 1 Rp17.000
65 08361M2506A-000 NUT 5 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
