SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

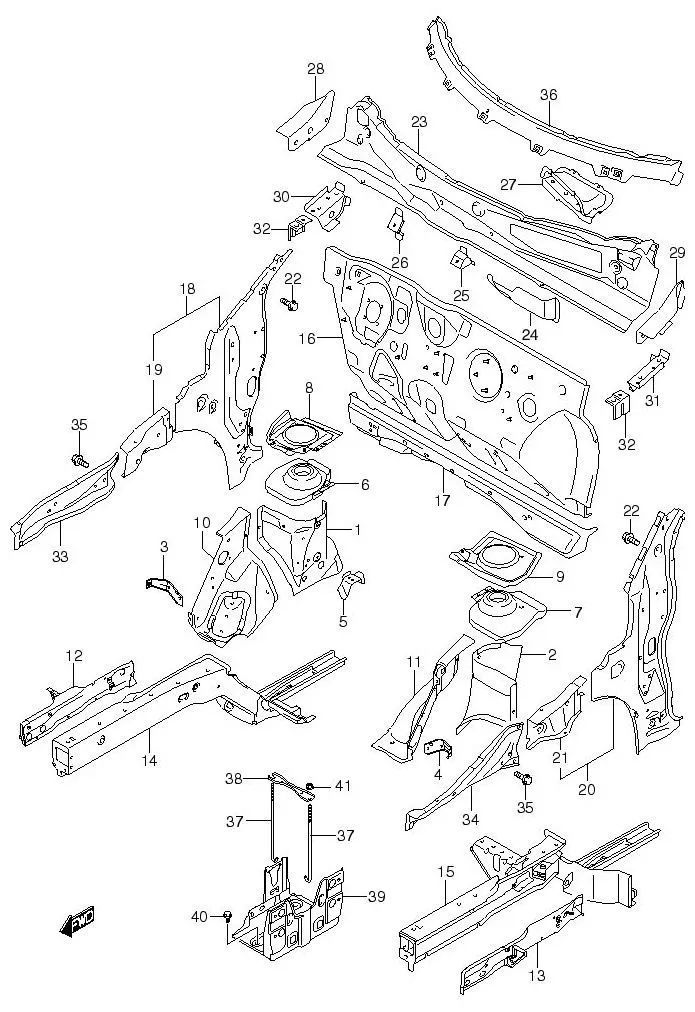

FIG.81 FRONT BODY PANEL

FIG.81 FRONT BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 58311-62J10-000		 PANEL, FENDER APRON RH 1 -
2 DISCONTINUE
SUB: 58411-63J00-000		 PANEL, FENDER APRON LH 1 -
3 DISCONTINUE
SUB: 58312-63J00-000		 BRACKET, FR FENDER LWR RH 1 -
4 DISCONTINUE
SUB: 58412-63J00-000		 BRACKET, FR FENDER LWR LH 1 -
5 DISCONTINUE
SUB: 58313-63J00-000		 BRACKET, ABS 1 -
6 DISCONTINUE
SUB: 58320-63J00-000		 BRACKET, SUSPENSION UPR RH 1 -
7 DISCONTINUE
SUB: 58420-63J00-000		 BRACKET, SUSPENSION UPR LH 1 -
8 58322-63J00-000 EXTENSION, COWL UPPER RH 1 Rp515.500
9 DISCONTINUE
SUB: 58422-62J00-000		 EXTENSION, COWL UPPER LH 1 -
10 58330-63J00-000 EXTENSION, FENDER APRON RH 1 Rp1.549.000
11 DISCONTINUE
SUB: 58431-63J00-000		 EXTENSION, FENDER APRON LH 1 -
12 DISCONTINUE
SUB: 58340-63J10-000		 PANEL, APRON SIDE MBR OTR RH 1 -
13 DISCONTINUE
SUB: 58440-63J10-000		 PANEL, APRON SIDE MBR OTR LH 1 -
14 DISCONTINUE
SUB: 58600-63J10-000		 MEMBER, APRON SIDE RH 1 -
15 DISCONTINUE
SUB: 58700-73K00-000		 MEMBER, APRON SIDE LH 1 -
16-1 DISCONTINUE
SUB: 59100-73K00-000		 PANEL, DASH 1 - MT
16-2 DISCONTINUE
SUB: 59100-73K10-000		 PANEL, DASH 1 - AT
17 DISCONTINUE
SUB: 59221-63J10-000		 CROSSMEMBER, DASH UPPER 1 -
18 59230-63J10-000 PANEL, DASH SIDE RH 1 Rp3.690.000
19 DISCONTINUE
SUB: 59232-63J00-000		 PANEL, DASH SIDE FR RH 1 -
20 DISCONTINUE
SUB: 59280-63J10-000		 PANEL, DASH SIDE LH 1 -
21 DISCONTINUE
SUB: 59282-63J00-000		 PANEL, DASH SIDE FR LH 1 -
22 01551-0820A-000 BOLT 4 Rp17.500
23 DISCONTINUE
SUB: 59311-63J00-000		 PANEL, COWL UPPER 1 -
24 DISCONTINUE
SUB: 59312-63J00-000		 SEALING, COWL VENTILATOR 1 -
25 DISCONTINUE
SUB: 59313-63J00-000		 BRACKET, WIPER LINK CTR 1 -
26 DISCONTINUE
SUB: 59314-63J00-000		 BRACKET, WIPER LINK SIDE 1 -
27 DISCONTINUE
SUB: 59320-63J00-000		 HANGER, PEDAL BRACKET 1 -
28 DISCONTINUE
SUB: 59331-63J00-000		 PANEL, COWL SIDE RH 1 -
29 DISCONTINUE
SUB: 59381-63J00-000		 PANEL, COWL SIDE LH 1 -
30 DISCONTINUE
SUB: 59332-63J00-000		 BRACKET, FR HOOD HINGE RH 1 -
31 DISCONTINUE
SUB: 59382-63J00-000		 BRACKET, FR HOOD HINGE LH 1 -
32 DISCONTINUE
SUB: 59333-63J00-000		 BRACKET, FRONT FENDER RR 2 -
33 59410-63J00-000 MEMBER, COWL SIDE OUTER RH 1 Rp573.000
34 DISCONTINUE
SUB: 59460-63J00-000		 MEMBER, COWL SIDE OUTER LH 1 -
35 01551-0820A-000 BOLT 4 Rp17.500
36 DISCONTINUE
SUB: 59710-63J00-000		 PANEL, COWL TOP 1 -
37 63461-80000-000 BOLT, BATTERY 2 Rp51.500
38 72511-78000-000
SUB: 72511B78000N000		 BAND, BATTERY 1 Rp9.000
39 DISCONTINUE
SUB: 72520-63J02-000		 TRAY, BATTERY 1 -
40 02162-0612A-000 SCREW 3 Rp11.000
41 08316-1005A-000
SUB: 08316B1005AN000		 NUT 2 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
