SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

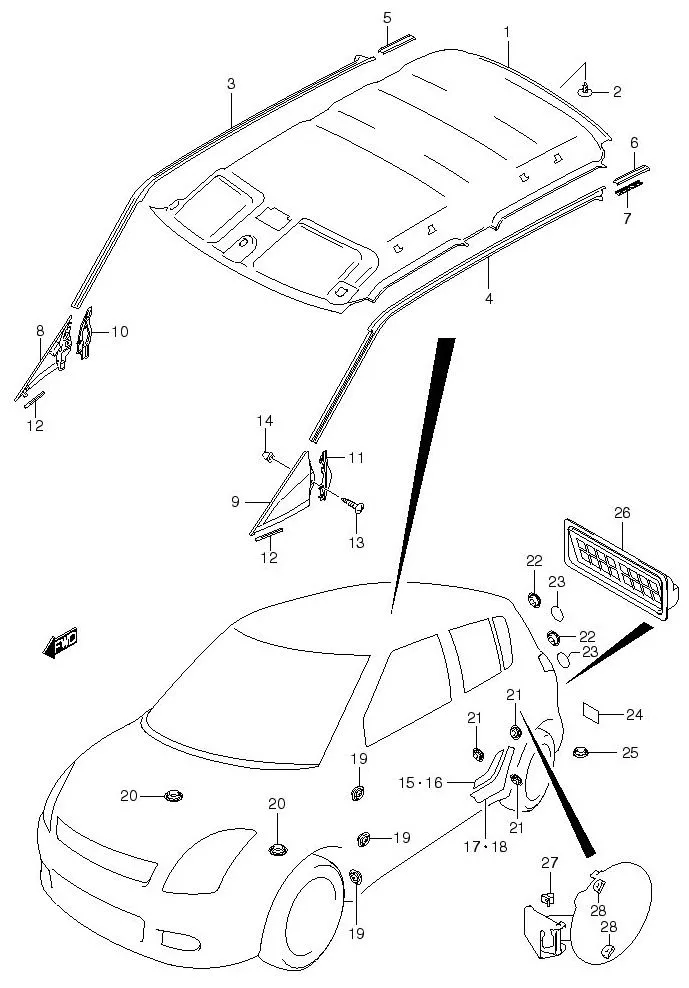

FIG.97 ROOF LINING/ROOF MOLDING

FIG.97 ROOF LINING/ROOF MOLDING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 78110-63J10-6GS		 LINING, ROOF (GRAY) 1 -
2 09409M06L02-6GS
SUB: 09409M06326-6GS		 CLIP (GRAY) 3 Rp5.500
3 84611-63J02-000 WEATHERSTRIP, ROOF SIDE RH 1 Rp1.170.000
4 84621-63J02-000 WEATHERSTRIP, ROOF SIDE LH 1 Rp1.170.000
5 78131-63J00-000 MOLDING, ROOF RH 1 Rp82.500
6 78141-63J00-000 MOLDING, ROOF LH 1 Rp82.500
7 78150-63J11-000 CLIP, ROOF MOLDING 2 Rp121.000
8 77181-63J20-0CE GARNISH, FRONT PILLAR RH (BLACK) 1 Rp456.000
9 77191-63J20-0CE GARNISH, FRONT PILLAR LH (BLACK) 1 Rp435.000
10 77182-63J10-000 SEAL, FR PILLAR GARNISH RH 1 Rp222.000
11 77192-63J10-000 SEAL, FR PILLAR GARNISH LH 1 Rp236.500
12 77183-63J00-000 CUSHION, FR PILLAR GARNISH 2 Rp32.000
13 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
14 09148-05044-000 NUT 2 Rp18.000
15 83935-63J10-000 PROTECTOR, RR DOOR OUTER LWR RH 1 Rp170.000
16 83936-63J10-000 PROTECTOR, RR DOOR OUTER LWR LH 1 Rp221.000
17 77131-63J10-000 PROTECTOR, SIDE SILL RR RH 1 Rp295.000
18 77132-63J10-000 PROTECTOR, SIDE SILL RR LH 1 Rp295.000
19 09250-17001-000
SUB: 09250B17001N000		 CAP FR PILLAR OUTER (OD:25.5) 6 Rp6.500
20 72397-58J00-000 CAP, DASH LOWER 2 Rp39.000
21 09250-15012-000
SUB: 77111-63J00-000		 CAP, RR WHL HOUSE (OD:40) 6 Rp5.000
22 09250-10016-000
SUB: 09250B10016N000		 CAP, RR COMB OUTER (OD:16.2) 6 Rp14.000
23 DISCONTINUE
SUB: 77191M76F00-000		 FILM, BACK DOOR CUSHION 4 -
24 77151-82000-000
SUB: 77151B82000N000		 FILM, TAIL END MBR 2 Rp7.000
25 09250-30002-000
SUB: 09250-30008-000		 CAP, TAIL END MBR (OD:40) 2 Rp5.500
26 77330M63J00-000 OUTLET, VENTILATOR 1 Rp118.000
27 77121-63J00-000 SPRING, FUEL LID 1 Rp49.500
28 77116M60B00-000
SUB: 77116-60B20-000		 CUSHION, FUEL LID 2 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
