SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

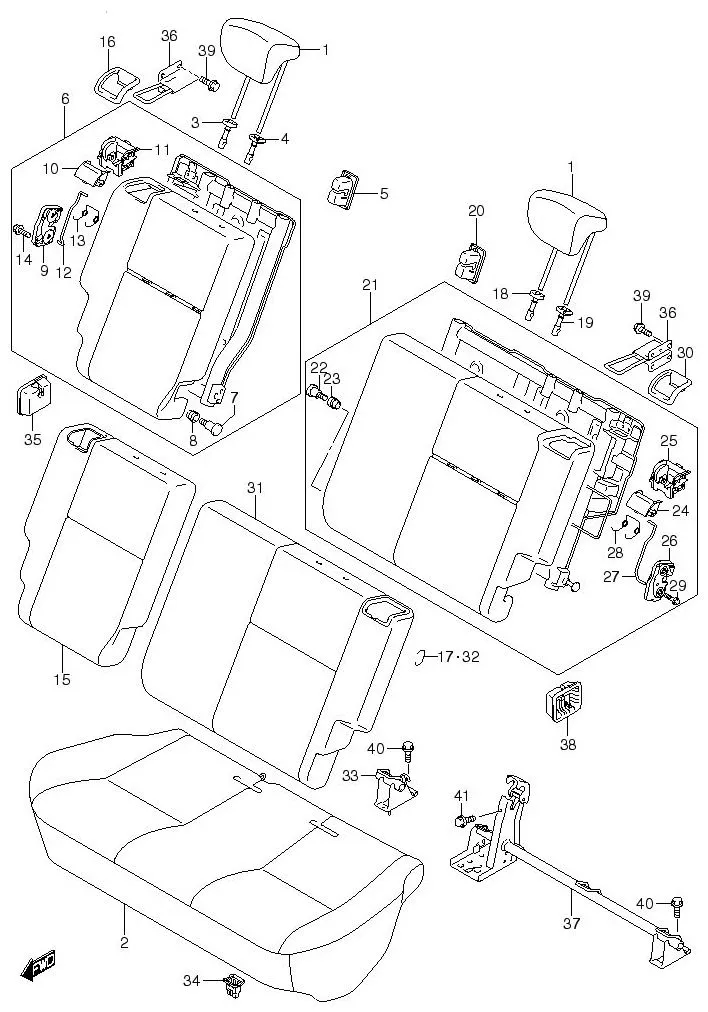

FIG.112 REAR SEAT

FIG.112 REAR SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 86401-66J10-NL5		 HEADRESTRAINT 2 -
2 DISCONTINUE
SUB: 87101-73K70-EUF		 CUSHION ASSY, RR 1 -
3 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT 1 -
4 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT 1 -
5 87225-53JB0-P4Z
SUB: 87225-53JA0-P4Z		 COVER, TETHER ANCHOR 1 Rp87.500
6 DISCONTINUE
SUB: 87305-73K00-P4Z		 BACK S/ASSY, RR, R 1 -
7 DISCONTINUE
SUB: 87333-73K00-000		 BOLT 1 -
8 DISCONTINUE
SUB: 87334-73K00-000		 BUSH 1 -
9 87480M62J02-000
SUB: 87480-62J00-000		 LOCK ASSY, RR BACK, R 1 Rp396.000
10 87483-80J11-P4Z
SUB: 87483-80J00-P4Z		 KNOB, RR BACK LOCK 1 Rp80.500
11 87484-80J11-000
SUB: 87484-80J01-000		 CASE, RR BACK LOCK 1 Rp177.000
12 87485-79J00-000 WIRE, RR BACK LOSK, R 1 Rp49.500
13 87486-79J00-000 SPRING RR BACK KNOB 1 Rp125.000
14 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
15 DISCONTINUE
SUB: 87380-73K00-EUF		 TRIM, RR BACK, R 1 -
16 87482-80J00-P4Z BEZEL, RR BACK LOCK 1 Rp43.500
17 09387-19001-000
SUB: 09387B19001N000		 RING 3 Rp9.000
18 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT 1 -
19 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT 1 -
20 87225-53JB0-P4Z
SUB: 87225-53JA0-P4Z		 COVER, TETHER ANCHOR 1 Rp87.500
21 DISCONTINUE
SUB: 87306-73K00-P4Z		 BACK S/ASSY, RR, L 1 -
22 DISCONTINUE
SUB: 87333-73K00-000		 BOLT 1 -
23 DISCONTINUE
SUB: 87334-73K00-000		 BUSH 1 -
24 87483-80J11-P4Z
SUB: 87483-80J00-P4Z		 KNOB, RR BACK LOCK 1 Rp80.500
25 87484-80J11-000
SUB: 87484-80J01-000		 CASE, RR BACK LOCK 1 Rp177.000
26 DISCONTINUE
SUB: 87980-62J00-000		 LOCK ASSY, RR BACK, L 1 -
27 87985-79J00-000 WIRE, RR BACK LOSK, L 1 Rp50.500
28 87486-79J00-000 SPRING RR BACK KNOB 1 Rp125.000
29 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
30 87482-80J00-P4Z BEZEL, RR BACK LOCK 1 Rp43.500
31 DISCONTINUE
SUB: 87880-73K00-EUF		 TRIM, RR BACK, L 1 -
32 09387-19001-000
SUB: 09387B19001N000		 RING 3 Rp9.000
33 DISCONTINUE
SUB: 87260-73K00-000		 BRACKET, CHILD ANCHORAGE 1 -
34 87460-76G11-000
SUB: 87460-76G10-000		 HOOK 2 Rp39.000
35 DISCONTINUE
SUB: 87491-73K00-P4Z		 COVER, HINGE, R 1 -
36 DISCONTINUE
SUB: 87870-62J10-000		 STRIKER, RR BACK 2 -
37 DISCONTINUE
SUB: 87950-73K00-000		 HINGE, RR CENTER 1 -
38 DISCONTINUE
SUB: 87991-73K00-P4Z		 COVER, HINGE, L 1 -
39 01551-0820A-000 BOLT, STRIKER 6 Rp17.500
40 01551-1025A-000 BOLT, CHILD ANCHORAGE 4 Rp29.000
41 02162-0612A-000 BOLT, HINGE COVER 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
