SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

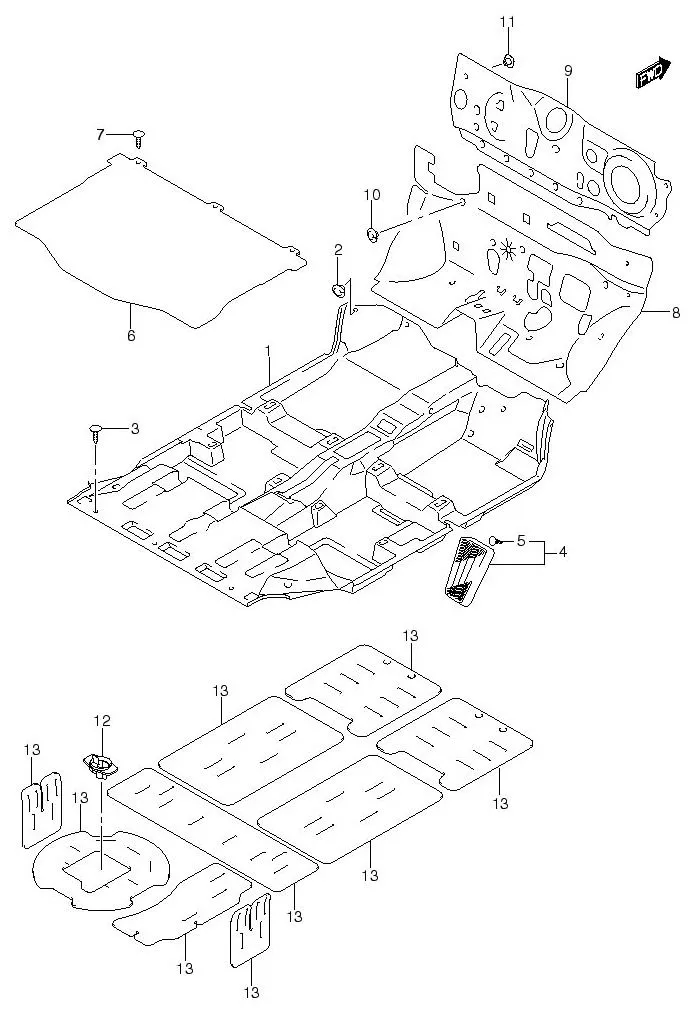

FIG.92 FLOOR CARPET

FIG.92 FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 75110-73K00-R3F		 CARPET, FLOOR (BLACK) 1 - MT
1-2 DISCONTINUE
SUB: 75110-73K20-R3F		 CARPET, FLOOR (BLACK) 1 - AT
2 09148-05037-000 CLIP 2 Rp18.000
3 09409-10302-P4Z CLIP (GRAY) 5 Rp19.500
4 75441-80J01-000 PEDAL, FOOTREST 1 Rp122.000 AT
5 DISCONTINUE
SUB: 09409-08340-000		 CLIP 1 - AT
6 75130-73K00-R3F CARPET, LUGGAGE FLOOR (BLACK) 1 Rp1.441.000
7 09409-10302-P4Z CLIP (GRAY) 4 Rp19.500
8 DISCONTINUE
SUB: 75220-73K00-000		 SILENCER, DASH PANEL 1 -
9 DISCONTINUE
SUB: 75280-63J00-000		 SILENCER, DASH OUTER 1 -
10 09148-05037-000 CLIP 5 Rp18.000
11 09148-05037-000 CLIP 2 Rp18.000
12 75450-60G00-000 HOLDER, SPARE TIRE 1 Rp147.000
13 99611-60A01-000 SHEET, SILENCER (800X1000X3) 0 Rp1.210.000 CUT AS REQUIRED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
