SWIFT RS415 CKD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT HOOD PANELFIG.80 FRONT FENDERFIG.81 FRONT BODY PANELFIG.82 FLOOR PANELFIG.83 SIDE BODY PANELFIG.84 ROOF PANELFIG.85 FRONT BUMPERFIG.86 REAR BUMPERFIG.87 INSTRUMENT PANELFIG.88 VENTILATORFIG.89 HEATERFIG.90 HEATER CONTROLFIG.91 CONSOLE BOXFIG.92 FLOOR CARPETFIG.93 INTERIOR TRIMFIG.94 COVER/CAPFIG.95 FUEL LID OPENERFIG.96 ROOF SIDE PADFIG.97 ROOF LINING/ROOF MOLDINGFIG.98 SPLASH GUARDFIG.99 EMBLEMFIG.100 WINDSHIELDFIG.101 FRONT DOOR PANELFIG.102 FRONT DOOR REGURALATORFIG.103 FRONT DOOR LOCKFIG.104 REAR DOOR PANELFIG.105 REAR DOOR REGULATORFIG.106 REAR DOOR LOCKFIG.107 BACK DOOR PANELFIG.108 BACK DOOR LOCKFIG.109 MIRROR/SUNVISORFIG.110 SEAT BELTFIG.111 FRONT SEATFIG.112 REAR SEATFIG.113 FUEL TANKFIG.114 TOOLFIG.115 AIR CONDITIONERFIG.116 COMPRESSOR

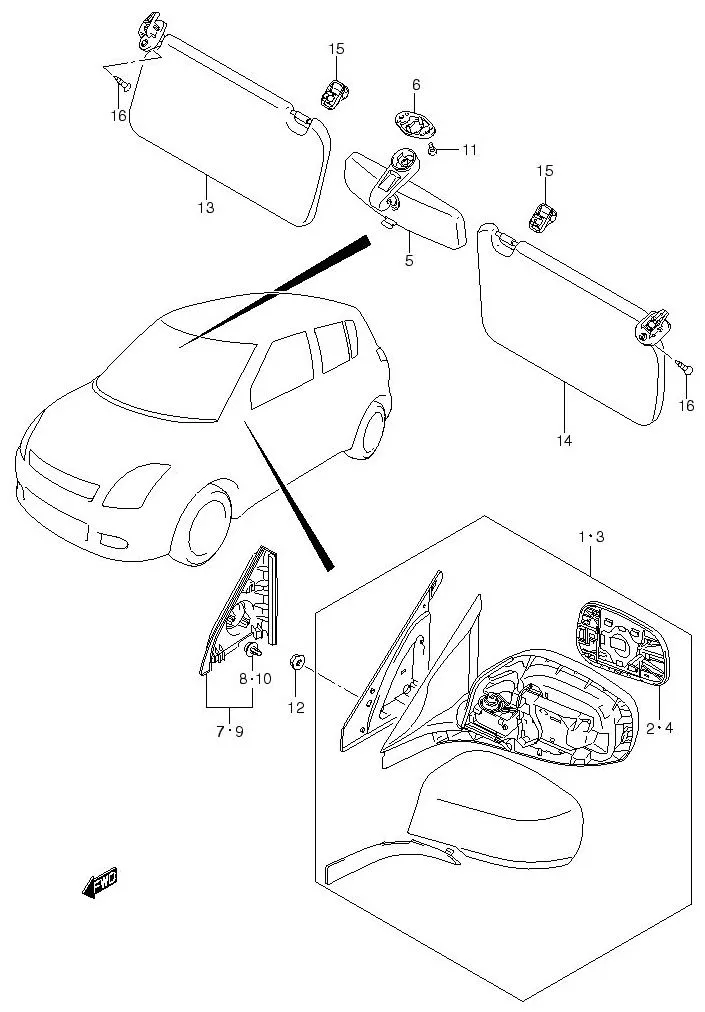

FIG.109 MIRROR/SUNVISOR

FIG.109 MIRROR/SUNVISOR
No No. Part Description Qty Price Per Pcs Remarks
1-Jan 84701-63JA0-ZBD MIRROR ASSY, OUT RR VIEW RH (BLACK) 1 -
1-Mar 84702-63JA0-ZBD MIRROR ASSY, OUT RR VIEW LH (BLACK) 1 -
2-Jan DISCONTINUE
SUB: 84701-63JA0-ZCT		 MIRROR ASSY, OUT RR VIEW RH (BLUE) 1 -
2 84730-63JA1-000 MIRROR, OUT REAR VIEW RH 1 Rp486.000
2-Mar DISCONTINUE
SUB: 84702-63JA0-ZCT		 MIRROR ASSY, OUT RR VIEW LH (BLUE) 1 -
3-Jan DISCONTINUE
SUB: 84701-63JA0-ZCW		 MIRROR ASSY, OUT RR VIEW RH (BLUE) 1 -
3-Mar DISCONTINUE
SUB: 84702-63JA0-ZCW		 MIRROR ASSY, OUT RR VIEW LH (BLUE) 1 -
4 84740-63JA1-000 MIRROR, OUT REAR VIEW LH 1 Rp500.500
4-Mar 84702-63JA0-ZKB MIRROR ASSY, OUT RR VIEW LH (RED) 1 -
4-Jan 84701-63JA0-ZKB MIRROR ASSY, OUT RR VIEW RH (RED) 1 -
5-Jan 84701-63JA0-ZXA MIRROR ASSY, OUT RR VIEW RH (LOCAL COLOR) 1 - PAINT TO MATCH
5-Mar 84702-63JA0-ZXA MIRROR ASSY, OUT RR VIEW LH (LOCAL COLOR) 1 - PAINT TO MATCH
5 84770-63J00-000 MIRROR ASSY, INSIDE RR VIEW 1 Rp776.500
6-Mar 84702-63JA0-Z2S MIRROR ASSY, OUT RR VIEW LH (SILVER) 1 Rp3.172.000
6 84781-63J00-000 BASE, INSIDE MIRROR 1 Rp157.500
6-Jan 84701-63JA0-Z2S MIRROR ASSY, OUT RR VIEW RH (SILVER) 1 Rp3.172.000
7 84750-63J00-5PK GARNISH, RH (BLACK) 1 Rp188.000
8 09409-10327-000
SUB: 09409B10312N000		 CLIP 1 Rp5.000
9 84790-63J00-5PK GARNISH, LH (BLACK) 1 Rp188.000
10 09409-10327-000
SUB: 09409B10312N000		 CLIP 1 Rp5.000
11 02142-0616A-000
SUB: 02142B0616AN000		 SCREW 2 Rp3.000
12 08316-1006A-000
SUB: 08316B1006AN000		 NUT 6 Rp2.000
13 84801-63J13-J0T
SUB: 84801-63J11-J0T		 SUNVISOR ASSY, RH (GRAY) 1 Rp865.500
14 DISCONTINUE
SUB: 84802-63J21-J0T		 SUNVISOR ASSY, LH (GRAY) 1 -
15 84851-77K00-6GS
SUB: 84851-65D00-6GS		 HOLDER, SUNVISOR (GRAY) 2 Rp47.500
16 09139-05061-000 SCREW 2 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
